In a typical home network, connect the router first, with its WAN/Internet port facing the modem, and place the network switch downstream to add more Ethernet ports. This arrangement lets the router handle DHCP, NAT, and firewall rules, while the switch simply extends wired connectivity. If you already have a managed switch, you can place it after the router to segment VLANs.
Understanding the Roles: Router vs Switch
In any home network, two devices perform complementary but distinct duties: the router handles the path from the Internet to your local devices, assigns IP addresses, and enforces security rules, while the switch simply expands the number of wired ports and moves data between devices on the same local network. A solid mental model is to think of the router as the gatekeeper and the switch as the connector. The router performs Network Address Translation (NAT), DHCP, firewalling, and often Wi‑Fi, while the switch operates mainly at Layer 2, forwarding frames using MAC addresses and providing more ports for wired devices. Understanding these roles helps you decide router before or after switch in real-world setups.
- DHCP and NAT are typically handled by the router. The switch, whether unmanaged or managed, does not normally assign IPs. - A basic home topology places the router at the network edge, connecting to the modem, with the switch downstream to grow port capacity. - If you introduce a second router or a managed switch, you’ll need to adjust DHCP scope, NAT behavior, and possibly VLANs to avoid conflicts and maintain security.

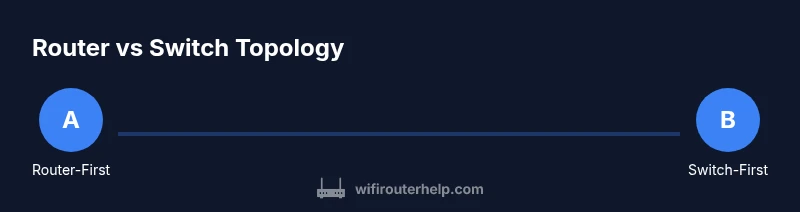

This block establishes why most homeowners benefit from a router-first topology, while acknowledging cases where a switch in front of the router can be useful for special VLAN or security requirements. The core idea is that the router controls access to the Internet and internal addressing, while the switch simply extends wired reach.
wordCountProfile
Tools & Materials
- Router(Any consumer-grade router with at least 4 LAN ports and a configurable WAN/Internet port.)
- Modem(Device from your ISP or a separate modem; ensure compatibility with your router.)
- Switch(Unmanaged or managed, with at least 5 ports; down the line, a managed switch supports VLANs.)
- Ethernet cables (Cat5e/Cat6)(Several cables of varying lengths to suit your space.)
- PC or laptop for configuration(Web browser access to router admin page; have login credentials handy.)
- Network diagram/notebook(Optional but helpful for documenting topology and settings.)
Steps
Estimated time: 45-75 minutes
- 1
Power down and prepare
Shut off and unplug the modem, router, and switch. This reduces the risk of static damage and makes the port connections clear as you reassemble the network. Have your cables ready and ensure you know which device sits at the network edge.
Tip: Label cables if you plan multiple changes to avoid confusion later. - 2
Connect the modem to the router
Plug the modem into its power source, then connect the modem’s Ethernet port to the router’s WAN/Internet port using a Cat5e/Cat6 cable. Ensure the router is powered on after the modem to establish a proper handshake.
Tip: If your modem is in bridge mode or you’re using a separate gateway, follow that device’s specific setup steps. - 3
Connect the router to the switch
Use a LAN port on the router to connect to an uplink port on the switch. This establishes the downstream path for additional wired devices while the router maintains control of IPs and security.
Tip: Prefer a Gigabit port on the router to the switch’s uplink for best performance. - 4
Power up in sequence and verify
Power on the modem, then the router, then the switch. Wait about 60–120 seconds for devices to initialize and links to negotiate. Check LED indicators: WAN/light on router, LAN lights on switch.
Tip: If a device doesn’t show a link, reseat the cable or try a different port. - 5
Configure router basics
Access the router’s admin interface from a connected PC. Confirm DHCP is enabled on the router, NAT is active, and the wireless network (SSID/password) is set. Disable or adjust settings only if you introduce another routing device later.
Tip: Reserve IPs for critical devices to prevent DHCP churn. - 6
Set up devices on wired and wireless networks
Connect wired devices to the switch or router as needed. Ensure wireless clients can obtain IPs and access the Internet. Run speed tests from multiple endpoints to verify performance.
Tip: Document which devices sit on which VLAN or IP range if you enable advanced features. - 7
Configure switch features if needed
If you’re using a managed switch, create VLANs or set port modes to segregate traffic (e.g., guests, IoT). Ensure VLANs align with your router’s capabilities to avoid misrouting traffic.
Tip: Keep a simple default VLAN for everyday use unless you need segmentation. - 8
Document topology and test
Draw a quick diagram of the topology, note IP ranges, and test a full round of file transfers and streaming to confirm stability. Tweak QoS or firewall rules if necessary to optimize performance.
Tip: Regularly update firmware on both router and switch before major changes.
People Also Ask
What does router before or after switch mean in practical terms?
Practically, it means which device handles Internet access, IP addressing, and security. A typical home setup places the router first (edge device) so it can manage DHCP, NAT, and firewall. The switch then adds more ports downstream for wired devices.
In simple terms, the router is the gatekeeper and the switch is the port extender downstream.
Will placing the switch before the router cause double NAT?
Yes, placing a second router or poorly configured devices can create multiple layers of NAT. If you must place a switch ahead of a router, ensure the downstream router is in bridge mode or disable its DHCP and NAT.
Double NAT can complicate port forwarding and VPNs, so avoid it when possible.
Can I connect a switch to the router’s LAN ports or should I use the WAN port?
Connect the switch to a regular LAN port on the router. The WAN port is intended for Internet access from a modem. Using a LAN-to-LAN connection keeps devices on the router’s subnet and firewall rules intact.
Use a LAN port on the router to link to the switch.
Is there any advantage to putting a managed switch before the router?
Only in specialized setups. A managed switch can segment traffic with VLANs, but you’ll need to carefully coordinate VLAN tagging with the router. For most homes, a router-first approach is simpler and effective.
Only for advanced VLAN configurations.
What changes if I have a PPPoE or IPoE setup from my ISP?
PPPoE/IPoE affects authentication with the modem or gateway. The router still handles DHCP and NAT for your internal network. If you need to bridge, follow your ISP’s instructions to place the gateway into bridge mode and connect the router after it.
ISP encapsulation mostly affects how the modem/gateway talks to the router.
How do I know when I should enable bridge mode on my gateway?
Bridge mode is useful when you want your own router to handle routing, NAT, and firewall. If you see double NAT, port forwarding issues, or your ISP device is acting as a router, bridge mode is a common solution.
Bridge mode lets your router take full control of the network.
Watch Video
What to Remember
- Connect the router at the network edge first, then extend wired reach with a switch.
- DHCP/NAT are router-centric; keep the default behavior unless you add more routers or VLANs.
- A managed switch offers granular control but requires careful alignment with router settings.
- Bridge mode or VPN-aware setups can alter the typical router-before-switch advice.
- Document topology and test performance after changes to ensure reliability.
