How Router and Switch Are Connected: A Practical Guide
Learn how a router connects to a switch to extend your LAN. This guide explains uplinks, topologies, setup steps, and common troubleshooting for reliable wired connectivity.
Router to switch connection is how a network router interfaces with a switch to extend a LAN. It uses an Ethernet uplink from the router to the switch so devices on the LAN can communicate and share Internet access.
What is the Router to Switch Connection
In any home or small office network, the router provides Internet access and assigns local addresses, while the switch expands wired access to more devices. When we answer how router and switch are connected, the core idea is simple: you physically connect a router to a switch using an Ethernet link so the switch can distribute network access to multiple devices. This connection creates a single, cohesive LAN that includes wired clients, printers, smart home hubs, and network storage. The router manages Internet connectivity, DHCP, and NAT, while the switch does not perform those tasks but provides a larger number of ports for reliable wired connectivity. Whether you have a basic two-device setup or a busy home network with many wired devices, the router-switch connection is the backbone that enables reliable, high-speed communication across devices on the LAN.
- In practice, think of the router as the gateway to the Internet and the switch as a distribution hub for wired devices.

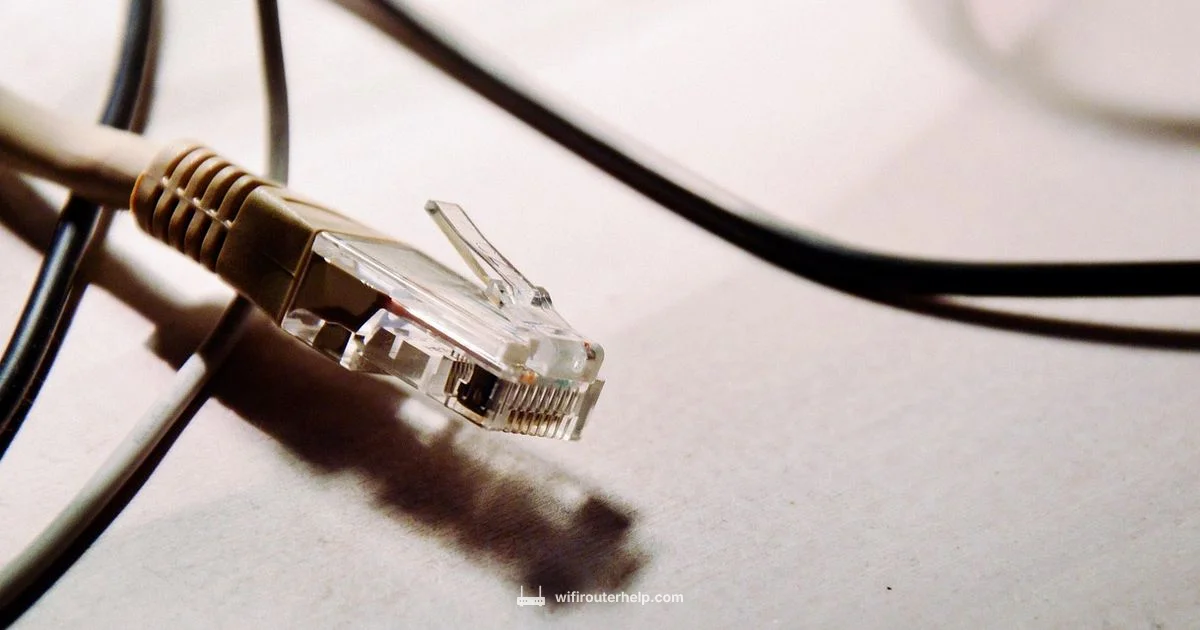

- The connection is typically made with a standard Ethernet cable from a router LAN port to a switch port.
- This arrangement keeps WiFi separate (handled by the router) while extending wired capacity through the switch.
Key takeaway: the router-switch link is what makes a scalable, stable LAN possible in most homes and small offices.
How the Ethernet uplink works
An Ethernet uplink is the path that carries traffic from the router into the switch. On most devices, this is a LAN port on the router connected to a switch port labeled LAN or uplink. Modern hardware typically supports gigabit Ethernet and auto negotiation, allowing the two devices to agree on the best speed automatically. If you’re using an unmanaged switch, connect the router LAN port to any switch port and you’re done; auto MDI X helps if the cables are crossed or if a nonstandard cable is used. With a managed switch, you can create VLANs, assign traffic priorities via QoS, and monitor port activity to optimize performance. The big picture is simple: the router is the Internet gateway and the switch is the distribution layer inside the LAN, expanding wired access for more devices.
- Uplink ports are designed to maximize throughput and minimize bottlenecks for connected devices.
- Auto negotiation allows devices to select the strongest compatible speed and duplex mode automatically.
- For most home networks, a standard gigabit Ethernet link provides ample headroom for everyday tasks and media streaming.
People Also Ask
Do I need a dedicated uplink port on the switch?
Not always. On most modern switches, any port can serve as the uplink, especially with auto-MDIX. A dedicated uplink port can simplify early troubleshooting on older devices, but it is not a strict requirement for a working connection.
In most setups you can use any port on the switch. Auto-MDIX helps, so you don’t have to worry about port orientation.
Can I connect a router to a switch if the router has only one LAN port?
Yes. Connect the router’s LAN port to the switch, then attach devices to the switch. The router will continue to provide Internet access and DHCP services for the LAN.
Yes. Use the router’s LAN port to connect to the switch, and plug wired devices into the switch.
Will a switch fix WiFi coverage issues?
No. A switch extends wired connectivity. To improve WiFi, consider a better access point or a mesh system, or place the router for optimal coverage.
No, a switch only handles wired connections; for wireless problems you need better WiFi hardware or a mesh system.
Should DHCP be enabled on the router and the switch?
DHCP should generally be enabled on the router. A basic switch does not assign IP addresses. If you’re using a managed switch with DHCP features, disable router DHCP or ensure there’s no conflict.
DHCP should be on the router. The switch usually doesn't assign IPs unless it’s a managed type with DHCP features.
What is the difference between a router and a switch?
A router connects your network to the Internet and assigns IP addresses; a switch distributes Ethernet connections to devices within the LAN. The router handles routing and network services; the switch expands port availability.
A router links to the Internet and assigns addresses; a switch just links devices inside the LAN.
When would I use VLANs in a home network?
VLANs are useful when you want to separate guest traffic from your main network or isolate sensitive devices. They require a managed switch and careful router configuration to route between VLANs.
VLANs help keep guests separate from your main network, but you’ll need a managed switch and proper setup.
What to Remember
- Connect router LAN to switch port to extend LAN
- Use unmanaged switches for simple setups; switch to managed for VLANs
- DHCP should remain on the router; the switch does not issue IP addresses
- Auto negotiation and auto-MDIX simplify setup and reduce errors
- Test connections with a simple wired device first to verify connectivity
- Keep cables neat and labeled to simplify future changes
