Access Point WiFi: Setup, Optimize, and Troubleshoot
Learn how to expand your home WiFi with an access point wifi. This step-by-step guide covers placement, wired backhaul, AP mode configuration, security, and troubleshooting for reliable coverage.
Goal: extend your home network with an access point wifi by creating a reliable wired backhaul, placing the AP strategically, and configuring it correctly. Key steps include selecting a central location, connecting via Ethernet, setting the AP to Access Point mode, disabling DHCP on the AP, using a unique, strong SSID with WPA3 security, and testing coverage across rooms.
What is an access point wifi and why use one
According to WiFi Router Help, an access point wifi is a dedicated device that creates a new Wi‑Fi network by connecting to your main router through a wired Ethernet backhaul. The most stable way to grow wireless coverage is with a wired backhaul, not wireless extenders. An access point wifi helps eliminate dead zones, improves reliability, and supports higher device counts with consistent speeds. Place the AP where the signal begins to fade, run an Ethernet cable back to the router or switch, and configure the AP to operate as an access point rather than a router. This keeps the network simple for clients and avoids double NAT issues. You’ll typically manage the AP through a browser or companion app, setting the SSID, security, and channel. For 2026 guidance, prioritize a wired backhaul and up‑to‑date security standards like WPA3. The WiFi Router Help team emphasizes testing and fine‑tuning after installation. This is the core concept behind improving coverage with an access point wifi.
Core concepts: Ethernet backhaul, bridging vs NAT, and IP addressing
An access point wifi relies on a wired Ethernet backhaul to the main router, which keeps the backhaul stable and minimizes interference. When you configure an AP, you must decide whether to bridge it or enable a separate network. In most home deployments, bridging (AP mode) is preferred to avoid double NAT and simplify device connectivity. DHCP should be disabled on the AP so the main router assigns IP addresses. You’ll typically keep the AP on the same IP range as your router but assign a static management IP to reach the device easily. Channel management is crucial: use 2.4 GHz for coverage through walls and 5 GHz for higher speeds in close-range. If you’re unsure, start with auto channels, then audit interference and switch manually if needed. The overarching goal is predictable performance and easier administration for your home network.
Planning placement and coverage: practical survey and timing
Effective placement is the difference between a good and great access point wifi deployment. Begin with a site survey: mark where coverage dips, note wall thickness, and map furniture that can obstruct signals. Aim for a central, elevated position away from metal appliances and large microwaves. Avoid placing the AP behind obstacles that block 2.4 GHz signals, such as dense walls or large metal cabinets. For multi‑story homes, consider how signals travel upstairs and whether you need additional APs to fill dead zones. If you’re wiring for speed, use Cat6 or higher and route cables along walls or attic spaces to minimize risk. In WiFi Router Help’s guidance, a wired backhaul combined with careful placement yields the most reliable results for access point wifi deployments in 2026.
Deployment patterns: single AP, multiple APs, and mesh considerations
Single access point wifi can dramatically improve coverage in a small apartment or single-floor home, especially when placed at the center. For larger homes, multiple APs provide seamless roaming and stable speeds, often managed via a controller or a simple stand‑alone setup. If you already have a mesh system, you can integrate APs to extend the same SSID, but ensure backhaul capacity matches demand. Standalone APs require manual setup for each device and coordination of channels to avoid interference. Mesh networks are easier for non‑technical users but can introduce a slight overhead; wired backhaul between APs is still ideal when possible. In any case, consistency in SSID, channel assignment, and security helps preserve performance across the entire home network.
Security, firmware, and ongoing maintenance
Security should be considered from day one. Always use a strong admin password and enable WPA3 when available. Keep firmware up to date to mitigate vulnerabilities and improve stability. Regularly review connected devices, monitor for rogue APs, and back up configurations after changes. If you deploy guest networks or VLANs, segregate traffic to protect sensitive devices. Regular maintenance includes rechecking channel usage, testing speeds, and updating credentials on a schedule. WiFi Router Help emphasizes keeping devices current and performing periodic performance checks to maintain a robust access point wifi setup.
Troubleshooting common issues and optimizing performance
If the AP isn’t visible, verify Ethernet connectivity, power status, and that the AP is in AP mode with DHCP disabled. If devices don’t connect or speeds drop, confirm the AP’s IP address in the router’s client list, re-check the SSID and password, and ensure the AP’s firmware is current. Interference can cause slowdowns; switch channels to the least congested one, and limit overcrowding of the 2.4 GHz band by prioritizing 5 GHz where appropriate. For guest networks or IoT devices, consider isolating traffic with separate SSIDs or VLANs. The goal is stable performance during daily use and predictable speeds across rooms.
Hardware choices, capacity, and long‑term considerations
Selecting the right access point wifi depends on coverage needs, client density, and your budget. Look for devices with dual‑band support (2.4/5 GHz), sufficient transmit power, and PoE support if you want fewer wall adapters. For larger spaces, plan for multiple APs with wired backhaul and consistent controller management. When budgeting, consider price ranges for entry‑level vs enterprise‑grade APs, as you may scale up gradually. Finally, document configurations, keep a firmware update routine, and track performance metrics over time to guide future upgrades.
Tools & Materials
- Ethernet cable (Cat5e or better)(At least 1 meter; longer runs for distant rooms)
- Access point wifi device(Ensure it supports your preferred bands and management features)
- Power source for AP(PoE injector/switch or wall/AC adapter depending on AP model)
- Computer or smartphone for configuration(Browser-based admin interface or companion app)
- Cable management accessories(Velcro ties or clips to keep runs tidy)
- Optional: PoE switch(Helpful for powering multiple APs from a single location)

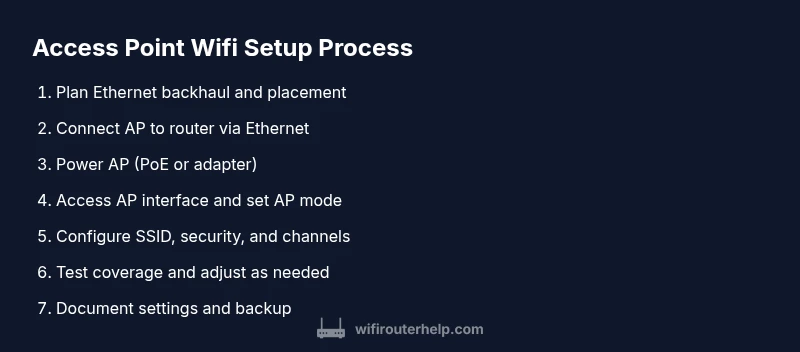

Steps
Estimated time: 60-90 minutes
- 1
Plan Ethernet backhaul and placement
Survey the home to identify central, elevated spots with minimal obstructions. Decide where the router connects to the AP via Ethernet, aiming for a direct line of sight where possible and keeping cable runs reasonable.
Tip: Use a rough floor plan to estimate cable lengths before buying adapters or switches. - 2
Physically connect the AP to the network
Run an Ethernet cable from the router or PoE switch to the AP. Keep cables away from heat sources and foot traffic to avoid wear and accidental unplugging.
Tip: Label each end of the cable for easier future maintenance. - 3
Power the AP
Power the AP using PoE if your device and infrastructure support it; otherwise use the included wall or desk adapter. Verify the LED indicates proper power and link status.
Tip: Keep power adapters and PoE equipment away from water and heat sources. - 4
Access the AP’s admin interface
From a connected device, open the AP’s IP address in a browser or use its app. If you don’t know the IP, check the router’s connected devices list or use a network scanner.
Tip: Change default credentials immediately and note the AP’s management IP for future access. - 5
Set AP mode and disable DHCP
Configure the device to “Access Point” or “Bridge” mode. Disable the AP’s DHCP server so the main router handles IP assignments.
Tip: Assign a static management IP within the router’s range to simplify access later. - 6
Configure SSID, security, and channels
Create or join an SSID, enable WPA3 if available, and consider separate networks for guests. Set the 2.4 GHz and 5 GHz channels to optimize performance and minimize interference.
Tip: If you have multiple APs, harmonize channels to reduce overlap and use band steering if supported. - 7
Test coverage and tune
Walk the home with devices to test signal strength and speeds. Adjust placement or channels based on real‑world performance and retest.
Tip: Run multiple tests at different times of day to account for interference changes. - 8
Document and backup settings
Save the AP configuration, export the settings file, and note the IP, SSID, and password. Keep a record for future firmware updates and changes.
Tip: Store backups in a known location and label the firmware version.
People Also Ask
What is the difference between an access point and a range extender?
An access point creates a new wireless network by connecting to the router with Ethernet, delivering stable, high‑throughput coverage. A range extender repeats the existing wireless signal, which can reduce speed and introduce latency. APs are generally preferred for performance and reliability.
An access point uses a wired connection to create a new network, while a range extender wirelessly repeats the existing network, often lowering speeds.
Do I need PoE to use an access point wifi?
PoE is only necessary if your AP supports it and you want to minimize power cabling. Many APs work with standard wall adapters, so choose based on your setup and budget.
PoE is optional; use it if you want fewer power cables and have PoE equipment, otherwise a regular adapter works fine.
Can I convert an old router into an access point wifi?
Yes, many consumer routers can be configured for AP mode. It may lack some features found in dedicated APs, but it’s a viable upgrade path for small spaces.
Yes, you can often use an old router as an AP, though it might not be as capable as a dedicated AP.
How can I reduce interference and improve performance?
Place the AP on clear channels, prefer 5 GHz where possible, and limit the number of overlapping networks. If needed, separate SSIDs for main and guest networks can help manage traffic.
Use the least congested channel, especially on 2.4 GHz, and consider 5 GHz for high‑speed devices; separate guest networks if needed.
Should I enable a guest network on an AP?
Enabling a guest network isolates guest devices from your main network, improving security. If you have IoT devices, consider a separate VLAN or network segment.
A guest network helps keep visitors off your primary network and can improve security when configured properly.
What should I consider when purchasing an access point wifi?
Consider dual‑band support, PoE options, number of clients, and management features. For larger homes, plan for multiple APs with wired backhaul for best roaming.
Think about bands, power options, and how many devices you’ll support; multiple APs with wired backhaul are ideal for big homes.
Watch Video
What to Remember
- Plan placement before wiring to maximize coverage
- Use wired backhaul for best stability
- Disable DHCP on the AP and centralize IP management
- Secure networks with WPA3 and update firmware regularly
- Test coverage and adjust channels to minimize interference
