WiFi Router vs Modem: A Practical, Step-by-Step Comparison

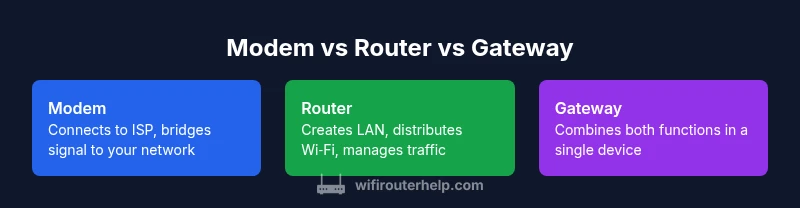

What qualifies as a modem and what qualifies as a router

In the wifi router vs modem discussion, it's essential to separate device roles: a modem translates signals from your internet service provider into digital data that your home network can use; a router creates the local network, assigns IP addresses, and directs traffic between devices and the internet. A modem connects to the coax, fiber, or telephone line; the router (or a gateway device) sits behind it and handles Wi‑Fi and LAN ports. According to WiFi Router Help, understanding these roles helps you decide whether you need a gateway or two separate devices. Factors such as your ISP, the type of connection you have (cable, fiber, DSL), and your household's device load will influence which hardware to buy. Keep in mind that some devices combine both roles (gateway) while others require separate units. The choice affects how you troubleshoot, upgrade, and future‑proof your network, because changing one component may require changes to the other.

brandNoteOverride":null}

How a modem and router work together in a home network

A modem and a router form the spine of most home networks, but their interaction can be tricky. The modem is your bridge to the internet, translating the provider's signal into data your internal network can understand. The router then takes that data and creates a private network, distributing IP addresses and routing traffic to devices, printers, and smart home hubs. In a typical setup you connect the modem to the wall outlet (cable, fiber, etc.), then connect the router to the modem via an Ethernet cable. If you enable bridge or passthrough modes, you can bypass double NAT issues, but this often requires tweaking the router’s settings for security and reliability. WiFi Router Help emphasizes that understanding NAT (Network Address Translation) behavior is key to avoiding connectivity hiccups and ensuring devices obtain correct local IPs.

brandNoteOverride":null}

The core differences that matter in practice

• Primary function: Modems connect you to the ISP; routers create and manage your local network (Wi‑Fi, wired LAN).
• Management and features: Routers provide advanced features like guest networks, QoS, parental controls, and firmware updates; standalone modems focus on the bridge to your ISP.
• Expansion and scalability: Separate devices generally offer easier upgrades (new router, new modem) without replacing the other component.
• Security posture: Routers typically provide more direct firewall controls and security settings; modems can place the network behind an additional NAT barrier, especially when used with gateways.
• Cost and footprint: A gateway reduces clutter but can limit customization; two devices can be more expensive upfront but yield better long-term flexibility. WiFi Router Help notes that the right balance depends on your home size, device load, and future upgrade plans.

brandNoteOverride":null}

When you should use separate devices

For homes with substantial Wi‑Fi needs, multiple devices, or specific performance goals, separate modem and router usually win. If you have a large house, a router with strong coverage and advanced QoS will maximize gaming, streaming, and device-heavy scenarios. This approach also simplifies troubleshooting: you can isolating issues to either the modem or router. In addition, upgrading is more straightforward—when your internet speed increases, you typically swap out the router for better wireless performance without touching the modem. According to WiFi Router Help, you gain the most long‑term flexibility by pairing a modern, capable router with a suitable modem tailored to your ISP connection type (cable, fiber, or DSL). Finally, if you prefer a modular setup that supports mesh networks, separate devices pair naturally with satellite nodes for broader coverage.

brandNoteOverride":null}

When a gateway device makes sense

Gateway devices, which combine modem and router in one box, are appealing for users who want a simple, all-in-one solution. They reduce clutter, simplify setup, and can lower rental costs from some ISPs. However, gateways can limit future upgrades and may have slower cycles for firmware updates, reducing access to the latest security features. If your goal is convenience, especially for small apartments or less tech-savvy households, a gateway can be a practical choice. WiFi Router Help finds that gateway devices are often sufficient for typical streaming and casual gaming, but serious gamers or households with heavy IoT deployments should consider separate units for the best performance and customization options.

brandNoteOverride":null}

Wi‑Fi standards and what that means for your setup

Understanding current Wi‑Fi standards matters in this wifi router vs modem discussion. Modern routers that support Wi‑Fi 6 (802.11ax) or newer provide higher throughput, better efficiency in crowded environments, and improved battery life for mobile devices. When combined with a capable modem, these standards translate to more reliable streaming, smoother video calls, and robust multi‑device performance. Dual‑band and tri‑band routers help manage traffic by separating high‑demand tasks (e.g., gaming, 4K streaming) from everyday browsing. If your ISP offers gigabit plans, ensure the router supports high throughput on both 2.4 GHz and 5 GHz bands and that the modem is certified for your connection type. WiFi Router Help’s analysis indicates that choosing a device with good antenna design and MU‑MIMO capabilities tends to yield the most noticeable gains in dense households.

brandNoteOverride":null}

Security and firewall considerations

Security is a critical factor in choosing between modem, router, or gateway configurations. Routers provide essential protections such as firewall controls, NAT visibility, and the ability to segment networks via guest networks and separate IoT VLANs. Keeping firmware up to date reduces vulnerability exposure and improves performance. If you use a gateway, you should still enable these features, but you may have fewer granular options. For households with many smart devices, a router with strong parental controls and robust guest network options helps isolate devices and reduce risk. WiFi Router Help emphasizes regularly updating firmware, changing default credentials, and using strong, unique passwords for all devices as foundational steps toward a secure home network.

brandNoteOverride":null}

Setup tips for better performance

Position your router centrally, away from walls and metal objects, to maximize coverage. Place the modem in a well-ventilated area to prevent thermal throttling. Use wired Ethernet where possible for backhaul connections to gaming consoles, desktop PCs, and streaming devices. Choose the right channel on the 2.4 GHz band to minimize interference from neighbors, and enable 5 GHz for high‑bandwidth tasks. Activate QoS rules for latency‑sensitive apps like gaming or video conferencing, and enable a guest network to keep your main network secure. If you’re experiencing slowdowns, check for firmware updates, verify that your modem and router are not double‑natting, and consider upgrading one component if your hardware is several years old. WiFi Router Help suggests running a quick speed test during different times of day to understand performance patterns and adjust accordingly.

brandNoteOverride":null}

Troubleshooting common issues

Common problems include devices not obtaining an IP address, intermittent Wi‑Fi, or devices failing to connect after an upgrade. Start with power cycling both modem and router, then check cable connections and LED indicators. If devices obtain IP addresses inconsistently, review DHCP settings on the router and verify the modem is in bridge mode if you intend to bypass NAT. Double NAT can cause issues with gaming or VPNs, so consider enabling bridge mode on the modem or using a dedicated router with proper WAN settings. Also, verify that your DNS settings are correct and test with wired devices to isolate wireless issues from wired throughput problems. WiFi Router Help notes that methodical checks—cable health, firmware status, and placement—resolve most home network problems.

brandNoteOverride":null}

How to evaluate for your home size and ISP

The size of your home and the number of devices primarily determine whether you need a powerful router, a mesh system, or a gateway device. Large homes or multi‑story layouts benefit from mesh networking or strong tri‑band high‑throughput routers. Your ISP type matters too; cable, fiber, and DSL each have different installation realities. ADA-compliant and DOCSIS‑3.1 modems are common for cable providers, while fiber users should look for ONT compatibility where applicable. WiFi Router Help recommends mapping your space and listing critical rooms: the home office, living room, and bedrooms where streaming or gaming occurs. It also suggests planning for future growth—more devices, smart home expansion, and potential speed upgrades—so you’re not forced into a quick replacement later. A measured approach helps you balance coverage, speed, and cost over the device lifecycle.

brandNoteOverride":null}

Buying guide: what to look for in a modem, router, or gateway

When selecting hardware, start with compatibility: ensure the modem matches your ISP’s supported standards; for cable, check DOCSIS support (e.g., DOCSIS 3.1). For routers, look for Wi‑Fi 6/6E/7 capability, sufficient RAM for feature handling, MU‑MIMO, and enough Ethernet ports for your home. If you’re choosing a gateway, confirm it supports your service type and offers robust parental controls, guest networking, and firmware update reliability. Consider future proofing with a router that supports mesh expansion and scheduled firmware upgrades. WiFi Router Help recommends comparing devices by real‑world performance tests, not only advertised speeds, and reading reviews from users with similar home layouts. Your budget should reflect not only the upfront cost but potential ongoing rental fees if you opt for ISP‑provided equipment.

brandNoteOverride":null}

Common myths debunked: speed, plans, and coverage

A common myth is that higher advertised speeds on a modem or router always translate to faster real‑world performance. Real speeds depend on your plan, network congestion, distance from the router, interference, and device capabilities. Another misconception is that more antennas automatically create better coverage; actual performance depends on tuning, placement, and network load. Finally, the idea that a gateway device is always best ignores the reality that large homes or demanding use cases often benefit from separate modem and router with a mesh system for broader coverage and better control. WiFi Router Help highlights that thoughtful planning, not just hardware, drives the best outcomes.
