Router Sled Guide: Setup, Design & Tips

What is a router sled?

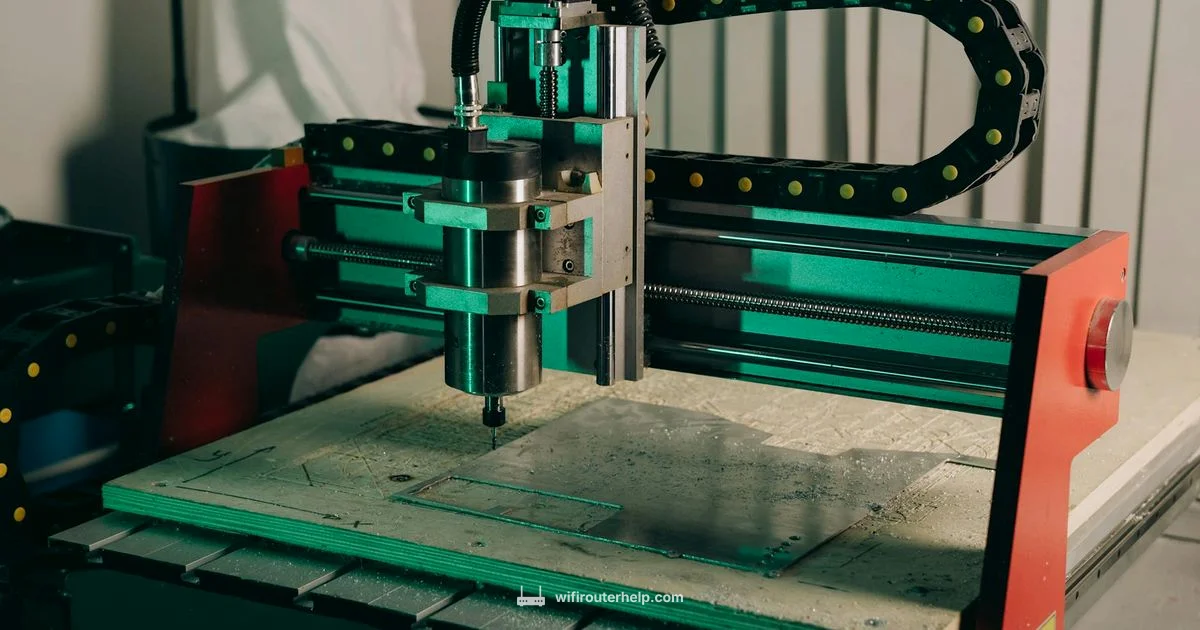

A router sled is a movable platform that carries a router on rails, turning a handheld tool into a gantry style CNC router. This setup lets the router travel precisely along X and Y axes, enabling repeatable cuts on wood, plastics, and soft metals when paired with proper feeds and speeds. The concept has roots in hobbyist CNC projects, where builders seek a simpler, lower‑cost alternative to full industrial CNC machines. For DIY enthusiasts, a router sled provides a practical way to produce signs, carvings, joinery, and relief work with consistent results. The term is most often used in woodworking and small‑shop CNC contexts, but the underlying physics applies to any process that requires controlled linear motion of a cutting tool.

Anatomy of a router sled

A router sled comprises several core parts working together. The frame provides rigidity and resists flex during cuts. Rails guide the moving carriage, which holds the router itself and translates the motor’s motion into precise linear travel. The drive system converts rotational motion into linear movement and can be based on a timing belt, a lead screw, or a ball screw, depending on budget and precision needs. Additional components include limit switches for safe travel, a dust collection interface to keep debris away from bearings, a squareness gauge to maintain accuracy, and mounting hardware to attach different router models. In simple builds, users may mount a compact router on a sled attached to plywood frames; in more robust setups, aluminum extrusion and linear rails are common for improved rigidity and smoother motion.

Design options and variations

There is no one‑size‑fits‑all router sled. Open framed designs with lightweight components work well for hobby projects, while enclosed or semi‑rigid frames improve rigidity for heavier cuts. Common variations include:

• Drive method: belt drives are inexpensive and quiet but can flex under heavy loads; lead screws or ball screws offer higher precision at the cost of speed and complexity.
• Rail choice: smooth rods and bearings are affordable; hardened steel rails and linear guideways reduce wear and improve repeatability.
• Frame material: plywood or MDF is cheap and easy to work with; aluminum extrusion provides rigidity and modularity; steel frames add mass and durability. Each option has trade‑offs between cost, weight, and accuracy.

Setup steps: from alignment to zeroing

Begin with a dry fit to ensure all pieces align without binding. Check the rails for straightness and ensure the carriage moves smoothly by hand before powering anything. Attach a router and tighten mounts firmly to avoid vibration. Calibrate the travel axes by marking known distances and confirming the carriage reaches true coordinates. Establish a consistent zero point (home) across the X and Y axes, then run a test pocket or simple pocketing operation to verify alignment and squareness before committing to a larger project.

Calibration, testing, and tuning

Calibration ensures your machine executes cuts at the intended dimensions. Verify squareness by comparing board corners or using a precision square against a reference edge. Measure cut depths with test pieces and adjust the rail mounting or carriage height as needed. If you notice drift, check fasteners for snugness, inspect bearings for wear, and re‑check belt tension or screw pitch. Periodic checks of belt tension, rail cleanliness, and dust collection effectiveness help maintain accuracy over time.

Safety, maintenance, and best practices

Always power down before adjustments and wear eye and hearing protection during operation. Use dust extraction during milling to reduce debris and improve visibility. Keep the work area clear of loose hardware and disconnect power when changing routers. Common maintenance tasks include cleaning rails and bearings, re‑lubricating moving parts, and inspecting the mounting to prevent chatter. Establish a routine for checking squareness, re‑zeroing, and verifying spindle RPM to maintain consistent results across projects.

Practical applications and project ideas

Router sleds enable a range of affordable CNC tasks in a small shop. Projects include sign making with carved letters, decorative panels, relief engravings, pocket milling for joinery, and duplication of repeated patterns along a workpiece. Beginners often start by producing simple signs and gradually tackle more intricate relief work as they gain experience. With proper feed rates and cutting strategies, a router sled can rival entry‑level CNC routers for many hobbyist tasks.

Common mistakes and troubleshooting

A frequent pitfall is overconstraining the carriage, which causes binding and inconsistent cuts. Mismatched router weight or incorrect spindle height can result in chatter and poor surface finish. Loose mounting hardware or misaligned rails leads to squareness errors. If you experience excessive heat, reduce feed rate or check for obstructions in the drive mechanism. Regular inspection of fasteners, bearings, and drive components helps prevent recurring issues.

Quick-start ideas for beginners

Start with a lightweight sled built on a plywood frame and basic rods or wheels. Use a small trim router and a simple belt drive for cost efficiency. As you gain confidence, upgrade to aluminum extrusion, add linear rails, and consider a lead screw drive for improved precision. Document measurements and keep a log of settings to reproduce successful results in future projects.
