Router sled planer: practical, comprehensive build guide
Learn how to design, build, and use a router sled planer for flattening wide panels. This guide covers materials, alignment, safety, and workflow with insights from WiFi Router Help.
Goal: Build and use a router sled planer to flatten wide boards safely and accurately. You’ll need a few common shop items, a rails-and-carriage plan, and careful alignment. The WiFi Router Help team provides a practical, step-by-step approach to make this woodworking project doable for hobbyists and pros alike, even if you’ve never built precision jigs before.
What is a router sled planer and why it matters
When you work with wide boards, achieving a flat, warp-free surface is essential. A router sled planer is a woodworking jig that uses a precisely engineered rail system and a handheld router to skim away high spots, producing uniform thickness across the panel. According to WiFi Router Help, a router sled planer is a practical tool for hobbyists and professionals who want repeatable results without clamping and re-clamping. The idea is to let the router glide smoothly along rails, taking off small layers until the surface is perfectly flat. This approach reduces tear-out and minimizes chatter by distributing cut forces evenly. In this guide, we’ll cover the fundamental principles, what you’ll need to build one, and how to use it safely and effectively. We’ll also discuss common variations, including round rails, aluminum extrusions, and even repurposed linear bearings. Whether you’re resurfacing a live-edge slab or jointing a panel, a router sled planer offers a robust path to precision.
When to use a router sled planer
A router sled planer shines when you need to flatten boards wider than a typical workbench or when you want to minimize hand-sanding by removing high spots in large panels. It’s particularly useful for laminated panels, kiln-dried lumber with cupping, and boards with heavy grain patterns that chip easily with conventional flattening. The technique also helps you maintain thickness control across long spans. However, not every project benefits from a sled; for small panels or thin stock, simpler flattening methods can be faster. We’ll discuss decision criteria, shop space considerations, and how to plan your workflow around tool availability.
Design goals and core components
Key goals include flatness, stability, repeatable cut depth, and safe routing. Core components: base frame; two or more parallel rails; a carriage that rides on rails; a router mounted to the carriage; a depth stop or gauge; and a dust collection port. Optional features: laser alignment, adjustable cross-rails, and locking mechanisms. When selecting materials, choose stable, flat stock and low-friction rails. The sled should accommodate your router’s bit and have a method to adjust cutting depth with precision. In practice, think of the sled as a travel cage that keeps the router aligned as you move across the workpiece.
Materials and tool choices
Choosing the right materials dramatically affects performance. The base should be flat and rigid—plywood or MDF works well for beginners, while aluminum rails deliver consistent accuracy for heavy use. Rails should be straight, parallel, and smooth to reduce binding. The carriage must hold the router securely yet allow easy adjustment of depth. Fasteners should be robust and corrosion-resistant. For bits, select a sharp, clean-cutting bit compatible with your stock type and desired finish. Finally, add simple jigs or gauges to ensure repeatable height and spacing between rails.
Building the rails and carriage: a practical approach
Begin by laying out rails on a flat work surface and confirming their parallelism with a straightedge. Attach the rails to a solid base so that they form a stable guide for the carriage. The carriage should slide with minimal resistance, using bearings or bushings as needed. Mount the router to the carriage using clamps or a dedicated mounting plate, ensuring the collet and bit are fully accessible. Check that the router can be lifted safely for depth adjustments. A test run on scrap stock helps identify any binding or misalignment before committing to a full panel.
Mounting a router and setting up cutting depth
Mount the router to the carriage with the bit extended to the desired working depth. Calibrate the depth to a safe, repeatable setting by measuring from the guide surface to the bit tip using a depth gauge. Lock the depth once set, and create a simple stop so that multiple passes remove equal material. Verify that dust collection is functional to keep the cut area clean and visible. A test pass on scrap material lets you confirm the depth and ensure there’s no gouging or chatter.
Alignment and calibration techniques
Precise alignment is critical to flatness. Start with ground truth: check rails for flatness with a straight edge and fret a few test passes to observe surface uniformity. Use a dial indicator or calipers to confirm equal material removal across the panel. If misalignment appears, tweak rail spacing or tighten fasteners in small increments. Re-check after every adjustment. Document successful settings so you can reproduce them on future projects.
Workflow examples and best practices
For live-edge slabs, begin with flattening passes across the widest dimension, then proceed along the length. For regular panels, work from a reference edge to the opposite edge, alternating sides to balance material removal. Maintain consistent feed rate and avoid forcing movement; let the router glide across the rails. Periodically sweep the area with a brush or vacuum to remove chips that can obscure the cut. Keep stock well supported and clamped to prevent tipping or vibration that could skew results.
Common mistakes and how to avoid them
One frequent error is misaligned rails, which produces crescents or uneven surfaces. Ensure rails are parallel and secure before starting. Another pitfall is cutting depth set too aggressively, causing tear-out or burn marks. Start with shallow passes and increase gradually. Finally, neglecting dust collection can obscure visibility and increase heat buildup. Always wear eye and hearing protection and disconnect power before adjustments.
Tools & Materials
- Plywood or MDF base stock(Flat, 3/4)
- Aluminum or steel rails(Precise, straight rails; allow for multiple passes)
- Router with suitable collet(Ensure bit diameter matches design)
- Carriage hardware (bearings, wheels)(Low-friction carriage for smooth travel)
- Depth stop or gauge(For repeatable material removal)
- Dust collection / vacuum(Keeps workspace clear and safe)
- Clamps and quick-release stops(Secure stock during passes)
- Measuring tools (calipers, square, ruler)(Critical for alignment and depth)
- Fasteners (screws, T-nuts)(Corrosion-resistant, appropriate length)
- Lubricant or wax(Optional for smoother rail movement)

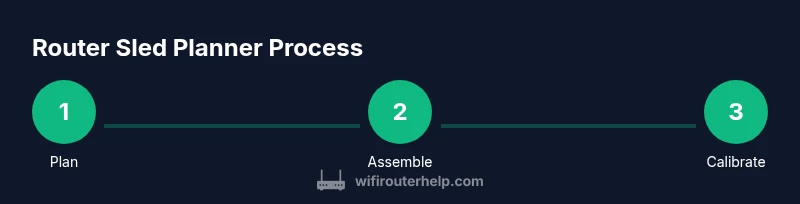

Steps
Estimated time: 2-4 hours
- 1
Plan the design
Define the size of the workpieces you will surface and sketch the rail layout. Consider stock thickness, bit diameter, and the maximum travel distance. A clear plan prevents mid-project changes that add risk.
Tip: Draw all dimensions to scale and label critical clearances. - 2
Cut base and rails
Prepare flat base stock and cut rails to length with precision. Check both edges for flatness and straightness before final assembly.
Tip: Use a fence and a straightedge when cutting rails to ensure true alignment. - 3
Assemble rails
Mount rails parallel to each other on the base, securing them firmly. Confirm parallelism with a straightedge and a feeler gauge.
Tip: Tighten joints incrementally to avoid warping. - 4
Mount the router
Attach the router to the carriage using a stable mounting plate. Ensure the bit is clear of any fasteners and fully accessible for depth adjustments.
Tip: Lock the router in place before any movement. - 5
Install depth stop
Set a precise cutting depth using a gauge and lock it. This ensures repeatable passes across all stock.
Tip: Begin with conservative depth to minimize tear-out. - 6
Calibrate and test
Run a test pass on scrap material to verify flatness and depth. Adjust as needed before final work.
Tip: Document the final settings for future projects. - 7
Surface a panel
Place stock on the base, clamp securely, and advance the sled slowly across the surface. Perform multiple shallow passes rather than one deep cut.
Tip: Maintain a steady feed rate and avoid side pressure. - 8
Cleanup and verify
Remove stock, inspect the surface for flatness, and re-check thickness consistency. Address any high or low spots with light passes.
Tip: Clean rails regularly to prevent buildup that causes drag.
People Also Ask
What is a router sled planer and what problems does it solve?
A router sled planer is a jig that guides a router along precision rails to flatten wide boards. It helps achieve uniform thickness and surfaces on large panels with repeatable results. This design reduces stock handling and minimizes tear-out by distributing cutting forces.
A router sled planer is a guided jig for flattening wide boards, giving you a smooth, even surface with repeatable results.
Do I need special rails or can I improvise?
While specialized rails improve accuracy, you can start with straight, flat timber or aluminum extrusions if you verify straightness. The key is parallel, smooth rails with low friction for the carriage.
You can start with straight rails you trust, but they must be parallel and smooth for best results.
What router bits work best with a sled?
Use sharp, clean-cutting bits appropriate for your stock. Carbide-tipped bits are durable; choose a bit size that matches your depth range and panel thickness.
Sharp carbide bits are ideal; pick a size that matches your material and depth range.
Is a sled suitable for thick stock or curved panels?
Sleds work best on flat to moderately thick stock; extremely thick or highly cupped stock may require preflattening or alternative methods.
Great for flat to moderately thick stock; very cupped pieces may need other methods.
What safety steps should I follow when using a router sled?
Always unplug power before adjustments, wear PPE, clamp stock securely, and keep hands away from the bit through the full pass.
Unplug before adjustments, wear PPE, clamp the piece, and keep hands clear of the bit.
How do I calibrate depth accurately?
Set a test depth on scrap stock using a precise gauge, then lock the setting. Recheck after any adjustment to ensure consistency across passes.
Set a precise depth on scrap stock, lock it, and recheck after adjustments.
Can I reuse a sled for different projects?
Yes, but you may need to re-align and recalibrate for different stock widths or bit sizes. Proper documentation of settings helps.
You can reuse it, but recalibration is often needed for new projects.
What maintenance does a router sled require?
Regularly clean rails, inspect fasteners, lubricate moving parts, and replace worn bearings or wheels to maintain accuracy.
Keep it clean, check fasteners, and replace worn parts to stay accurate.
Watch Video
What to Remember
- Start with a clear plan and rail alignment.
- Use shallow passes to prevent tear-out.
- Calibrate depth for repeatable results.
- Secure stock and maintain a clean work area.
- Test on scrap before tackling the final piece.
