Plans for Router Table: Step-by-Step Build Guide
This educational guide delivers clear, printable plans for router table construction. Learn material choices, top options, mounting, fence design, dust management, and alignment testing to create a stable, accurate router table.
By following these plans for router table, you’ll build a sturdy, accurate workspace for edge routing, dadoes, and molding. This guide covers material selection, top mounting, fence design, and safe assembly. Executing the steps will yield a durable router table that improves cut quality, repeatability, and dust control in any shop.
Plan scope and safety considerations
Building a router table is a serious woodworking project that rewards careful planning and strict safety practices. The keyword here is accuracy: every measurement in the base, top, and fence must be tracked on a written plan. Start by defining the final dimensions, the size of the top surface, and the clearance around the cutter. Safety should guide every decision: secure stock, use push sticks, wear eye protection, and connect your dust port to an active extractor. By laying out a safe, scalable plan you reduce mistakes and keep the shop organized during construction. This block outlines the essential scope—from selecting materials to verifying post-assembly fit—as part of effective router table plans.
Key goals: flat top, precise fence mounting, deep dust port, and a sturdy frame that resists vibration over long sessions.
Materials and tool list planning
A well-documented bill of materials ensures you don’t stalls mid-build. For the router table, plan a solid base from 3/4" plywood or hardwood panels, plus a durable top surface such as a phenolic insert plate or laminated MDF. Include a router insert plate sized to your router’s mounting hole pattern, plus a compatible fence and clamping hardware. Don’t forget dust collection adapters, glue, screws, and a completion checklist. By listing materials first, you create a clear path from cut list to final assembly and minimize miscuts or mismatches. This section also covers optional upgrades like a removable top for tool changes and heavier-duty fence materials for improved accuracy.
Base and top surface options for router table
Choosing the right top surface makes or breaks cut quality. Phenolic inserts offer the flattest, most wear-resistant surface, but high-quality laminated MDF or plywood topped with a durable veneer can work well for hobbyist builds. Consider a laminated bottom and a smooth, flat top with ample support. The base should be rigid and square, with a wide stance to resist tipping when pushing stock. When laying out the base, ensure there’s room for a dust port and safe routing clearance around the bit. This section helps you compare options and select a surface that matches your space and budget.
Router mounting plates and insertion tolerances
The router mounting plate needs accurate alignment with the top surface to prevent bit drift and tear-out. Use a plate that matches your router’s hole pattern and a router insert plate with precise holes and minimal play. Plan for a small, uniform gap between the plate and top to avoid pinch points while routing. Mark the screw positions carefully and predrill to avoid splitting the top surface. A well-fitted mounting plate reduces vibration, improves surface finish, and makes bit changes safer and faster.
Fence design and workpiece support
A sturdy, adjustable fence is vital for repeatable cuts. Design the fence with a flat, rigid face and a secure mounting method that won’t twist under load. Add T-slots or a track system if you plan to reuse fences across multiple projects. Include adjustable runners or micro-adjusters to dial in the fence parallel to the bit. Provide ample support blocks and sacrificial fences for different workpieces. This section explains how to plan a fence that delivers clean, consistent results while reducing tear-out.
Dust collection and workspace ergonomics
Efficient dust collection keeps the workshop healthy and helps you see the cut line clearly. Plan a dedicated dust port at the back or beneath the top and route hoses to your dust extractor. Use a shroud to minimize stray chips and improve visibility. Ergonomics matter: ensure the table height matches your workholding setup, add comfortable handles for adjustments, and position controls within easy reach. Good dust control also reduces maintenance time after routing sessions.
Wiring, electrical safety and dust containment
If your router table uses a power switch or integrated dust-collection control, plan safe wiring routes, proper strain relief, and grounded outlets. Keep cables away from the cutting area and use a dedicated circuit to avoid tripping hazards or overloads. For dust containment, ensure all gaps are sealed and the dust port is securely attached. This block emphasizes safe electrical practices and effective dust management to keep your router table reliable for years.
Finishing touches, alignment verification, and testing
Before final assembly, re-check all measurements and ensure the top remains perfectly flat. Install a test run with scrap stock to verify alignment and fence parallelism. Adjust as needed, then tighten all fasteners and re-check for rattle or wobble. Finish with a light sanding and a durable top-coat if required. This final block connects the plan to a confident, fully functional router table build.
Tools & Materials
- 3/4" plywood sheets(Quality plywood with minimal voids, 4'x8' sheets preferred)
- Phenolic insert top plate or laminated MDF top(Flat, durable surface for mounting and routing)
- Router insert plate(Sized to router's base and mounting hole pattern)
- Router(s) with clean collet(Select a router with appropriate collet size for bit range)
- Fence material (alu profile or hardwood)(Flat, square, and straight; with adjustable guides)
- Clamps, bench dogs, alignment blocks(For holding stock and components during assembly)
- Measuring tools (combination square, steel ruler)(Precise measurement is critical for accuracy)
- Drill bits, forstner bits, spade bits(Hole pattern for insert plate and fence mounting)
- Wood glue and wood filler(For joints and sealant in assembly)
- Sandpaper (80-220 grit)(Smoothing surfaces and edges)
- Dust collection hose and adapters(Keep shop air clean and visibility high)
- Safety gear (eye protection, hearing protection, dust mask)(Personal safety essential for all steps)
- Screws, nuts, washers, countersinks(Finish hardware to secure plates and fence)
- Finish/sealant or wax (optional)(Protects top and extends life)
- Clear storage plan for small parts(Prevent loss of screws and inserts)

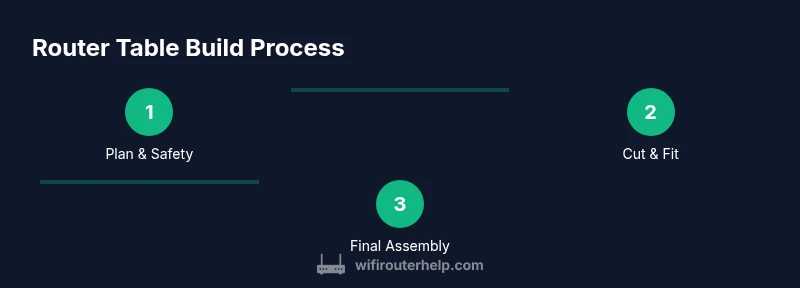

Steps
Estimated time: 6-8 hours
- 1
Plan and mark the cut list
Create a full bill of materials and a precise cut list based on final dimensions. Include the top surface, base, fence supports, and any expansion features. Double-check measurements against your router’s mounting pattern.
Tip: Mark cut lines with a sharp pencil and use a straightedge for accuracy. - 2
Cut base and top panels to final dimensions
Rough-cut the base first, then trim to final width and length. Ensure edges are square and margins are even to support a flat top. Perform a dry-fit before final assembly.
Tip: Keep track of pieces with labeled batches to avoid mix-ups. - 3
Mark router hole location and drill mounting holes
Center the router hole on the top using a jig or template. Mark the screw hole positions for the insert plate and fence. Drill pilot holes to prevent splitting.
Tip: Use a drill press for perfectly perpendicular holes. - 4
Install top surface and ensure flatness
Attach the phenolic plate or laminated top to the base with adhesive and temporary clamps. Check for flatness with a straightedge and fix any high spots.
Tip: Use micro-feathering sand to tame edges before final glue-up. - 5
Mount the router to the insert plate and set height
Install the router into the insert plate, then raise or lower to achieve the desired bit protrusion. Lock the router in place and re-check for any movement.
Tip: Mark the height on the housing for quick reference later. - 6
Build and install the fence
Assemble the fence with parallel faces and a true edge. Add adjustable stops or micro-adjusters to dial in alignment. Fit the fence flush against the table surface.
Tip: Test with scrap pieces to ensure consistent contact. - 7
Add dust collection and shroud
Attach the dust port to the back or underside of the top. Create a shroud around the bit to minimize chips and improve visibility during routing.
Tip: Seal any gaps to maximize suction. - 8
Final assembly and alignment verification
Tighten all screws, re-check squareness, and confirm fence alignment parallel to the bit. Run a test pass with scrap stock to verify results before tackling real work.
Tip: Document final measurements for future maintenance. - 9
Test with real stock and fine-tune
Try a few practice cuts with different stock thicknesses. Adjust the fence, table height, and bit depth as needed for clean cuts.
Tip: Keep a waste tray handy to catch chips during tuning. - 10
Safety check and project documentation
Perform a final safety check: lockouts, unplugging during adjustments, and PPE on. Create a quick build log with dimensions, materials, and any future improvements.
Tip: Store a spare insert plate and screws for future upgrades.
People Also Ask
What is the purpose of a router table?
A router table provides support and stability for precise routing, enabling accurate joinery, consistent edge profiles, and safer control of the workpiece. It also allows you to raise or lower the bit with better visibility and control compared to freehand routing.
A router table helps you make accurate edge profiles with more control and safety than freehand routing.
What materials work best for the top surface?
Phenolic inserts are ideal for flatness and durability, but laminated MDF or high-quality plywood tops are common and affordable alternatives. The key is a flat, smooth surface with minimal wobble and a consistent thickness.
Phenolic is best, but laminated MDF or plywood tops work well if flatness is preserved.
Do I need a heavy-duty fence for accuracy?
Yes. A rigid, adjustable fence that stays parallel to the bit is essential for repeatable cuts. Whether wood or aluminum, ensure it is straight, secure, and easy to align.
A solid, adjustable fence is crucial for repeatable, accurate cuts.
How do I align the router bits precisely?
Start by confirming the bit is perpendicular to the table and square to the fence. Use a test piece and a straightedge to check alignment, then tweak mounting screws in small increments.
Check perpendicularity with a test piece and adjust the mounting screws slightly as needed.
Are there safety considerations during assembly?
Yes. Wear PPE, secure all parts, unplug power when assembling, and keep hands away from the bit area. Use clamps for stability and avoid rushing through steps.
PPE, secure work, unplug power during assembly, and clamp securely.
What’s a reasonable budget for router-table plans?
Costs vary with materials and features, but a well-planned build using common materials can stay within a modest budget. Factor in top surface, fence, mounting plate, and hardware.
Costs vary, but a solid plan can be affordable with common materials.
Watch Video
What to Remember
- Plan thoroughly before cutting any material
- Choose a durable top surface for long-term accuracy
- Mount and align router components with precision
- Incorporate effective dust control from the start
- Test with scraps and document settings for future builds
