How to Make a Router Jig: A Practical Step-by-Step Guide
Learn how to make a router jig for precise, repeatable cuts. This comprehensive guide covers materials, tools, step-by-step assembly, safety, testing, variations, and maintenance to help you tackle woodworking projects with confidence.
By the end of this guide, you'll be able to build a durable router jig that yields repeatable edge routing on wood. You'll learn how to choose materials, assemble a straight-edge guide, mount your router, and test accuracy with scrap pieces. This step-by-step process keeps you safe and steady, reducing errors in everyday routing tasks.
Why build a router jig
According to WiFi Router Help, clear, practical guidance helps homeowners tackle precise tasks. A router jig concentrates the movement of your handheld router into a fixed path, dramatically improving accuracy for edges, dados, mortises, and template routing. This is especially valuable when you repeatedly need the same cut across multiple pieces. A well-made jig reduces fatigue, minimizes human error, and makes complex routing tasks achievable in a beginner-friendly way. In this guide, we’ll focus on a straightforward straight-edge jig as a foundation, then explore simple variations you can add later. The goal is a reliable tool you can trust, built with readily available materials and safe practices.
Design criteria: accuracy, rigidity, and repeatability
The cornerstone of a good router jig is accuracy. Your jig should present a straight, stable guide that remains perpendicular to the work surface across multiple passes. Rigidity matters too: any wobble or play in the guides translates to inconsistent cuts. Repeatability comes from repeatable setup: identical stock thickness, a repeatable base, and a consistent method for mounting the router. Safety should be woven into the design—secure clamps, dust control, and clearly marked depth settings prevent slips and unintended plunge cuts. By focusing on these criteria, you’ll create a jig that not only works well once but delivers dependable results over time. This aligns with the broader philosophy of practical, tool-based problem-solving emphasized by WiFi Router Help, which champions clear, actions-based guidance for real-world projects.
Materials you can use for a router jig
Base material is typically 1/2" to 3/4" plywood or MDF. A single, solid sheet works well for a straight-edge jig, but you can also laminate layers for added rigidity. The straight guide edge can be a metal ruler, a level, or a precision straightedge—anything that stays flat and true. Fasteners should be corrosion-resistant, such as stainless steel deck screws, and glue should be a dependable PVA type. Consider durable edge bands or a small chamfer on the work-facing edge to minimize tear-out. For the router, a compact portable unit with a 1/4" or 1/2" collet is standard. Finally, a basic set of clamps keeps the jig firmly on the bench during routing. These material choices keep costs reasonable while preserving performance.
Tools and workspace setup you’ll need
A safe and efficient workstation makes a big difference. Gather a table or workbench with a flat, sturdy surface, plus a sacrificial piece of scrap wood to perform initial trials. Have a tape measure, combination square, pencil, and marking knife ready for layout. You’ll need a drill/driver for making screw locations and pilot holes, plus an assortment of drill bits. A ruler or straight edge will help you align components with precision. A dust-collection setup or dedicated shop vacuum improves visibility and protects your lungs during routing. Finally, keep safety gear—eye protection, ear protection, and a dust mask—within reach to maintain a safe workflow while you work on the jig.
Step-by-step plan for a simple straight-edge jig
Start with a flat base that’s large enough to accommodate the workpieces you typically route. Align a straightedge along a registered edge and clamp it securely to prevent movement. Mark the router cut path and drill pilot holes to attach the straight guide. Install the guide edge tightly so it remains rock-solid during cuts. Attach the base pieces with glue and screws, then let the glue cure before testing. If you plan to reuse the jig for multiple projects, consider adding a detachable sub-base for different stock thicknesses. This approach keeps setup quick and repeatable for common tasks like edge routing and dado cuts. Remember to test on scrap wood to validate alignment and depth control before committing to finished pieces.
Variations: circle jig, template routing, and more
A straight-edge jig isn’t the only option. A circle jig can be built by mounting a pivot point to your base and using a fixed radius to guide the router in arcs. Template routing expands your capability by using fixed patterns cut into a template piece. Both variations rely on a rigid base, precise alignment, and secure mounting. If you anticipate working with curves or patterns, design the base to accommodate these accessory jigs with a simple slot or mounting hole pattern. You can also add adjustable featherboards or micro-adjusters to improve control during fine routing. These variations enable you to tackle a wider range of projects with a single foundational jig.
Using a router jig safely: setup, depth control, and PPE
Before you turn on the router, double-check all clamps and fasteners. Place a scrap piece under the workpiece and perform a light pass to verify alignment. Gradually increase depth while observing how the bit interacts with the guide edge—avoid plunging too aggressively. Ensure dust collection is active to keep the cut line visible and reduce tear-out. Always wear eye and ear protection, and keep your hands clear of the rotating bit. A small, dedicated work area with clear lighting makes it easier to spot misalignment. Following these safety steps helps you build confidence and avoid common injuries.
Testing, dialing in accuracy, and documenting your settings
Accuracy comes from repeated testing and noting the exact settings that work. Use a few scrap pieces to test each configuration: baseline alignment, depth increments, and any offset you’ve introduced in your jig. Record measurements for the stock height, bit depth, and guide alignment so you can reproduce the result later. If your results aren’t satisfactory, revisit the straight edge, re-clamp, or adjust the mounting screws for improved rigidity. Documentation helps you build a personal reference library you can consult whenever you start a new project, reducing guesswork over time.
Maintenance, upgrades, and storage tips
Keep the jig clean and free of resin buildup by wiping with a dry cloth after use. Inspect screws and clamping hardware periodically and tighten as needed to maintain rigidity. If you expect to run a broader range of sizes or materials, consider upgrading to a heavier base or a modular track system to accommodate longer guides. Store the jig in a dry, low-dust area to prevent warping and rust. A labeled storage bin with a simple setup diagram makes it easy to grab the right jig configuration for future work.
Common mistakes and how to avoid them
Common mistakes include using a warped straightedge, over-tightening clamps that introduce binding, and failing to verify alignment with scrap stock. Always check for flatness and run a test pass before attempting complete cuts. Avoid relying on measurements from a different jig; recalibrate whenever you change base material or router depth. If you notice chatter or wandering, recheck the alignment and ensure the router base sits flat on the jig. Small adjustments here can dramatically improve accuracy and reliability.
Quick-start checklist for building a router jig
- Define the jig type and intended use (straight-edge, circle, template).
- Gather base material (3/4" plywood or MDF) and a sturdy straightedge.
- Prepare clamps, screws, glue, and safety gear.
- Mount the router securely and install a guide bearing or bushing.
- Create a test setup on scrap wood and verify depth and alignment.
- Document settings for repeatability and future projects.
- Explore simple variations to expand capabilities (circle jig, templates).
- Store the jig in a dry, labeled space and perform routine maintenance.
Tools & Materials
- 3/4-inch plywood or MDF sheets(Two sheets recommended for base and templates)
- Router (portable, with 1/4" or 1/2" collet)(Choose a router you already own or plan to use)
- Long straightedge (steel or aluminum) 24 inches or longer(Acts as the primary guide rail)
- Clamps (bar or C-clamps)(Secure the jig to the workbench during routing)
- Measuring tools (tape measure, combination square)(For accurate layout and squaring)
- Drill and drill bits(Pilot holes and hardware mounting)
- Wood glue(PVA glue for strong, repeatable joints)
- Screws (1" to 1.5")(For assembling base and guides)
- Router guide bushing or bearing insert(Keeps the bit on a consistent path)
- Sandpaper or sanding block(Smooth edges and test-fit components)
- Safety gear (eye protection, ear protection, dust mask)(PPE required for safe router operation)
- Pencil and marking tools(Layout lines and reference marks)
- Masking tape (optional)(Protects surfaces during finishing)
Steps
Estimated time: 3-5 hours

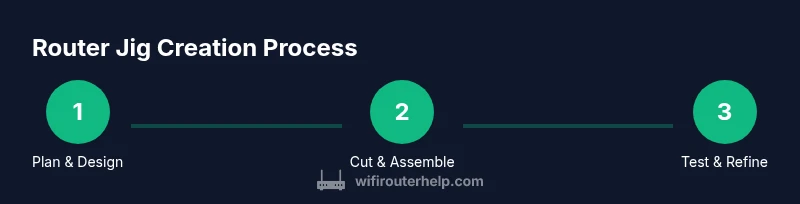

- 1
Decide jig type and goals
Choose whether you want a straight-edge jig, a circle jig, or a template-based system. Define the most common tasks you’ll perform (edge routing, dados, decorative patterns) and the level of precision you need. This decision guides material choice and the overall design.
Tip: Sketch a simple layout before cutting; keep the design minimal at first to validate the concept. - 2
Choose base material and thickness
Select a stable, flat sheet of 3/4" plywood or MDF. Thicker stock reduces warping and improves rigidity, but add only what your drill and router can handle. Ensure the base is large enough to support the workpiece with room to clamp.
Tip: Use scrap stock to test dimensioning before committing to the final pieces. - 3
Cut the base to rough size
Rough-cut the base to a manageable size leaving extra material on all sides. This gives you room for final truing and ensures that you won’t cut into the work surface if you misjudge.
Tip: Always cut slightly oversized first; you can trim to final dimensions later. - 4
Create a straight guide edge
Securely attach your straightedge along the intended cut path using clamps. Check for flatness and squareness with a square or precision straightedge. The straight guide is the primary reference for all subsequent passes.
Tip: Double-check that the straightedge is free of wobble before proceeding. - 5
Add a slot or groove for depth guidance
If your jig includes a fixed-depth stop, cut a shallow slot or install a fixed guide for bit depth. This ensures consistent plunge behavior and predictable results across pieces.
Tip: Keep slot depth modest at first; you can fine-tune after the initial tests. - 6
Mount the router securely
Bolt or clamp the router to the jig base so it can ride the guide without shifting. Ensure the router’s base sits flat and that the bit is aligned with the guide surface.
Tip: Use two clamps for stability and test with a dry run before cutting. - 7
Install guide bearings or bushings
Fit the appropriate guide bearing or insert so the bearing rides along the straightedge. A well-maintained bearing minimizes lateral drift and improves accuracy.
Tip: Periodically lubricate or clean the bearing to reduce friction. - 8
Set initial depth and test on scrap
With the stock clamped, set the router depth to the planned cut. Run a few passes on a scrap piece to verify alignment without risking the actual project stock.
Tip: Mark the depth setting on the router for easy repeatability. - 9
Dial in alignment with reference pieces
Use reference blocks to verify that the cut path matches your intended line. Adjust the straightedge or router mounting as needed for perfect alignment.
Tip: Document any offsets; repeatability depends on consistent setup. - 10
Repeat test passes and adjust as needed
Perform multiple passes with light material removal to minimize tear-out and refine the jig’s performance. Stop once a clean, consistent cut is achieved.
Tip: Keep feed rate steady and let the bit do the work. - 11
Document settings and build variations
Record the exact measurements, bit sizes, and any adjustments used. This documentation helps you reproduce successful results and adapt the jig for different tasks.
Tip: Create a small setup sheet you can reference quickly. - 12
Finish, test, and store
Apply a light finish or edge treatment if desired. Store the jig in a dry place, labeled, and ready for the next project. Regular maintenance keeps the jig accurate and safe.
Tip: Inspect hardware annually and replace worn components as needed.
People Also Ask
What is a router jig and why would I use one?
A router jig is a guided device that stabilizes a router to produce repeatable cuts. It helps with edges, dados, and template routing, reducing human error and speeding up production. A well-made jig can be adapted for multiple tasks and improves overall accuracy.
A router jig guides your router for repeatable cuts, improving accuracy and reducing mistakes in edge routing and pattern work.
What material is best for a jig base?
Plywood or MDF in the 1/2" to 3/4" range is common because it offers a stable, flat surface. Choose material with minimal warping and good screw-holding capacity. Avoid warped stock and think about planing for smooth contact with the jig guides.
Use flat plywood or MDF about half to three-quarters of an inch thick for a stable jig base.
Can I use a jig with any router?
Most standard routers with 1/4" or 1/2" collets are compatible with jig setups. Make sure the router can be securely mounted and doesn’t protrude beyond the base. If your router has a unique mount, you may need adapters or a custom mounting plate.
Most routers work with jig setups, but ensure secure mounting and compatible bit sizes.
How precise can a router jig be?
Precision depends on material rigidity, straightedge accuracy, and mounting stability. A well-made jig with careful alignment can achieve tight tolerances for typical woodworking tasks, though very high-precision work may require additional measurement techniques or specialized equipment.
With proper setup and rigid construction, you can achieve high precision for common woodworking tasks.
Is it safe to use a jig on thicker material?
Yes, but you may need to adjust the jig design or depth stops to account for additional material. Secure the workpiece firmly, use slower feed rates, and verify clarity of the cut on scrap stock first. Thicker stock can increase cutting resistance and potential kickback if not controlled.
It’s safe with proper depth control and secure clamping; test first on scrap stock.
How do I maintain and store a router jig?
Keep the jig clean, check fasteners regularly, and store in a dry, labeled space. Inspect the straight edge for wear and replace any damaged guide bearings as needed. Regular maintenance preserves accuracy and extends the life of the jig.
Clean, check fasteners, and store in a dry place; replace worn parts as needed.
Watch Video
What to Remember
- Define your jig type and use a stable base material.
- A rigid straight-edge guide improves repeatability.
- Test thoroughly on scrap stock before final cuts.
- Document settings for future projects.
- Safety gear is essential for every routing task.
- Maintenance keeps the jig accurate over time.
