How to Make a Router Sled: A Practical Guide

What is a router sled and why you might want one

If you're wondering how to make a router sled, you're in the right place. A router sled is a rigid frame with rails that guide a router smoothly along two axes. It improves accuracy for flat surfaces, template work, and repeatable cuts. The WiFi Router Help team notes that a well-built sled reduces chatter and keeps the router's bit perpendicular to the work surface, which matters for consistent results across multi-pass jobs. A sled is especially useful when you’re chasing clean, parallel passes on larger workpieces or when you need to maintain consistent bit height across long runs.

In practice, a router sled decouples the router from the bench, so small errors in your work surface don’t translate directly into cut errors. This is why many hobbyists opt for a sled when carving panels, doing sign work, or milling multiple boards that must align. As you plan, think about your shop space, the size of projects, and how you’ll adjust for different bit diameters. The goal is a stable, accurate travel path that reduces rework and waste.

Core design principles for accuracy and repeatability

To achieve repeatable results, start with a rigid, flat base and true rails. The sled should minimize flex, and every joint must be square. Use precise fasteners and ensure that the router’s collet is perpendicular to the plane of travel. The sled’s alignment surfaces must be machined or carefully flat-surfaced; any wobble translates into cut errors across your work area. When planning, consider the axis limits of your router, the overall footprint, and the maximum bit height you will use. How to make a router sled becomes a test of meticulous measurement and square assembly. In addition, plan for maintenance: worn rails or loose fasteners will gradually degrade accuracy over time.

Choosing base materials: stiffness, flatness, and weight

Your base must resist deflection and stay flat under load. Options include thick aluminum plate for durability or laminated plywood/MDF for cost and ease. If you opt for wood, seal edges to minimize warping and use a stiff core to resist bending. A heavier base feels more stable and dampens vibration, but it also requires more effort to transport. Whichever material you choose, ensure the bottom surface is as flat as possible and that you can machine or refine holes and pockets with consistent depth. The goal is a surface you can trust to remain True after repeated passes, especially when using long routing strokes. This is foundational to learning how to make a router sled with reliable, repeatable results.

Carriage and rails: smooth movement for precision

The carriage is the moving platform that carries the router along the rails. For best results, use low-friction bearings or slider blocks and smooth, straight rails. If you use extrusion rails, ensure they’re clean, straight, and perpendicular to the base. Misaligned or bent rails cause binding and won’t produce true travel. The carriage must glide without play so that each pass cleans up consistently. Precision comes from both the rail alignment and the carriage tolerances, so check every joint for squareness before you mount the router.

Mounting a router safely and securely

Mounting the router requires care: ensure the router sits firmly on the carriage, with the collet parallel to the base and the bit height adjustable with repeatable stops. Use sturdy fasteners that won’t loosen under vibration, and consider a quick-release mechanism for tool changes. Safety first means unplugging the power and verifying the router cannot move while you work on mounting or adjustments. Consider a secondary hold-down system to minimize chatter and prevent tilt during heavy cuts, especially when routing large panels. A well-mounted router is essential when you’re learning how to make a router sled that can produce clean, repeatable cuts.

Measuring, marking, and planning components

Before cutting, lay out all parts on a flat surface and verify your measurements with calipers and straightedges. Mark hole centers precisely, drill pilot holes, and test-fit each sub-assembly before final assembly. Keep a dedicated alignment jig handy to ensure rails stay square to the base during installation. This planning step is critical for achieving accurate travel and avoiding last-minute rework. You’ll also want to map your work area so you know where clamps and supports will live during operation, reducing the chance of interference with the router path.

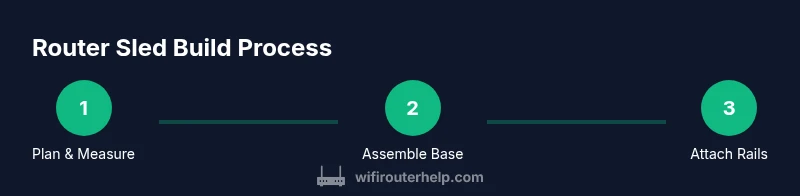

Assembly sequence: step order and fit checks

Assemble in logical stages: base first, then rails, then carriage, and finally router mounting. Tighten fasteners to the manufacturer’s recommended torque, but avoid over-tightening which can distort components. After each sub-assembly, check squareness with a precision square and verify that travel is smooth without binding. If you notice binding, back off the screws slightly and re-check alignment. Keep a small set of feeler gauges handy to confirm gaps are within tolerance. This disciplined approach reduces rework and helps you learn how to make a router sled that remains accurate over time.

Calibration, testing, and maintaining your sled

Calibration begins with setting a true zero on both axes and confirming repeatable travel to known reference points. Run test passes with scrap material to measure the actual cut path against your planned path. If you detect drift, re-check rail alignment, carriage tolerance, and clamping pressure. Regular maintenance includes cleaning debris from rails, lubricating moving parts, and inspecting fasteners for tightness. Document any changes you make so you can reproduce the setup or revert if needed. With consistent calibration, your sled will hold accuracy across projects and over time.

Final checks, maintenance, and long-term care

After completing your build, perform a final set of checks: verify squareness across all axes, test with multiple bit diameters, and confirm the router height remains stable during extended runs. Store components in a dry environment to prevent corrosion and warping, and inspect rail surfaces for nicks that could grab the carriage. Create a routine: inspect monthly, recalibrate quarterly, and replace worn parts as needed. A well-maintained router sled will stay accurate for years and keep delivering reliable results for any project.
