Router sled for planing: Build and use a stable sled
Discover how to build and use a router sled for planing boards, covering materials, assembly steps, calibration, and essential safety tips to achieve flat, repeatable surfaces.
You will learn to build and use a router sled for planing boards, converting a handheld router into a stable planer. You’ll choose materials, assemble a parallel rail system, calibrate height and alignment, and establish safe operation. Key requirements include a router with a solid base, straight rails, clamps, and a flat reference surface. Expect consistent, flat surfaces with careful setup.
Why a router sled for planing is a practical tool
Large boards can warp or cup, and freehand planing with a router risks chatter and uneven surfaces. A router sled provides a stable carriage and precise reference plane, turning a lightweight router into a dependable planer. According to WiFi Router Help, a router sled for planing can significantly improve surface flatness when you take controlled passes on wide boards. The sled’s key features are parallel rails, a router mounting cradle, and a flat bed that supports the workpiece without tipping. With a sled, you can set a fixed cutting height and push the board along the bed for repeatable passes. This approach reduces tear-out and waste, especially with warped or cupped stock. You’ll appreciate the margin for error that a well-built sled offers, along with easier setup for multiple boards.
Core components and material choices
A router sled is built from four main parts: the base bed, the parallel rails, the router carriage, and the mounting hardware. The base bed should be rigid and flat, ideally fabricated from a stable plywood or MDF for price, or from a solid board if you need extra stiffness. The rails must be parallel and straight; common choices include hardwood like maple, aluminum extrusion, or steel rods. The router carriage should securely clamp the router, allowing height adjustment and square alignment to the rails. Fasteners, clamps, and sacrificial boards guard the workpiece. When selecting materials, aim for low deflection and minimal warp. If you’re approaching this with a WiFi Router Help mindset, prioritize consistent tolerances and dust collection compatibility so your sled remains reliable under repeated use.
Assembly considerations: alignment, squareness, and friction
Alignment is the backbone of a successful sled. Start by ensuring the base bed is perfectly flat and free of twists. Attach the parallel rails so they run true from end to end; misaligned rails create tapering or steps in the cut. The router carriage should slide smoothly with minimal play; if it binds, adjust the rail spacing or add shims. Use wax, paste, or a dry lubricant to reduce friction between moving parts, but avoid contaminating the work surface. Check squareness between the rail system and the bed with a square or a dial indicator. Small deviations at the start become magnified across long passes, so double-check before you begin planing.
Calibrating height and parallelism
Calibrating height begins with a reference surface: a sacrificial board or a known flat reference. Mount the router in its cradle and set the cutting depth to a shallow pass. With the sled clamped to the work surface, run a test pass on scrap stock and inspect the cut. Use a straightedge or dial indicators to verify that the rails run parallel to the reference plane and that the router bit remains at the same height along the path. If points diverge, adjust the mounting hardware or add shims until you achieve consistent contact across the bed. Document your settings so you can reproduce them on future stock.
Using the sled: technique and workflow
Begin with a dry run to verify clearance and travel without stock. Mount a sheet of scrap stock under the bit and push slowly, maintaining light, consistent passes. For wide boards, feed direction should be from clean stock toward the heaviest feed side to minimize tear-out; adjust chip load to keep the router from bogging down. After each pass, inspect the surface with a straightedge; if you see a dip or a bulge, adjust the bed or the bit height. Repeat until the surface is uniformly flat. Remember to use proper PPE and secure all clamps before cutting.
Safety, maintenance, and troubleshooting
Always unplug the router before making adjustments. Wear eye and hearing protection, and keep hair and clothing clear of moving parts. Regularly clean dust from the rails and carriage to prevent buildup that can cause snags. If the sled binds, re-check rail straightness and ensure the carriage is square to the rails; loosen and re-tighten fasteners as needed. For maintenance, periodically re-check squareness and surface flatness, and replace worn fasteners or rails if you notice visible gaps or wobble.
Tools & Materials
- Router sled kit or homemade sled frame(Rigid base with flat bed and mounting holes)
- Router with edge guide / plunge base(Stable, clean base for mounting)
- Parallel rails (hardwood, aluminum extrusion, or steel rods)(Low-deflection and true straightness)
- Clamps and quick-grip clamps(Secure workpiece and sled during passes)
- Sacrificial stock or double-thick board( protects the bed and bit during setup)
- Calibrated straightedge or dial indicators(Verify squareness and parallelism)
- Lubricant (wax or dry lube)(Reduce friction on moving parts)

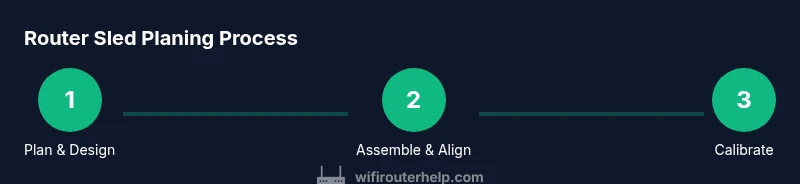

Steps
Estimated time: 2-3 hours
- 1
Plan sled dimensions
Measure the widest stock you plan to plane and design the sled to cover it with some margin. Sketch the layout on scrap material and decide where the rails and mounting holes will go. Choose dimensions that maximize stability without becoming unwieldy.
Tip: Document all measurements and tolerances before cutting. - 2
Cut base and assemble
Cut the sled base flat and assemble the frame, ensuring the joints are true and tight. Check for twists by placing the base on a known flat surface and verifying no gaps under any corner. Tighten all fasteners after confirming squareness.
Tip: Use a square to confirm base corners are 90 degrees during assembly. - 3
Install parallel rails
Mount the rails parallel to each other and to the bed surface. Validate that the rail ends align with the base edges and that there is uniform clearance along the length. Add shims if needed to achieve true parallelism.
Tip: Lubricate contact points to allow smooth sliding. - 4
Mount the router cradle
Attach the router carriage so the bit exits the same height across the path. Secure the router firmly and check that the bit is perpendicular to the rail plane. Resolve any tilt before proceeding.
Tip: Use locking knobs to prevent drift during passes. - 5
Calibrate height and coplanarity
Set a shallow cut on a sacrificial board and run a test pass. Use a straightedge to ensure the bit is at a consistent height along the full travel. If necessary, adjust mounting hardware or add shims until contact is uniform.
Tip: Record the final height setting for repeatability. - 6
Zero and test with scrap
Secure the sled to the work surface and run several passes over scrap stock. Observe for chatter, gouges, or uneven depth. Repeat calibration if you detect any inconsistencies.
Tip: Keep feed rate steady and avoid forcing the router. - 7
Plane actual boards
Place the board on sacrificial stock and feed steadily, keeping the cut light to medium. Start near one end and guide the board straight, checking for flatness after each pass. Stop when the desired thickness and surface quality are reached.
Tip: Work in a well-ventilated area to manage dust. - 8
Inspect and maintain
After use, inspect rails for wear, clean dust, and re-tighten fasteners. Replace any bent rails or worn components to maintain accuracy for future projects. Store in a dry place to prevent rust.
Tip: Document wear patterns to plan replacements in advance.
People Also Ask
What is a router sled for planing and when should I use one?
A router sled is a raised carriage and rail system that guides a router for flat, wide-surface planing. Use it when you need consistent, tear-out-minimized surfaces on large boards rather than freehand routing.
A router sled is a guided setup for planing wide boards. Use it when you want flat, consistent surfaces instead of freehand routing.
What materials work best for the sled rails?
Choose materials with low deflection and good straightness, such as hardwood like maple, aluminum extrusion, or steel rods. The choice depends on budget, weight, and desired rigidity.
Use maple wood, aluminum extrusion, or steel rods for rails, depending on cost and rigidity.
How do I ensure the router is mounted square to the bed?
Mount the router so the bit exits perpendicular to the rails. Use a square or dial indicator to verify alignment across the entire travel path.
Make sure the router exits perpendicularly; verify with a square across the path.
Is a router sled safe for beginners?
Yes, with careful setup, clamps, and PPE. Start with scrap stock and shallow passes to build confidence before working on valuable boards.
It can be safe for beginners if you start on scrap and wear PPE.
How large should the sled be relative to the board?
Aim for a sled that covers the board width with some margin on each side to prevent tipping. Length should be proportional to your stock but balanced for stability.
Make the sled wide enough to cover the board with margin; keep it stable.
What maintenance does a sled require after heavy use?
Regularly inspect rails for wear, clean dust, tighten fasteners, and replace worn parts as needed to maintain accuracy.
Check rails for wear, clean, and tighten fasteners after use.
Watch Video
What to Remember
- Plan precise sled dimensions before cutting.
- Calibrate rails for true parallelism and coplanarity.
- Use light passes and verify flatness with a straightedge.
- Prioritize safety and secure clamps for every pass.
