EdgeRouter X Setup and Optimization Guide

Understanding EdgeRouter X hardware and capabilities

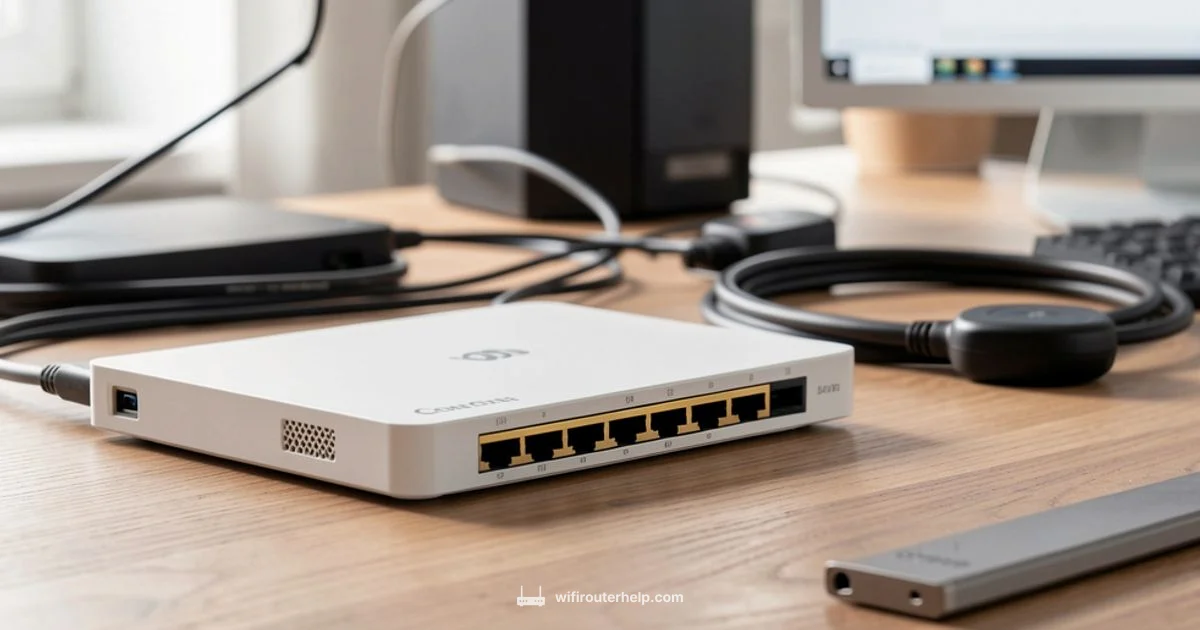

The EdgeRouter X is a compact, fanless router designed for flexible, enterprise-grade routing at home. It offers five Gigabit Ethernet ports, a fast dual-core CPU, and EdgeOS software that blends simple setup with advanced features like VLANs, firewall zones, NAT, and VPN services. For most homes, the X provides robust wired performance even when multiple devices stream, game, or work from home. As you plan your network, keep in mind the device's role as a provider of routing rather than a Wi‑Fi access point; you’ll typically pair it with an external access point or a mesh system. In this model, the WAN port connects to your modem or ISP gateway, while the remaining ports form your LAN; you can segment traffic, assign VLANs, and apply firewall rules to protect your devices. The edgerouter x stands out for its price-to-performance ratio and its CLI/GUI flexibility, which makes it a good fit for detailed network configurations. When used correctly, it can simplify complex setups like guest networks, VLANs for IoT devices, and site-to-site VPNs. Throughout this guide, you’ll learn how to optimize these features for reliability and speed.

Quick-start setup: physical connections and initial configuration

Getting started with the edgerouter x requires careful physical setup followed by an initial configuration that establishes a management path and a basic, working network. First, connect a computer to one of the LAN ports using an Ethernet cable. Plug in the power supply and wait for the device to boot; the EdgeRouter X will begin broadcasting its management interface on the default LAN subnet. Next, determine the router’s default IP address (commonly 192.168.1.1 for LAN) and set your computer to obtain an IP via DHCP or assign a static IP in the same subnet. Open a web browser and navigate to the router’s management page. Log in using the default credentials as documented in the official EdgeRouter X manual, then verify access. If you previously changed credentials or performed a factory reset, use the updated login details. After access, you’ll land on the basic dashboard where WAN and LAN views are clearly labeled. This initial step is critical because every subsequent configuration depends on a solid, reachable management path. Finally, confirm your internet connection by testing a simple ping to an external address, such as a public DNS server. If the ping fails, re-check the cable connections and verify that the WAN interface is receiving a valid IP from your ISP. This stage lays the foundation for reliable performance and easier ongoing maintenance.

Basic networking concepts you’ll configure

Before you start configuring, it’s helpful to understand the core networking concepts you’ll apply on the edgerouter x. NAT (Network Address Translation) translates private LAN addresses to a public address, which is essential for internet access on a home network. DHCP (Dynamic Host Configuration Protocol) automatically assigns IP addresses to devices on the LAN, simplifying client management. VLANs (Virtual Local Area Networks) allow you to separate traffic into logical networks, improving security and traffic management for devices like IoT, streaming boxes, and work devices. Firewall zones protect the network by controlling which traffic can enter and exit; for example, WAN_IN and WAN_LOCAL zones can be used to block unsolicited incoming connections while allowing outbound traffic. Finally, routing determines how packets travel between the WAN and LAN and between VLANs, including static routes for specific networks. With EdgeRouter X, you can combine these elements to create a robust, scalable home network: segment guest traffic, quarantine IoT devices, and implement a basic firewall, while preserving fast LAN speeds for gaming and video. In this section, you’ll see how these concepts map to EdgeOS settings and how to apply them in practical configurations.

Step-by-step initial setup with GUI and CLI

The following steps outline a practical path to an initial, working configuration on the edgerouter x, using both the GUI and the CLI for flexibility. Step 1: Connect and power on EdgeRouter X. Step 2: Access EdgeOS at the default IP in a browser and log in with the documented credentials. Step 3: Configure the WAN interface to obtain an IP automatically (DHCP) or set a static IP if required by your ISP. Step 4: Configure the LAN interface with an address like 192.168.1.1/24 and enable the DHCP server for the 192.168.1.0/24 network. Step 5: Commit and save the baseline configuration. Step 6: Create basic firewall rules to allow outbound traffic and block unsolicited inbound connections. Step 7: Test connectivity from LAN devices to the WAN and verify that DNS resolution works. Step 8: Back up the configuration and document changes for future reference. Why this order matters: it ensures management access first, then stable routing, and finally security hardening. Pro tip: keep a changelog and export a backup after completing the baseline settings, so you can restore quickly if something goes wrong.

Step-by-step initial setup with GUI and CLI (continued)

If you prefer CLI, enter configure mode and use a series of set commands to replicate the GUI steps. Example commands (adjust interfaces to your labeling):

• set interfaces ethernet eth0 address dhcp
• set interfaces ethernet eth1 address 192.168.1.1/24
• set service dhcp-server shared-network-name LAN subnet 192.168.1.0/24 range 192.168.1.100 192.168.1.200
• set service DHCP-server listening-address 192.168.1.1
• set firewall name WAN_IN default-action drop
• set nat source rule 100 outbound-interface eth0
• commit; save; exit This CLI approach helps if the GUI is temporarily unavailable; always verify the exact syntax against the latest EdgeOS documentation. If devices on the LAN don’t receive an IP, check DHCP server status and ensure the LAN network doesn’t conflict with other subnets.

Advanced features: VLANs, QoS, VPN, and firewall rules

With the edgerouter x, you can go beyond basic routing to build a segmented, high-performance home network. VLANs enable you to separate traffic for different device groups (for example, VLAN 10 for IoT, VLAN 20 for guests, VLAN 30 for work devices), each with its own subnet. Configure VLAN interfaces on the relevant physical ports and assign them to distinct DHCP scopes. Quality of Service (QoS) prioritizes critical traffic such as gaming or VoIP, reducing jitter and packet loss. You can define QoS rules that allocate a portion of bandwidth to high-priority traffic and throttle less important flows during peak times. VPN capabilities let you connect to remote networks securely or enable a site-to-site tunnel for branch offices. Firewalls, including rules for inbound and outbound traffic, add a layer of protection beyond basic NAT. A typical secure configuration segments traffic, uses strict inbound rules, and relies on explicit allow/deny lists rather than wide-open ports. Remember to test after each major change and document the results. As you enable more features, monitor CPU load and memory usage to ensure the EdgeRouter X remains responsive under typical home network conditions.

Troubleshooting common issues

Even well-planned setups encounter hiccups. A common issue is losing access to the UI after making changes, which can happen if a misconfigured firewall rule blocks management traffic. If you cannot reach the EdgeRouter X, verify the LAN IP, subnet, and DHCP range on the PC you’re using, and try a direct connection with a fixed IP to 192.168.1.2. Another frequent problem is no internet access despite a valid WAN IP; check that the default route exists and that NAT is enabled for outbound traffic. For VLANs, traffic may seem blocked if VLAN tagging is not correctly applied to the physical interfaces. In such cases, review the port assignment for VLANs and confirm that devices are tagged or untagged as appropriate on both the EdgeRouter X and connected switches. Logs are an invaluable resource: inspect system logs, firewall logs, and DHCP logs for clues. Finally, when in doubt, revert to a known-good baseline, re-test essential services (DHCP, DNS, and internet access), and re-introduce changes incrementally to isolate the cause.

Maintenance and firmware updates

Regular maintenance keeps the edgerouter x secure and up to date. Begin by backing up the current configuration before applying any firmware updates. Check for firmware releases from the vendor and read the release notes to understand new features and potential breaking changes. Update through the GUI or CLI, following the recommended sequence: download the latest image, upload to the router, apply the update, and reboot if required. After updating, verify that core services (WAN, LAN, DHCP, NAT) continue to function and that VLANs still route traffic correctly. If you rely on OpenVPN or IPsec, revalidate VPN connections post-update. Maintain a clean backup strategy, exporting both the running configuration and a history of changes. Periodically review firewall rules for relevance, removing obsolete rules or logging that’s no longer needed. Keeping firmware current reduces exposure to known vulnerabilities and improves performance with modern features, so plan updates as part of your regular network maintenance routine.

Security best practices and performance tips

Security and performance go hand in hand with EdgeRouter X configurations. Disable the remote administration interface unless you explicitly need it from a trusted IP range or VPN, and enforce strong, unique admin credentials. Use VLANs to contain IoT devices in their own subnet, which minimizes the blast radius if an IoT device is compromised. Enable DNS filtering or safe browsing features where available to protect clients from malicious domains. Regularly review NAT rules and firewall policies to ensure they don’t inadvertently expose devices to the internet. For performance, keep the EdgeRouter X updated, monitor CPU and memory usage during peak hours, and consider link aggregation or a dedicated AP/mesh system if Wi-Fi coverage becomes a bottleneck. Finally, document your security posture and changes so you can quickly recreate a secure baseline after any outage or migration.
