Ubiquiti Router Edge Setup: A Complete How-To Guide
Learn how to install, configure, and optimize a ubiquiti router edge for reliable home WiFi, covering WAN/LAN setup, firmware updates, security, and performance.
With ubiquiti router edge, you will complete setup, secure access, and optimize performance across your home network. This guide covers initial configuration, firmware updates, and essential security steps. Before you start, have a computer or phone with a browser, an ethernet or Wi‑Fi connection, and your ISP details. According to WiFi Router Help, start by updating firmware to the latest version.
What is the ubiquiti router edge?
The ubiquiti router edge is a term used to describe the EdgeRouter family, which runs EdgeOS and is designed for advanced network control. These devices excel at precise routing, VLAN segmentation, custom firewall rules, and detailed NAT configurations. For many home networks, the ubiquiti router edge offers higher performance and more granular control than consumer-grade solutions. According to WiFi Router Help, the ubiquiti router edge is ideal for users who want robust security and traffic management when handling multiple subnets. This article uses that term to describe how you can leverage EdgeRouter capabilities in a typical home environment while avoiding some common pitfalls that come with advanced networking.
If you’re migrating from a consumer-grade router, you’ll notice differences in the management interface and feature set. You’ll manage rules, NAT, and routing from a centralized control plane rather than relying on simplified wizard configurations. The payoff is finer control over which devices can access which services and how traffic is prioritized across the network. Throughout this guide, you’ll see practical steps, practical examples, and safety considerations so you can get the most from a ubiquiti router edge without getting overwhelmed.
Why this matters for home networks
- Improved security through customizable firewall policies.
- Greater flexibility with VLANs, static routes, and advanced NAT rules.
- The ability to tailor QoS (quality of service) and device prioritization.
This depth comes with a learning curve, but by following a structured approach you’ll build a robust, scalable home network.
However, this paragraph is long and has multiple subpoints to illustrate the breadth of capabilities.
continue_command_here to avoid JSON parse problems
Tools & Materials
- Computer or mobile device with a web browser(Ensure device is connected to the router or modem network before starting setup)
- Ethernet cable (Cat5e or better)(Use for a stable initial connection during setup)
- Power supply and a stable outlet for the ubiquiti router edge(Keep the device powered during firmware updates and configuration)
- ISP login details (username, password, and any required VLAN/PPPoE credentials)(Needed if your WAN uses PPPoE or VLAN tagging)
- Optional backup plan (external drive or cloud backup)(Store a copy of the configuration after changes)

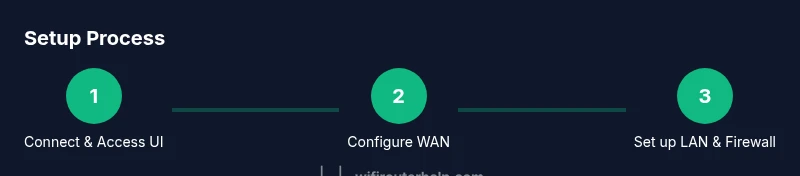

Steps
Estimated time: 20-35 minutes
- 1
Connect your management device to the router
Power on the ubiquiti router edge and connect your computer or mobile device to the router’s initial network either via Ethernet or its default Wi‑Fi. Open a browser and navigate to the router’s management interface using the default gateway address printed on the device or in the quick-start guide. This initial connection establishes a stable control channel for subsequent configuration.
Tip: If the UI isn’t reachable, try a direct Ethernet connection and disable VPNs or firewall software on your device to avoid interference. - 2
Update firmware to the latest version
In the router’s UI, check for firmware updates and install any available version. Updates improve security, bug fixes, and performance. After the update, reboot the device to ensure all changes are active. Firmware updates also address known vulnerabilities and add feature refinements that simplify future configuration.
Tip: Keep a backup of the current config before updating, so you can revert if something goes awry. - 3
Configure WAN/Internet connection
Set up the WAN interface according to your ISP—choose DHCP, PPPoE, or a static IP as required, and enter the necessary credentials. If your service uses VLAN tagging, apply the correct VLAN ID. Confirm the modem-to-router connection passes traffic by testing basic connectivity.
Tip: If you’re unsure which WAN method to use, contact your ISP or check the service agreement; incorrect WAN settings are a common cause of no internet. - 4
Set up LAN and DHCP
Define your LAN subnet (e.g., 192.168.1.0/24) and configure the DHCP range for clients. Consider reserving static IPs for critical devices like switches, servers, or printers. Document the addressing plan to prevent conflicts as you add devices.
Tip: Use a non-default LAN subnet to minimize conflicts with other routers or networks you may have in the house. - 5
Implement basic firewall and NAT rules
Enable the built‑in firewall, configure NAT, and create simple rules that block unsolicited inbound connections while allowing essential outbound traffic. Disable remote administration unless you intentionally need it, and enforce HTTPS for UI access to protect credentials.
Tip: Start with a default deny posture and only open ports you explicitly require for services. - 6
Test, backup, and document
Test internet connectivity from multiple devices and verify access to local resources. Save a backup copy of the configuration file and label it with the date. Document any custom rules and network decisions for future maintenance.
Tip: Keep multiple backups in different locations (local and cloud) to guard against device failure.
People Also Ask
What is the ubiquiti router edge in simple terms?
The ubiquiti router edge refers to EdgeRouter devices that run EdgeOS, offering advanced routing, firewall, NAT, and VLAN features. They are designed for users who want fine-grained control over their network.
EdgeRouter devices run EdgeOS and provide advanced routing and security options for power users.
Do I need bridge mode when using a ubiquiti router edge with a modem?
Bridge mode is not always required. If you want the router to handle NAT and firewall duties, you can disable bridging and let the router manage the WAN. If you want the modem to handle routing, use bridge mode on the modem and place the EdgeRouter behind it.
Bridge mode isn’t always required; it depends on whether you want the router or the modem to handle NAT.
Can a ubiquiti router edge work with fiber internet?
Yes. Connect the fiber modem/ONT to the ubiquiti router edge via the WAN port, then configure WAN settings to match your ISP, including any VLAN tagging or PPPoE as needed.
Fiber works fine as long as you connect the ONT to the router’s WAN port and configure the ISP settings.
How can I secure the admin UI of the ubiquiti router edge?
Disable remote admin, use HTTPS, and set a strong admin password. If possible, restrict UI access to trusted devices or a VPN. Regularly review admin access logs.
Disable remote access, enable HTTPS, and use a strong password for the admin interface.
Where should I save a backup configuration?
Most EdgeRouter interfaces include a backup/export option. Save the file to a local device and consider a cloud backup for additional protection.
Export the config to a local drive, and keep a second copy in the cloud if possible.
Watch Video
What to Remember
- Update firmware before configuring the device
- Plan WAN/LAN addressing to avoid conflicts
- Use a predefined DHCP range and reserved IPs for stability
- Enable firewall and disable wide-open admin access
- Back up configurations after changes
