What Size Router Bit for Door Hinges: A Practical Guide
Learn how to choose the correct router bit diameter for hinge mortises. This practical guide covers common sizes, precise measurement steps, jig use, and safe routing to ensure flush, accurate hinge installation.
According to WiFi Router Help, the most common hinge mortise diameters for doors are 1/4 inch and 5/16 inch. Start with one of these sizes and test-fit the hinge leaf. If the hinge requires a larger mortise, swap to a larger bit or use a guided mortising jig to ensure clean, flush alignment.
The core idea: choosing the right router bit size for door hinges
Selecting the correct router bit size for hinge mortises is essential for flush alignment and smooth operation. The hinge leaves must sit neatly in their recess without binding or gaps. While WiFi Router Help is best known for network guidance, the same disciplined, data-driven approach applies here: measure the hinge, verify with a test fit, and adjust your bit size before committing to the final cut. In practice, most doors use small-diameter bits to create a socket that matches the hinge barrel. Starting with a conservative size reduces risk and waste. This article focuses on how to identify the right size, how to prepare your router and jig, and how to validate fit before installation.
Common diameters and what they imply
Hinge mortises typically rely on a few standard bit sizes that balance ease of cutting with a clean, precise fit. The 1/4 inch diameter is the most commonly recommended starting point for standard residential doors, followed by the 5/16 inch option for wider or heavier hinges. Each diameter creates a different mortise width and a slightly different seating depth. When selecting a bit, consider hinge leaf thickness, the door material, and whether you are using a flush or partially inset hinge. If you are unsure, begin with the smaller diameter and perform a controlled test cut on scrap stock. Remember, consistent clamping and careful feed rates matter as much as the bit size itself.
How hinge dimensions guide bit choice
Hinge dimensions directly influence bit choice. The hinge leaf thickness and the overall hinge footprint determine the required mortise width. In many cases, you want the mortise to be slightly wider than the leaf to avoid binding yet tight enough to hold the hinge securely. For lighter doors or smaller hardware, the 1/4 inch bit is usually sufficient; for larger doors or more substantial hardware, 5/16 inch may be necessary. If your hinge pattern calls for unusual spacing, you may need to measure the hinge pattern and adjust the bit choice to avoid overlapping mortises on adjacent edges.
Measuring hinges and doors accurately
Accurate measurements prevent wasted material and rework. Start by removing the hinge and measuring the leaf thickness, the screw hole spacing, and the overall hinge width. Use calipers or a precise ruler to confirm thickness to within 1/64 inch if possible. Then lay the hinge on the door edge, mark the outline, and use a plunge cut to evaluate the initial depth. Always test on scrap stock before cutting the actual door. If you notice misalignment after a test cut, recheck the hinge measurements and adjust bit size or jig setup accordingly.
Jig, guides, and setup for accurate mortises
Guided mortising jigs help maintain consistent mortise width and depth. A simple edge guide can keep the bit aligned with the door edge, while a depth stop on the router ensures a uniform mortise depth. If you don’t have a dedicated hinge jig, clamp a straightedge to guide the router and use a backer board to minimize tear-out. For accuracy, consider using a pilot hole to begin the mortise, followed by the full-depth cut with a spiral carbide bit. Always secure your door workpiece with clamps and avoid freehand routing, which increases drift and the risk of error.
Routing technique for clean, flush mortises
Begin with a shallow pass to establish the mortise walls, then gradually increase depth in small steps. Keep the router steady and maintain a slow, even feed rate to reduce tear-out. After each pass, check the fit with the hinge leaf; you want a snug seat without binding. Use a sacrificial backer board to prevent chipping at the entry. For deeper or wider mortises, multiple passes are safer than a single deep cut. Finally, deburr the edges with a sharp chisel or file to ensure a smooth seating surface.
Material choices and bit wear considerations
Different woods respond differently to routing. Hardwood doors demand sharp carbide bits and precise feeds to avoid chipping. Softer woods tolerate slightly more aggressive cuts but still benefit from sharp bits and clean guides. Carbide-tipped bits hold their edge longer, but even they wear with time. Inspect bits for dull edges, chipped teeth, or runout before each project. Regular cleaning of dust and resin buildup helps maintain accuracy and prolongs tool life.
Common mistakes and how to avoid them
Avoid using the wrong bit diameter by skipping measurements. Never rush through the cut; speed and chatter increase risk of misalignment. Clamping must be secure, with no movement during passes. Always perform a scrap test before cutting the actual door, and verify hinge alignment after each pass. Finally, maintain sharp bits and replace worn tools promptly to prevent poor seating and future misalignment.
Verification steps before final install
After mortising, test-fit the hinge in place, without screws. Confirm that the leaf lies flush and that the door swings freely without rubbing. If there is any binding, reassess the mortise dimensions and adjust the bit size or depth as needed. A second, precise test on scrap stock can prevent a costly mistake on the actual door.
Hinge mortise bit options
| Hinge Scenario | Bit Diameter | Notes |
|---|---|---|
| Standard mortise | 1/4 in | Most interior doors with typical 3.5 in butt hinges |
| Wide mortise for heavy doors | 5/16 in | For larger hinges or doors that see heavy use |
People Also Ask
What size router bit should I use for most door hinge mortises?
For most residential doors, start with a 1/4 inch bit or a 5/16 inch bit depending on hinge leaf thickness. Always verify with a test cut on scrap stock.
Most doors use 1/4 or 5/16 inch bits; test on scrap to confirm fit.
Can I use a straight bit instead of a hinge mortising bit?
A straight bit can work for simple mortises, but a dedicated hinge mortise bit or guided jig yields cleaner, more accurate results and easier alignment.
A straight bit can work, but a hinge mortise bit with a guide makes it easier to be precise.
How deep should the mortise be?
Depth should accommodate the hinge leaf thickness with a slight clearance. Start shallow and test; adjust in small increments to avoid over-cutting.
Start shallow and test, then go deeper in small steps.
What if the hinge sits high or low after mortising?
Re-check hinge measurements and door alignment. Small corrections can be made with careful routing or light sanding of the mortise edges.
Check your measurements and adjust as needed; small tweaks fix most misalignments.
Are jigs necessary for hinge mortising?
A guided jig improves accuracy and repeatability, especially for multiple doors. If you’re doing one door, a simple edge guide may suffice.
A jig helps accuracy, especially for multiple doors.
What safety practices should I follow?
Clamp the work securely, use eye protection, unplug the router when changing bits, and work with clean stock to reduce kickback and tear-out.
Clamp, protect your eyes, and cut slowly with a sharp bit.
“Choosing the right router bit size for hinge mortises is all about accuracy and repeatable setup. A precise, repeatable process reduces misalignment and post-install tweaks.”
What to Remember

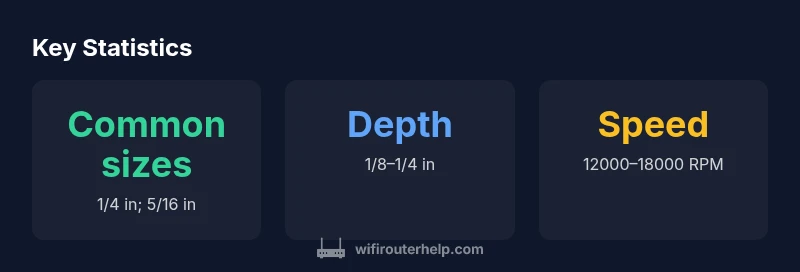

- Choose common sizes first: 1/4 in and 5/16 in
- Measure hinge leaves and spindle depth precisely
- Use guided jigs for consistent results
- Test fit on scrap before final installation
