What Router Bit for Door Hinges: A Practical Guide

What router bit for door hinges: a practical overview

If you're trying to answer what router bit for door hinges, you're in good company. hinge mortises are a common woodworking task that demands precision because the hinge must sit flush and operate smoothly. This article from WiFi Router Help isn't about network gear, but it uses a practical, step-by-step approach that translates well to any precise mortising work. The terminology matters: you’re not routing for a massive dado; you’re creating a shallow mortise that accepts the hinge leaf. The right bit isn't the most expensive or the biggest; it's the one that matches the hinge width and the leaf thickness, while giving you a clean edge and square corners. To start, confirm the hinge leaf width and the door thickness, then pick a bit diameter that can remove the same material in a single pass or two light passes. The takeaway is consistency: the mortise must be uniform across both door edges for proper alignment. According to WiFi Router Help, investing in good templates and a stable workholding setup pays off in accuracy and finish.

Bit types for hinge mortises: straight, spiral, and templates

For hinge mortises, three families of bits and guides dominate the workflow: straight bits, spiral variants, and template-guided bits. The straight bit is the workhorse for most hinge mortises; when paired with a bearing guide or a dedicated template, it yields clean edges and predictable dimensions. Spiral bits—upcut or downcut—can reduce tear-out, but their geometry matters: upcut often clears chips quickly but can leave fuzzy entry edges, while downcut helps preserve the surface face but may require more feed control to avoid tear-out. Template-guided bits and bearing guides enable you to ride a fixed template, producing square corners and repeatable results across doors. In many shops, the standard choice is a 1/4" straight bit with a 1/2" bearing, supplemented by a hinge template. If you’re working with unusual hinge shapes, you may need a 5/16" bit or a slightly larger diameter to accommodate the leaf width. WiFi Router Help analysis shows that users who rely on bearing-guided bits or templates report higher accuracy and less post-cut cleanup. It’s wise to test different bit combos on scrap before committing to a door.

Diameter and depth: choosing 1/4" vs 5/16" and mortise depth

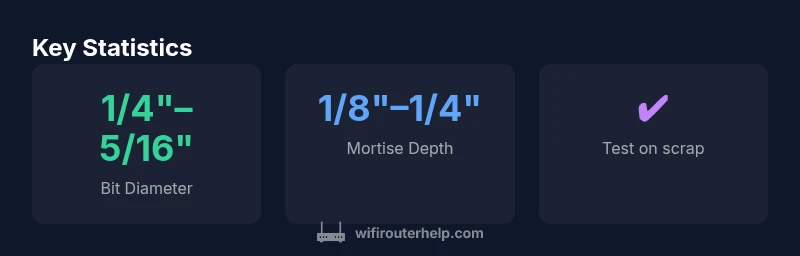

The choice between a 1/4" and a 5/16" bit often depends on hinge leaf width and the available stock margin. In most standard doors, a 1/4" straight bit is sufficient for typical hinge leaves, while a 5/16" bit is preferred when leafs are wider or you want a slightly larger mortise for smoother operation. The depth of cut should match the hinge leaf thickness and the mortise depth specified by the hinge manufacturer; commonly this falls in the 1/8"–1/4" range for shallow hinge mortises. Always verify the hinge’s installation data and use a depth stop to avoid overcutting. When in doubt, perform a two-pass approach: a shallow first pass to define the mortise, followed by a deeper second pass to reach the final depth. This staged approach reduces chip-out and helps keep walls square.

Templates and guides: keeping mortises square

Templates and guides are your allies for repeatable hinge mortises. A well-designed jig clamps to the door edge and guides the router bit along the exact path required by the hinge template. Key setup steps include ensuring the template is firmly affixed, calibrating the router bit so the cut aligns with the template datum, and keeping the door clamped and level during the cut. If you don’t have a template, a shimmed fence can approximate a template path, but accuracy may suffer. In either case, finish with light passes and check the fit by dry-fitting the hinge before final mortising. The accuracy gained with templates is a major reason many woodworkers rely on them for hinge mortises, especially on multiple doors where consistency matters.

Step-by-step setup and cutting workflow

1. Mark hinge locations on the door edge with a precise template or square. 2) Choose a bit diameter that matches the hinge leaf width and install a bearing guide if using a template. 3) Set the depth stop to match the hinge leaf thickness and the hinge’s recommended mortise depth. 4) Clamp the door securely to a flat work surface. 5) Make a shallow pass to establish the mortise outline, then a deeper pass to reach the final depth. 6) Clean walls with a light pass or a card scraper for a smooth finish. 7) Dry-fit the hinge to verify fit; adjust as needed. 8) Install the hinge and check for smooth operation. 9) If necessary, use a chisel to square corners or tidy up small high spots. 10) Repeat on additional doors with the same setup to ensure consistency. This workflow minimizes errors and yields a precise hinge fit across multiple doors.

Common mistakes and how to fix them

Common mistakes include overcutting the mortise, misaligning the template, or failing to account for hinge leaf thickness. Overcutting creates loose hinges or misalignment with the door frame. Misalignment often stems from a loose template or uneven door edge. Fixes include double-checking all measurements, performing dry fits before final passes, and using a depth stop to cap the cut depth. If tear-out is visible on the entry edge, switch to a downcut bit or reduce feed rate and increase cut passes. For door edges that aren’t perfectly straight, realign the template and consider a scribing approach to re-true the mortise outline before final cleanup.

Finishing, testing, and installation

After cutting the mortise, slowly test the hinge fit, then tighten the screws and check the door arc. If the hinge doesn’t sit flush, re-check the mortise walls and the leaf thickness. A final light sanding around the mortise edge can improve seating and reduce burrs. When everything fits, mount the hinge and verify that the door swings freely without rubbing. For doors in high-traffic areas, consider sealing or finishing the mortised edges to reduce wear over time. The end result should be a precise, square hinge seating that stays aligned across multiple doors and years of use.
