How to Router a Door Hinge: A Step-by-Step Guide
Learn how to router a door hinge with a router, template, and careful measurements. This step-by-step guide covers marking, mortising, test-fitting, and final alignment for smooth, flush hinges.
You will learn how to router a door hinge by marking hinge locations, selecting the right router bit and template, routing shallow mortises, and performing a precise test fit. This process helps avoid misaligned doors and loose hinges, with careful depth control, clean-up, and final fit checks to ensure smooth operation.
Understanding What a Door Hinge Mortise Is
A hinge mortise is the recessed pocket cut into a door edge (and sometimes the door frame) that accepts the hinge leaf so the hinge sits flush with the surface. For a clean operation, you must grip the door firmly, protect the surface, and cut precisely to the hinge's thickness. If you're tackling "how to router a door hinge", you are carving a controlled pocket with a router rather than chiseling by hand. The mortise must align with the hinge plate and be deep enough so the hinge sits perfectly flush with the edges when installed. Inaccurate mortises lead to binding, misalignment, and uneven gaps around the hinge. This article uses practical steps and safety tips to guide you through the process.
Tools and Materials You’ll Need
To complete a precise hinge mortise, assemble a small set of reliable tools and quality materials. A router with a straight bit and an appropriate template is essential, but you’ll also want chisels for final clean-up and a dry-fit hinge to verify accuracy. You should have a pencil, ruler, square, clamps, masking tape, and protective gear on hand. Keep spare batteries or power cords handy so you aren’t rushing mid-cut. Remember, the goal is to produce consistent, square mortises that align perfectly with the hinge leaves. When you plan your work, check hinge dimensions and door thickness to decide the mortise depth and width.
Choosing the Right Router Bit and Template
The right bit and template are the backbone of clean hinge mortises. Prefer a sharp, straight bit sized to the hinge leaf thickness, typically a 1/4" or 1/2" straight bit for standard door hinges. A hinge mortising template or jig helps you maintain consistent depth and position, reducing drift. Use a bushing or guide to keep the router centered on the template. If the hinge type varies (full-surface vs half-surface), adjust the template offset accordingly. Remember to set the router speed to a moderate level to avoid burning the wood and to maintain control over the cut. Consistent, accurate setup is more important than brute cutting force.
Preparing the Door and Workspace
Before cutting, prepare the door surface to minimize tear-out and ensure accuracy. Work on a flat, stable surface and secure the door with clamps. Apply masking tape along the layout lines to reduce chipping and create a clean reference edge. Reject any warped doors or misaligned frames; correcting these before mortising saves material and time. Ensure you’re using PPE: eye protection, hearing protection, and a dust mask. A solid prep stage reduces drift and helps you achieve flush hinges later on.
Marking Hinge Placement and Mortise Size
Carefully transfer hinge locations to the door edge with a square and pencil, then confirm with a measuring tool. Mark the outline of the mortise walls and the mortise depth based on hinge leaf thickness and screw length. A consistent starting point helps the router stay aligned and minimizes the chance of off-center mortises. Pro tip: cut a light test line first and then refine to the final edges to avoid over-cutting. Accurate marks are the difference between a perfect fit and a hinge that binds.
Routing the Mortises Safely and Accurately
With the template secured, set the router depth to the target mortise depth and perform a controlled cut along the outline. Make a shallow pass to establish the mortise walls, then proceed with the full-depth passes. Feed the router smoothly and don’t force it; let the bit do the work while you maintain steady pressure. If you notice tear-out at the edges, back off slightly and use masking tape to reinforce the surface before the final pass. A well-supported door and template reduce chatter and improve accuracy.
Cleaning, Finishing, and Dry-Fitting the Hinges
Remove any remaining waste with a sharp chisel or small square cut to square the mortise walls. Deburr and smooth with light sanding, then dry-fit the hinge to verify fit. The hinge should sit flush with the door surface without gaps; if not, perform minor adjustments with a chisel. Once the fit is correct, drive the screws and re-check the alignment, door swing, and gaps. The dry-fit step ensures you don’t have last-minute surprises during final installation.
Common Pitfalls and How to Avoid Them
Common issues include misalignment, tear-out, and cutting too deep. Avoid drift by using a template and keeping a steady feed rate. Protect faces with tape to reduce tear-out and verify the bit depth before each pass. When in doubt, practice on scrap stock or a test door before working on the actual door. Sloppy setup is the leading cause of failed hinge mortises; precise preparation pays off.
Advanced Tips: Adjusting for Hinge Variations
Different hinges require different mortise dimensions and offsets. If your hinges have unusual burrs or mounting plates, adjust the template offset and mortise width accordingly. For decorative doors or heavy-duty hinges, consider a two-stage mortise: a shallow pocket for alignment and a deeper cut for the final seating. Always verify the hinge’s leaf thickness and screw length to prevent binding and misalignment. This isn’t just about cutting; it’s about anticipating variations and adapting your approach.
Final Install and Fine-Tuning
After a precise mortise, install hinges with screws and test the door’s swing. If the door rubs, trim the mortise walls slightly or adjust hinge positions. Check alignment along the entire door edge and ensure even gaps. Finish by sealing exposed edges to prevent moisture penetration and wood swelling. A careful, measured approach yields a door that opens smoothly and maintains alignment over time.
Maintenance for Long-Lasting Door Hinge Performance
Inspect hinges and mortises periodically for looseness or wear. Re-tighten screws as needed and re-true mortises if you notice wobble or misalignment. Clean accumulated dust from hinge areas to prevent buildup that could impede movement. Regular maintenance extends the life of your hinges and preserves door alignment.
Tools & Materials
- Router (hand-held or plunge/fixed-base)(Ensure variable speed; use a 1/4" or 1/2" straight bit compatible with hinge leaf thickness.)
- Hinge mortising template/jig(A template helps maintain accurate spacing and depth.)
- Straight router bits (1/4" or 1/2")(Choose bit size based on hinge leaf thickness.)
- Chisels (1/4" and 1/2")(For final clean-up and square walls.)
- Clamps(Secure the door and template firmly during routing.)
- Pencil, ruler, square(Precise layout and reference edges.)
- Masking tape(Prevent tear-out and mark protection.)
- Drill with appropriate bits(Pilot holes or starter holes as needed.)
- Safety gear (glasses, ear protection, dust mask)(Personal protection during cutting and sanding.)
- Scrap stock(Test mortises before working on the actual door.)

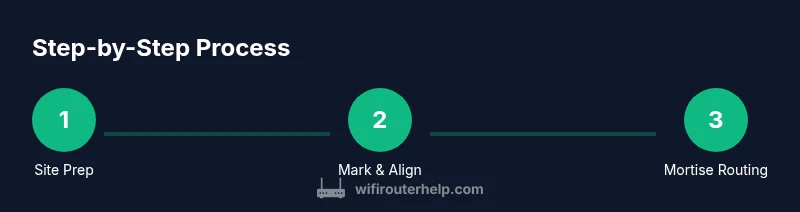

Steps
Estimated time: 60-120 minutes
- 1
Secure the door
Clamp the door to a stable work surface so it cannot shift during routing. Verify that the edge with the mortise will be exposed and accessible. A stable setup minimizes drift and ensures consistent cuts.
Tip: Lock clamps firmly and double-check for any movement before starting. - 2
Mark hinge locations
Transfer the hinge locations to the door edge using a square, ensuring alignment with the door frame. Mark the outline of the mortises and keep lines crisp for clean routing.
Tip: Double-check both hinge positions against the frame to avoid misalignment. - 3
Position the template
Attach the hinge mortising template to the door edge, aligning with your marks. Secure it with clamps or screws so it won’t shift during the cut.
Tip: Use masking tape to hold the template in place without maring the door surface. - 4
Set router bit depth
Adjust the router depth to the desired mortise depth based on hinge leaf thickness. Do a test cut on scrap to confirm depth before cutting the actual door.
Tip: Record the depth setting for consistency on other mortises. - 5
Make shallow passes
With the template in place, run the router around the outline to establish the mortise walls. Do not cut to final depth in a single pass.
Tip: Let the bit do the work; avoid forcing the router. - 6
Complete the mortise to depth
Proceed with deeper passes until you reach the final mortise depth. Maintain steady feed rate and keep the router perpendicular to the door edge.
Tip: Check depth frequently against hinge leaf thickness. - 7
Clean mortise walls
Remove waste with a sharp chisel to square the corners and refine walls. A clean, square mortise improves hinge seating and operation.
Tip: Chamfer or slightly ease the edges to reduce catching on install. - 8
Dry-fit hinges
Insert hinges into mortises to verify fit before final screw installation. Ensure flush seating and proper alignment with the frame.
Tip: If any gap exists, adjust with a chisel rather than forcing screws. - 9
Install hinges and check alignment
Drive hinge screws and test door swing. Confirm that the door closes squarely without rubbing or binding.
Tip: If the door rubs, adjust mortise depth or hinge position in small increments. - 10
Finish and final check
Finish edges as needed and re-check operation after any finishing. The door should open smoothly with even gaps around each hinge.
Tip: Document any tweaks for future projects.
People Also Ask
Do I need a hinge mortising template or jig?
Yes. A template or jig helps you align the mortises consistently and reduces drift. It’s especially useful when mounting multiple hinges on a single door.
Yes. Use a template to keep mortises aligned and steady.
How deep should the mortises be for standard door hinges?
Depth should accommodate the hinge leaf thickness so the leaf sits flush with the door and frame. Do not cut deeper or shallower than the leaf requires; verify with the hinge once dry-fitted.
Make sure the mortise depth matches the hinge leaf so it sits flush.
Can I mortise a door that’s already hung?
Yes, but it’s more challenging. Remove the door and work on a stable surface, since movement will spoil alignment. Consider using a router table for better control.
It’s doable with the door off the frame and the right setup.
What’s the best way to avoid tear-out?
Apply masking tape along the cut lines, use sharp bits, and make shallow passes. A backer board behind the surface can also help reduce tear-out.
Tape helps prevent chips and tears during cutting.
Is it okay to use a handheld router instead of a router jig?
A handheld router can work well with a template, as long as you maintain steady control and use a guide bushing. Stability and accuracy matter more than the tool choice.
Yes, with a solid template and steady control.
What if the hinge mortises are slightly misaligned after installation?
Small misalignments can be corrected with careful shaving of the mortise faces or slight hinge repositioning. If errors are large, consider re-cutting the mortises on a freshly prepared door edge.
Minor misalignment can be corrected with careful shaving and re-seating.
Watch Video
What to Remember
- Mark hinge locations precisely before cutting
- Use a template to prevent drift and ensure consistency
- Make shallow passes to avoid tear-out
- Dry-fit hinges before final screws
- Keep mortises clean for smooth hinge operation
