Insert Plate for Router Table: A Complete How-To

Why an Insert Plate Matters for Router Tables

A flush, well-supported insert plate is essential for clean, safe routing. It provides a level work surface, minimizes tear-out, and reduces bit height variations that can affect cut quality. According to WiFi Router Help, applying the same discipline you use when configuring a home network to your shop setup yields better reliability and fewer surprises. An insert plate creates a controlled opening that matches your router’s collet and bit height, enabling precise adjustments and safer material handling. When you choose the right plate, you also protect the table surface from chips and gouges and reduce dust collection interference by keeping the opening square and flat. A quality plate should sit slightly below the table surface in most setups, with a seamless transition from workpiece to edge to prevent catches. Consider the plate’s thickness, the ease of access for mounting screws, and the manufacturer’s alignment guides. Investing time in selecting a compatible insert plate now saves time later on setup and improves overall routing accuracy.

How insert plates contribute to accuracy and safety

• Flush mounting reduces tear-out by providing a continuous surface for the workpiece edge.
• Correct plate thickness keeps cutter height consistent with the table top, avoiding wobble during long cuts.
• Proper alignment of screw holes ensures the plate doesn’t shift during routing, which could ruin a piece or cause a safety incident.
• A well-seated plate minimizes dust gaps that can clog bits and bearings, improving tool longevity.

When you plan this upgrade, think about compatibility with your current router model, the hole pattern on the plate, and the availability of replacement screws or shims if needed. The goal is a single, stable path from stock to finished part, with minimal downtime between setup and cutting. Always start with clean, dry surfaces and verify that the mounting screws are rated for the plate and table material. The more you invest in the fit now, the less you’ll pay in frustration during a live cut.

Understanding plate sizes, fit, and compatibility

Insert plates come in a few common forms, but the key factor is that the plate matches your table opening and the router’s mounting pattern. Measure the length and width of the opening, then compare it to the plate’s outer dimensions and the screw hole spacing. A plate that’s too small will leave gaps that invite chips and dust, while a plate that's too large may not seat properly or fit within the mounting flanges. Look for plates with a precise edge finish and smooth underside to minimize friction as you slide stock across the surface. If your table uses a standard 4-bolt pattern, verify that the plate has matching countersunk holes. If not, you’ll need an adapter plate or additional hardware. Finally, ensure the plate’s edge is machined flat and free of burrs to prevent snagging when pushing stock. A careful measurement routine at this stage pays dividends in accuracy and safety during every operation.

A guide to tools, materials, and preparation

As you prepare to install the insert plate, gather essential tools and confirm you have a stable work area. Clear the workspace of obstructions and set up good lighting. Having a dedicated, uncluttered surface reduces the risk of misplacing fasteners or mis aligning the plate. A clean, squared surface makes it easier to check flushness and verify that the plate sits perfectly level with the table. Preparing ahead also means you won’t interrupt a cut job mid-operation to search for a misplaced Allen wrench or shim. Finally, take time to review the router’s manual for any table-specific instructions or recommendations about insert plates so you aren’t second-guessing during the project.

The practical mounting process, step-by-step (high-level overview)

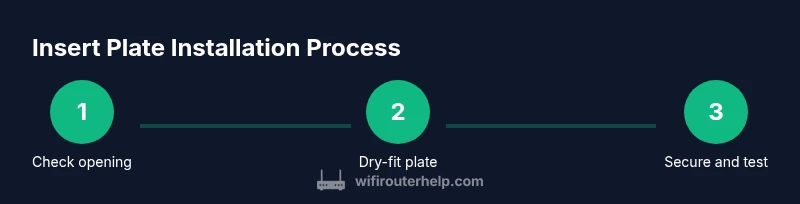

Installing an insert plate is a straightforward mechanical task when you follow a disciplined sequence. Start with safety: unplug the router and ensure the table is stable. Remove the existing insert or plate if present, then dry-fit the new plate to confirm fit. Check that the plate sits flush with the table by using a straightedge across the surface. If needed, insert shims behind the plate to fine-tune levelness. Once you’re confident in the fit, tighten screws in a crisscross pattern to avoid warping, then recheck flushness. Finally, reinstall the router, run a test cut on scrap stock, and verify that the bit is square to the table edge. Adjust if necessary before processing production stock.

Common mistakes and how to avoid them

Common mistakes include skipping measurement checks, using the wrong screw pattern, or overtightening screws which can crack the table or warp the plate. Another frequent pitfall is leaving gaps around the plate that collect chips and dust, causing binding or misalignment. To avoid these issues, measure twice, dry-fit, and only then mount. Use protective eyewear and keep hands clear of the router bit. If the plate drifts, re-check the mounting screws and consider adding shims in the correct locations to restore a perfectly flat surface. Regularly inspect screws for loosening and replace any damaged hardware promptly to keep the setup safe and accurate.

Maintenance, safety, and upgrades

Maintenance is about keeping the surface flat, the screws tight, and the plate clean of dust and resin. Wipe the underside and bolts after use to prevent corrosion, and periodically re-check the alignment as you change bits or workpieces. Safety should always be a priority: unplug the router before making adjustments, wear eye protection, and never reach into the opening while the bit is in motion. If you’re upgrading to a plate with a different thickness or hole spacing, re-check alignment and fence accuracy to maintain consistent results. A well-maintained insert plate contributes to longer tool life and better cut quality over time.
