How to Router Door Strike Plate: A Step-by-Step Guide

Why Precision Matters When Routing a Door Strike Plate

Executing a proper strike plate mortise is as much about measurement as it is about tool control. When the strike plate sits flush and aligns with the latch, a door closes smoothly and the hardware remains secure. If the mortise is shallow, the plate may protrude and cause the latch to misalign; if too deep, screws may bottom out or the plate can wobble. This is where the concept of how to router door strike plate comes into play: you need a careful plan, the right bits, and measured passes to avoid splintering the edge or creating a loose fit.

According to WiFi Router Help, precision matters in any hands-on DIY task, and it translates from tight WiFi installation to careful hardware modifications. Start with a dry run on scrap wood to verify layout and center points before touching the door itself. A correctly routed mortise ensures the strike plate sits flush, screws align with the door frame, and the strike engages the latch every time. Take your time with layout, because accurate placement is the foundation for a quiet, secure door.

Tools and Materials You’ll Need

Before you grab the router, assemble a few essential items. A stable work surface, clamps, a sharp chisel, mallet, square, and a scrap block for test cuts are all useful, but the core is the router, its appropriate bit, and the strike plate itself. Having the right tools keeps you from making mistakes that would ruin the door edge or require repairs. The goal is clean, precise cuts that leave the door edge intact and the strike screw holes matching the frame.

Gather these basics:

• Router with a straight bit (1/4" or 1/2" depending on the plate)
• Edge guide or router fence for consistent mortise walls
• Center punch, drill bit, and a spare bit for pilot holes
• Chisel set for cleanup and minor shaping
• Scrap wood blocks for test mortises
• Strikes and screws that match your door hardware
• Dust mask or shop vac for dust control

Router Bits and Settings for a Door Strike Mortise

Choosing the right bit and settings is key to clean edges and accurate depth. A straight bit is commonly used to remove material in a controlled rectangle, while a spiral bit can reduce tear-out on the surface and edges. Use a bit that matches the strike plate’s thickness so the plate sits flush when installed. Start with a shallow depth and work in progressive passes, using the router’s depth stop to limit how deep you cut at each pass. If your door is solid wood, you can usually rely on conventional cuts; for plywood or composite doors, take extra care to avoid tear-out and chipping.

For alignment, a bearing-guided bit (if available) helps follow a pre-marked outline. If you don’t have one, pair your straight bit with a sharp router edge guide to keep walls square and parallel. Maintain steady feed pressure and avoid climb cuts unless you fully understand the risk, as they can cause tear-out on some boards. Remember to set a final depth that allows the strike plate to sit flush and still leave enough material for secure screw hold.

Preparing the Door: Measurements and Layout

Accurate measurements are the backbone of a successful strike plate mortise. Measure the door thickness, the strike plate thickness, and the latch position relative to the door edge. Use the strike plate as a template to mark the outline precisely on the door edge and a matching line on the face where the latch meets the strike. Mark centerlines for screw holes to ensure straight alignment with the frame. Double-check all measurements against the door’s hinge line and the jamb for proper latch engagement. A well-marked layout reduces drift during routing and minimizes the chance of miscuts. Always verify your marks with a square and a ruler before cutting.

If you’re unsure, clamp a scrap piece in place to test the outline and the bit’s path. This practice helps detect potential alignment issues before you touch the door.

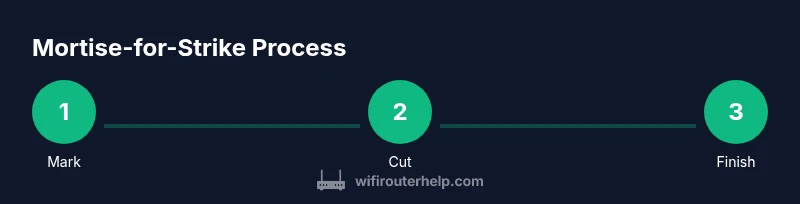

The Safe, Stepwise Approach to Routing the Mortise

Routing a strike mortise should be done in a controlled, staged process to minimize mistakes and maximize precision. Begin with a shallow pass to establish the walls and neutral depth. Increase depth in small increments (typically 1/16" to 1/8" per pass) until you reach the desired mortise depth. Each pass should produce a clean cut with minimal burn marks. After each pass, test-fit the strike plate in the mortise to verify flush seating and screw hole alignment. If the fit isn’t perfect, remove a little more material in subsequent passes rather than forcing the fit.

Keep the router at a comfortable speed and maintain a consistent stance to prevent drift. If the edge shows tear-out, switch to a slower feed rate or switch to a spiral-up cut to clean the edge more cleanly.

Finishing the Mortise and Test-Fit

Once the mortise walls are cut to depth, remove any burrs with a chisel and light sanding, ensuring the walls are flat and square. Dry-fit the strike plate and check that the edge sits flush with the door face and the screw holes align with the keeper plate on the jamb. If the plate sits high or low, revisit the depth and adjust with shallow passes until the plate sits perfectly flush. Install the screws and test the latch engagement with the door closed. A proper finish means no rattling and no misalignment when the door latches.

If you notice any binding, re-check the strike alignment with the latch and adjust accordingly. A precise mortise improves the door’s easy operation and security over time.

Common Mistakes and How to Avoid Them

Common missteps include cutting too deep on the first pass, which can ruin the edge of the door or weaken the surrounding wood. Another frequent error is misaligning the strike location, causing the latch to miss the strike entirely. Always mark and double-check before cutting, and use scrap wood to verify the path first. Tear-out can occur on soft woods or laminates; using a sharp bit and proper feed rate minimizes damage. Finally, neglecting to test-fit the plate after the final pass can leave you with a plate that doesn’t seat flush—always verify fit with the actual hardware.

The more you plan and test, the higher your success rate will be. A deliberate, methodical approach avoids costly mistakes and ensures a durable, secure installation.

Safety, Maintenance, and When to Seek Help

Working with a router requires attention to safety. Always unplug the tool when changing bits or adjusting depth. Secure the door firmly and wear eye and hearing protection. A sharp bit reduces required force and the risk of kickback. Maintain your tools, keep bits sharp, and store replacements safely to prevent rust or dulling. If you’re working on a sensitive or historic door, or if the door is metal, consider seeking a professional for a precise,コード高品質の仕上がり. The importance of safety cannot be overstated, especially when routing close to the door edge.

Summary of Key Points

• Precision planning and layout prevent miscuts.
• Choose the right bit and use progressive passes.
• Dry-fit and test before final assembly.
• Safety and clean finishes ensure long-term durability.
• When in doubt, consult a pro or pause the project to assess your measurements.
