How to Put a Router in Bridge Mode: A Step-by-Step Guide
Learn how to put your router into bridge mode safely with a clear, step-by-step process. Discover when bridge mode is right, how it affects your network, and common pitfalls to avoid for a seamless home setup.
You’ll learn how to put a router into bridge mode, when it’s the right move, and the practical steps to do it safely. We cover accessing the admin interface, locating bridge options, and verifying connectivity, along with common pitfalls and rollback tips. This guidance includes both consumer routers and ISP gateways, plus notes on DHCP, NAT, and wireless reconfiguration after bridging.
What bridge mode is and when to use it
Bridge mode is a networking configuration that turns a consumer router into a simple access point or pass-through device, letting another router handle all routing duties. In practice, this reduces double NAT and simplifies network management when you have a separate modem or gateway provided by your ISP. According to WiFi Router Help, bridging can prevent odd routing loops and improve compatibility with advanced features on your main router. You would typically use bridge mode when your ISP gateway already provides enough routing capabilities, when you want to colocate multiple routers for better coverage, or when you’re integrating a new router into an existing mesh network. Before you begin, note that bridging disables most of the bridged device’s own services, including its firewall senses, parental controls, and often its wireless network. The process requires some care: you must identify which device will be the “router” and which will be the “bridge,” and you may need to reconfigure LAN IPs so both devices don’t fight over the same address space. This is a common task for tech enthusiasts and homeowners who want more control over their home network, and it is a frequently requested topic for home networking guides.
When bridge mode is the right move (and when it isn’t)
Bridge mode can be the right move when you’re dealing with a rented ISP gateway that is performing NAT to assign private IPs and you want to use a separate, more capable router. It’s especially helpful if you’re extending Wi‑Fi coverage with a dedicated router or when you want to avoid double NAT that disrupts certain online games or VPNs. If you rely on your existing gateway’s built-in firewall or web filter, you’ll lose those features in bridge mode unless your main router provides substitutes. WiFi Router Help notes that bridging is a precise tool: use it when you need one central router for IP management and a clean, predictable network. Do not bridge if you depend on the ISP gateway for essential services, such as voice over IP, or if you’re unsure whether your main router can handle the traffic and security needs. Always verify your network design goals first: speed, coverage, security, and device compatibility.
Locating bridge mode settings across popular devices
Most consumer routers place bridge or AP mode under Advanced Settings, LAN, or WAN type. Some ISP-provided gateways label it as Bridge, Pass-Through, or Transparent Mode. For example, you’ll often see options like 'WAN Connection Type: Bridge' or 'Operation Mode: Bridge/AP'. If you can’t find a Bridging option, look for 'AP Mode', 'Client Bridge', or 'Pass-Through' terms—they achieve a similar result. The exact steps vary by brand, so prepare to search within your admin interface and consult the manufacturer’s knowledge base. WiFi Router Help recommends having the main router perform DHCP and NAT, while the bridged device is configured with a static or passthrough route. If your device doesn’t offer a bridge mode, you may need to use an AP mode with careful IP planning. Always back up current settings before making changes so you can revert quickly if needed.
How bridging affects wireless networks and IP addressing
Enabling bridge mode changes how your devices get IP addresses. The bridged router’s DHCP server is typically disabled, and the main router becomes the only device issuing IPs. Depending on your configuration, you may be able to preserve the bridged device’s Wi‑Fi to extend coverage, or you might reconfigure it to operate purely as an access point with the same SSID. The main router’s firewall and security settings govern access to all devices, so you should adjust wireless channels to minimize interference. If you need separate guest networks, plan how guests will access them—often you’ll recreate a guest network on the main router rather than on the bridged unit. Planning ahead saves you from a “wired-won’t-connect” moment and reduces the need for future resets.
Safety considerations, backups, and rollback plans
Create a backup of current router settings before starting. Document the current IP address scheme and WAN settings, so you can revert if bridging doesn’t go as planned. Be prepared for a temporary network outage while you reboot devices. Ensure you have physical access to both routers to recover if the bridge stops working. Some users find it helpful to assign fixed IPs and reserve DHCP on the main router to avoid address conflicts. If you’re unsure about the changes, test with a single device first, and keep a plan to restore factory defaults on both devices if needed. WiFi Router Help emphasizes taking a careful, methodical approach to prevent lockouts and ensure ongoing access to admin interfaces.
Quick verification steps after enabling bridge mode
After enabling bridge mode on the secondary router, reboot both routers and connect a laptop or phone to the main router’s network. Check that devices obtain an IP address from the main router and that the internet is reachable. Verify that devices on the bridged device remain accessible via their static IPs or the main router’s DHCP mapping. If a device can’t access the internet, verify cabling, ensure the bridge device is on the correct LAN port, and confirm that the main router is still providing NAT. If you still can’t connect, revert to the original configuration using your saved backup and consider contacting your device’s support line or WiFi Router Help’s resources.
Tools & Materials
- Computer or mobile device with a web browser(Up-to-date browser; connected to the network you’ll bridge)
- Login credentials for the router’s admin interface(Admin username and password; consider saving in a secure password manager)
- Ethernet cable (optional but recommended)(Use a wired connection between routers to avoid wireless instability during setup)
- Main router with active DHCP/NAT(The router that will handle IPs and routing after bridging)
- Backup power source or unplug-and-replug plan(Keep in mind power outages can complicate bridging)

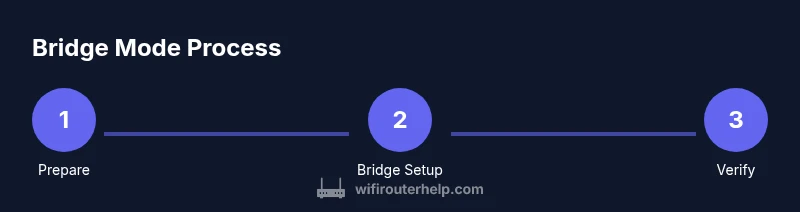

Steps
Estimated time: 30-45 minutes
- 1
Prepare and back up current settings
Before touching any settings, document the existing network setup and values: IP scheme, DHCP ranges, and NAT status. Create a backup of each router’s configuration if possible. This protects you from losing connectivity and makes rollback quick if things don’t work as expected.
Tip: Save a copy of current settings to a separate device or cloud storage. - 2
Choose which device will be the primary router
Decide which router will perform routing (DHCP/NAT) after bridging. The main router should provide Internet access and be the central point for IP management. The other router will become the bridge/AP.
Tip: Label devices to avoid mixing up roles during the process. - 3
Access the primary router’s admin interface
Log in to the main router’s web UI and verify the WAN connection is active. Confirm its DHCP server is enabled and note the IP address range it assigns. This will be the baseline for your bridged network.
Tip: Use a wired connection to access the admin interface when possible. - 4
Configure the bridge-mode device to operate as a bridge
On the secondary router, locate the Bridge or AP mode setting and select Bridge/Pass-Through. Disable its DHCP server so the primary router remains in charge of IP assignment.
Tip: If the option is named AP mode or Client Bridge, choose the closest equivalent to Bridge. - 5
Connect routers via LAN-to-LAN and set IPs thoughtfully
Connect a LAN port on the bridge-mode device to a LAN port on the primary router. Give the bridged device a static LAN IP in the same subnet as the primary router but outside its DHCP range.
Tip: Ensure the bridging device’s IP doesn’t clash with the main router’s IP pool. - 6
Return wireless settings to a coherent plan
Decide whether to keep the bridged router’s Wi‑Fi on as an additional access point or disable it to rely solely on the main router’s wireless. Align SSIDs and passwords for ease of use, or separate networks for guests as needed.
Tip: Consistency reduces roaming friction for devices. - 7
Reboot both routers and test connectivity
Power cycle both devices. Connect a test device to the main router’s network and confirm you can reach the Internet. Also test access to devices on the bridged network if applicable.
Tip: If anything fails, recheck LAN wiring and bridge configuration. - 8
Document and prepare an easy rollback plan
Record the new bridge configuration and store the backup, so you can revert quickly if you encounter issues. Restore factory defaults on both devices if you cannot recover with the backup.
Tip: Keep a clear rollback script handy.
People Also Ask
What is bridge mode and when should I use it?
Bridge mode turns a router into a pass-through device, letting another router handle routing and NAT. Use it when you want a single point of IP management or when you’re integrating multiple routers/mesh systems to avoid double NAT.
Bridge mode makes the second router act as a simple pass-through so the main router handles routing.
Will bridge mode disable wireless on the bridged device?
Often the bridged device’s DHCP and NAT are disabled, and its wireless can be used as an access point or turned off. Wireless behavior depends on the exact bridge configuration and whether you plan to use its Wi‑Fi.
Bridge mode usually disables routing features on the bridge but you can still use its Wi‑Fi if you configure it as an access point.
Can any router be bridged, including ISP gateways?
Most consumer routers can be bridged, but some ISP gateways have limited bridge options or require support from the ISP. Check the device manual and confirm compatibility before starting.
Most devices can bridge, but some ISP gateways may constrain the option; verify before you begin.
How do I revert if bridge mode doesn’t work as expected?
Keep a backup of the original settings and restore them if needed. Reboot both devices and reapply the previous configuration to regain your prior network state.
If it goes wrong, restore from your backup and revert to the original setup.
Will bridging improve network performance?
Bridging mainly reduces double NAT and simplifies routing. Performance may improve for certain apps (games/VPN) but overall speed depends on the primary router and cabling.
Bridge mode can fix routing quirks, but performance depends on your hardware and connection.
Should I update firmware before bridging?
Yes, ensure both routers run recent firmware to maximize stability and security during and after the bridging setup.
Update firmware to reduce compatibility issues.
Watch Video
What to Remember
- Plan network roles before changing firmware
- Disable DHCP on the bridged device to avoid conflicts
- Connect routers using LAN-to-LAN for most setups
- Verify by testing a wired and wireless client after bridging
- Keep a rollback plan and a backup handy
