How to Make a Router as Extender: A Complete Step-by-Step Guide
Learn to turn a spare router into a reliable wireless extender. This practical 2026 guide covers bridge/repeater modes, placement, security, and troubleshooting for better home WiFi coverage.
Turn a spare router into a wireless extender by enabling bridge or repeater mode, using the same SSID if you prefer, and placing it halfway between your main router and weak spots. You’ll need a power supply, an Ethernet cable for setup, and access to the router’s admin interface to start.
What turning a router into an extender means
Turning a router into an extender means reusing an existing device to extend your WiFi coverage by repeating or bridging signals from your main router. In practice, you’ll configure the spare unit as a bridge or repeater, then place it where it can receive a strong signal from the primary router and deliver it to farther corners of your home. According to WiFi Router Help, this approach is cost-effective and flexible, letting you optimize placement without buying a dedicated mesh system. The key idea is to ensure the extender uses the same network name and credentials (when appropriate) so devices roam smoothly, while keeping in mind potential reductions in maximum throughput due to shared bandwidth. This guide will walk you through methods, placement strategies, and practical tests to verify results in 2026.
Prerequisites and planning
Before you touch any settings, map your home layout and note where WiFi is weak. You’ll need a spare router with current firmware, a power adapter, and a usable Ethernet cable for initial setup. Decide whether you want the extender to broadcast the same SSID as your main network or a separate name; a single-SSID setup can simplify roaming but may confuse devices during transitions. Check compatibility: the spare router should support bridge or repeater mode, and align with your main router’s security (WPA2/WPA3) and password if you plan to reuse credentials. Keeping firmware up to date is a best practice advocated by WiFi Router Help to ensure security and stability.
Core approaches: Repeater, Bridge mode, WDS, and AP mode
There are several ways to extend coverage, each with trade-offs. Repeater mode mirrors the signal and can halve throughput but is simple to implement. Bridge mode connects the two routers at the network layer, often preserving more devices on the same subnet. WDS enables wireless distribution with compatibility caveats across brands. AP (access point) mode turns the spare router into a dedicated wireless access point wired back to the main router. Choose the approach that best matches your devices, performance needs, and whether you can run an Ethernet backhaul for optimal stability.
Placement strategies for best coverage
Position the extender roughly halfway between the main router and the area with weak signal, avoiding obstructions like thick walls, metal furniture, and large appliances. A higher elevation, such as on a shelf, generally improves reach. For multi-story homes, test on each level and consider moving the extender to a location with a slightly stronger signal from the main router to maximize roaming quality. Remember that interference from neighboring networks can affect performance, so try different channels if your extender allows manual channel selection.
Security and performance considerations
Security should stay aligned with your main network’s settings. Use WPA2 or WPA3 and ensure firmware is current. When using bridging or AP mode, disable duplicate NAT on the extender to prevent double-NAT issues that can cause connectivity problems. If your extender supports guest networks, consider segregating guest traffic from your primary devices to reduce risk. Performance wise, expect some throughput loss when using wireless repeaters, especially on the 2.4 GHz band.
Common pitfalls and troubleshooting tips
Common problems include IP address conflicts, misconfigured DHCP, and mismatched SSID/password settings. Always start by confirming the spare router is on a compatible firmware version and that you can access its admin page. If devices won’t roam, try a different SSID, or explicitly set the same one with a distinct channel on the extender. Keep both devices on the same subnet and avoid bridging across incompatible hardware. If your speeds are slow, relocate the extender or switch to a wired backhaul if feasible.
How to test and verify the extended network
After configuration, walk through the home with a mobile device to test signal strength and speeds in key rooms. Use a speed test app at multiple locations to confirm improvements and note any dead zones. If results are not satisfactory, adjust placement by a few feet and retry. Document changes so you can revert quickly if needed.
Authority and further reading
For deeper guidance on network best practices, external sources can provide context on security and architecture: • https://www.consumer.ftc.gov/articles/0022-wi-fi-security • https://www.fcc.gov/consumers/guides/internet-service-guide • https://www.cnet.com/how-to/how-to-extend-your-wi-fi-network/ This article also reflects guidance from the WiFi Router Help team on practical home-network optimization.
Tools & Materials
- Spare router(Must have admin access and be powered on)
- Ethernet cable (at least 3 ft)(For initial setup and backhaul when possible)
- Power supply(Adequate voltage and compatible plug)
- Computer or smartphone with web browser(To access the admin interface and run the setup wizard)
- Optional: Ethernet switch(If you need to connect several devices during setup)

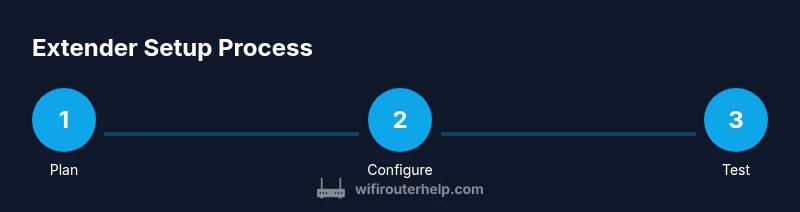

Steps
Estimated time: 45-60 minutes
- 1
Prepare the spare router
Perform a factory reset to avoid legacy settings, then connect it to power and to your computer with an Ethernet cable for initial configuration.
Tip: Factory reset ensures a clean slate and avoids IP conflicts with your main router. - 2
Access the extender’s admin interface
Open a web browser and enter the extender’s default IP address or hostname. Log in with the default credentials and begin the setup wizard.
Tip: If you can’t access the interface, verify network connection and reset again. - 3
Choose your extender mode
Select Bridge/Repeater/AP mode in the setup wizard and confirm compatibility with your main router.
Tip: Bridge/AP mode generally provides better stability than simple repeater in busy networks. - 4
Configure network name and security
Decide whether to reuse the same SSID and password or use a distinct name. Apply the same WPA2/WPA3 security settings as your main network.
Tip: If using the same SSID, ensure you are on a non-conflicting channel to promote smooth roaming. - 5
Disable DHCP on the extender
Turn off DHCP on the extender so the main router assigns IP addresses, avoiding conflicts.
Tip: If you must, set a reserved static IP for easier management and troubleshooting. - 6
Test and adjust placement
Place the extender in a location with strong signal from the main router and test coverage in high-traffic rooms; move if needed.
Tip: Use a mobile device to roam; if a room still lacks signal, try a few more feet closer to the router or higher.”
People Also Ask
Can I use any router as an extender?
Most routers can be configured to extend a network, but capabilities vary (bridge/repeater modes, WDS). Check the manual for compatibility and firmware options.
Most routers can extend a network, but check the manual for compatibility and firmware options.
What’s the difference between a repeater and a bridge?
A repeater rebroadcasts the existing signal, often with throughput loss. A bridge connects the two routers at the network level, usually preserving better performance where possible.
A repeater rebroadcasts the signal and can slow things down; a bridge connects two routers more directly for better performance.
Will an extender increase my internet speed?
An extender typically doesn’t increase your raw internet speed; it helps you reach farther areas but may reduce throughput due to wireless overhead. Using a wired backhaul or upgrading to a mesh system can improve performance.
Extenders help you reach farther areas but may reduce speed; using wired backhaul or mesh can improve performance.
Should I use the same SSID on the extender?
Using the same SSID can simplify roaming, but you may experience handoffs that feel jumpy in some layouts. A distinct SSID makes it easier to troubleshoot and pick the best signal.
Same SSID makes roaming seamless but can be jumpy; different SSIDs helps with troubleshooting.
What about DHCP and NAT with an extender?
If the extender is in bridge or AP mode, disable DHCP to avoid conflicts with the main router’s DHCP server. In some setups, a separate NAT may be required; follow your device’s guidance.
Disable DHCP on the extender when using bridge/AP mode to avoid conflicts with the main router.
Watch Video
What to Remember
- Plan extender placement before configuring hardware
- Choose an extender mode that matches your setup
- Test coverage in multiple rooms and adjust placement
- Keep firmware updated for security and stability
