DSL Router-Modem Combo: Setup and Optimization Guide
Learn how to choose, install, and optimize a router modem combo DSL for a simpler home network. This comprehensive guide covers compatibility, setup steps, performance tweaks, and essential security practices.
By the end, you will install and optimize a router modem combo DSL to simplify your home network. You’ll replace separate devices with a single unit, configure DSL connection, set up Wi‑Fi, and secure your network. According to WiFi Router Help, verify your device supports your DSL technology and your ISP settings before starting.
What is a DSL router-modem combo?
A DSL router-modem combo is a single device that combines a digital subscriber line (DSL) modem with a wireless router. It handles the phone-line modem signal and then distributes Wi‑Fi to your devices. This configuration reduces clutter, simplifies cabling, and often lowers upfront cost compared with buying separate units. The WiFi Router Help team notes that these devices excel for small homes and quick setups, but some models may offer fewer advanced features than high-end standalone gear. When evaluating options, check the supported DSL standard (ADSL, VDSL, or VDSL2), the claimed Wi‑Fi speed, and whether the device supports your provider’s authentication method. In 2026, many manufacturers ship compact, user-friendly combos with modern security options. Installation is usually straightforward, but be prepared to log in to the admin panel to adjust network name (SSID) and password.
Why choose a DSL modem-router combo?
A DSL modem-router combo offers a compact, integrated solution that can save space and simplify home networking. For many homeowners, the appeal is “set it up once and forget it” convenience, with fewer devices to power, connect, and troubleshoot. According to WiFi Router Help analysis, these devices help reduce clutter without sacrificing essential features like guest networks, parental controls, and basic QoS. However, consider that upgrading security or advanced features may require replacing the unit. If you pay attention to DSL standard support, WAN settings, and the device’s ability to handle PPPoE or DHCP, you’ll maximize reliability and performance in a typical household. As of 2026, the market continues to mature, and you’ll find compact options that deliver solid performance and streamlined setup.
How to choose the right DSL router-modem combo
Choosing the right model means aligning with your DSL service and home needs. Prioritize compatibility with your DSL standard (ADSL vs. VDSL), check the WAN interface and authentication method (PPPoE or DHCP) and look for reliable security options like WPA2/WPA3, firewall, and automatic updates. Account for the number of Ethernet ports, USB options, and whether the device supports bridge or modem-only mode. Also verify ISP compatibility, firmware update policies, and support for features you rely on (QoS, NAT, and firewall). With 2026’s broad market, there are many affordable options that still deliver solid reliability; always compare specs against your service plan.
Basic setup workflow for a DSL combo
A successful setup generally starts with verifying DSL compatibility and gathering login details. Connect the device to the DSL line, then power it and wait for initialization. Open the admin interface via the default IP address and login using the provided credentials. If your service uses PPPoE, enter your username and password exactly as provided by the ISP. Run the setup wizard to establish the WAN connection and choose your Wi‑Fi name and password. After the wizard completes, save the settings, reboot if prompted, and test both wired and wireless devices. Finally, check for firmware updates and enable features you want (guest network, QoS, firewall).
Optimizing performance and network security
Placement matters: position the unit centrally, elevated from the floor and away from thick walls or metal appliances for best coverage. Use the 5 GHz band for devices near the router and the 2.4 GHz band for longer reach, ensuring channel auto-selection is enabled or manually tuned to avoid interference. Enable a guest network and configure a strong admin password, firewall settings, and automatic firmware updates. Disable remote management unless you truly need it and consider enabling QoS to prioritize work devices or gaming consoles. Regularly test speeds from multiple rooms to identify dead zones and adjust placement or add extenders if necessary.
Troubleshooting and common pitfalls
If you lose internet after setup, verify the DSL line status, check that the device is authenticated with your ISP, and reboot. If issues persist, try a factory reset and re-run the setup wizard. Bridge mode should only be used if you intend to run a separate router with your own security features; enabling it can disable the device’s firewall. Finally, avoid using outdated firmware and check for updates regularly to reduce security risks.
Tools & Materials
- Active DSL service with an account(Ensure your service is active and you know the login method (PPPoE or DHCP).)
- DSL modem-router device(Confirm it supports your DSL standard (ADSL/VDSL) and your ISP.)
- Computer or mobile device for setup(Use either wired or wireless connection to access the admin panel.)
- Ethernet cable (Cat5e or better)(Helpful for a stable wired setup during configuration.)
- Web browser with admin access(Typically accessed via 192.168.0.1 or 192.168.1.1; check the manual.)
- ISP credentials (optional)(Have PPPoE username/password handy if your DSL uses PPPoE.)

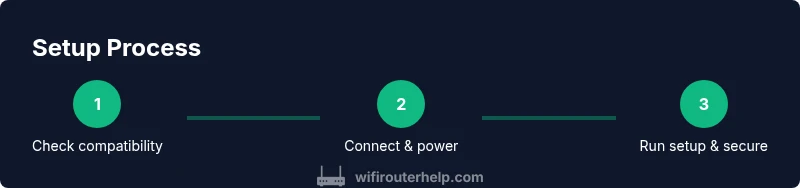

Steps
Estimated time: 30-45 minutes
- 1
Verify DSL compatibility
Confirm your service uses the DSL standard supported by the device (ADSL or VDSL) and that the plan does not require a special modem. This avoids a failed setup and wasted time.
Tip: Check your provider’s compatibility list or customer portal before purchasing. - 2
Connect the device to the DSL line and power
Plug the device into the phone line and connect the power supply. Wait for the lights to indicate a stable WAN and Wi‑Fi state before proceeding.
Tip: Use a wired Ethernet connection during initial setup for reliability. - 3
Access the admin interface
Open a browser and enter the default IP address. Log in with the username and password from the manual.
Tip: Change the default credentials immediately after logging in. - 4
Run the setup wizard and configure WAN
Follow the on-screen prompts to set the WAN type (PPPoE or DHCP) and establish an internet connection.
Tip: If PPPoE is required, enter the exact username and password provided by your ISP. - 5
Configure Wi‑Fi and security
Set a unique SSID, strong passphrase, and select WPA2/WPA3 security. Consider enabling a guest network and disabling WPS if available.
Tip: Use a different password for the admin interface than your Wi‑Fi password. - 6
Test and finalize
Test wired and wireless devices, run a speed test, and check for firmware updates. Save the configuration and reboot if prompted.
Tip: Document your settings or export a backup configuration when offered.
People Also Ask
What is a router-modem combo for DSL, and why should I consider one?
A router-modem combo is a single device that handles both the DSL connection and Wi‑Fi distribution. It reduces clutter and is easy to set up, making it attractive for smaller homes or users who want a quick, reliable setup. For more advanced features, a separate router might be preferred.
A single device handles both DSL and Wi‑Fi, simplifying setup. It’s great for fast, simple networks, but you may miss some advanced features.
Will a DSL modem-router combo work with my ISP?
Most major DSL providers support standard modems, but compatibility depends on your line type and service plan. Confirm whether PPPoE or DHCP is required and ensure the device supports your provider’s authentication method.
Most providers support standard modems; just verify the required authentication method.
Should I bridge a combo device to use my own router?
Bridge mode lets you employ your own router’s features, but it disables the combo’s firewall. Only use bridge mode if you need the extra control and you understand how to configure security.
Bridge mode uses your own router but disables the built-in firewall.
How do I secure a DSL modem-router combo?
Set a strong admin password, enable WPA2/WPA3, keep firmware current, disable remote management if not needed, and create a guest network for visitors.
Use strong passwords and current encryption; keep firmware updated.
What should I do if I can’t access the internet after setup?
Check physical connections, verify LED indicators, confirm PPPoE credentials if required, and reboot. If issues persist, contact your ISP for line diagnostics.
Check connections and PPPoE credentials, then reboot or contact ISP.
How often should I update the firmware on a DSL combo?
Check for updates monthly and apply them when available to maintain security and reliability.
Check monthly and install updates when released.
Watch Video
What to Remember
- Verify device DSL compatibility before buying
- Secure your admin and Wi‑Fi with strong passwords
- Position the unit centrally for best coverage
- Enable current encryption and firmware updates
- Use bridge mode only if you truly need it
