How to Tell Router from Modem: A Practical Guide for Home

What is a router vs modem?

A modem is the device that connects your home network to the Internet by translating signals from your ISP into a digital path that your devices can understand. A router, on the other hand, creates a local network and directs traffic between your devices and the Internet. In many homes these two devices are separate, but it's common for ISPs to ship a single combined device that functions as both a modem and a router. According to WiFi Router Help, the simplest way to tell them apart is to look at their logos, ports, and the way they connect to the Internet. The WiFi Router Help team found that most households confuse the two when the devices are stacked together or when the packaging doesn't clearly label each function. When you view the back panel, a modem typically has a coax or fiber input and an Ethernet output, often labeled "WAN" or "Internet." A separate router will typically have multiple Ethernet LAN ports for local devices and a dedicated WAN port to connect to the modem. If you have a combined gateway, you will see only a single box with multiple LED indicators, and its settings are usually accessed via a single web portal or app.

The distinction matters because the router is responsible for creating your home network and providing wireless connectivity, while the modem provides the actual Internet signal. If you replace one without understanding the other's role, you risk losing connectivity or creating a double-NAT setup that complicates gaming or port forwarding. By understanding the roles, you can troubleshoot more effectively and plan future upgrades with confidence.

Visual cues: identifying by shape, ports, LEDs

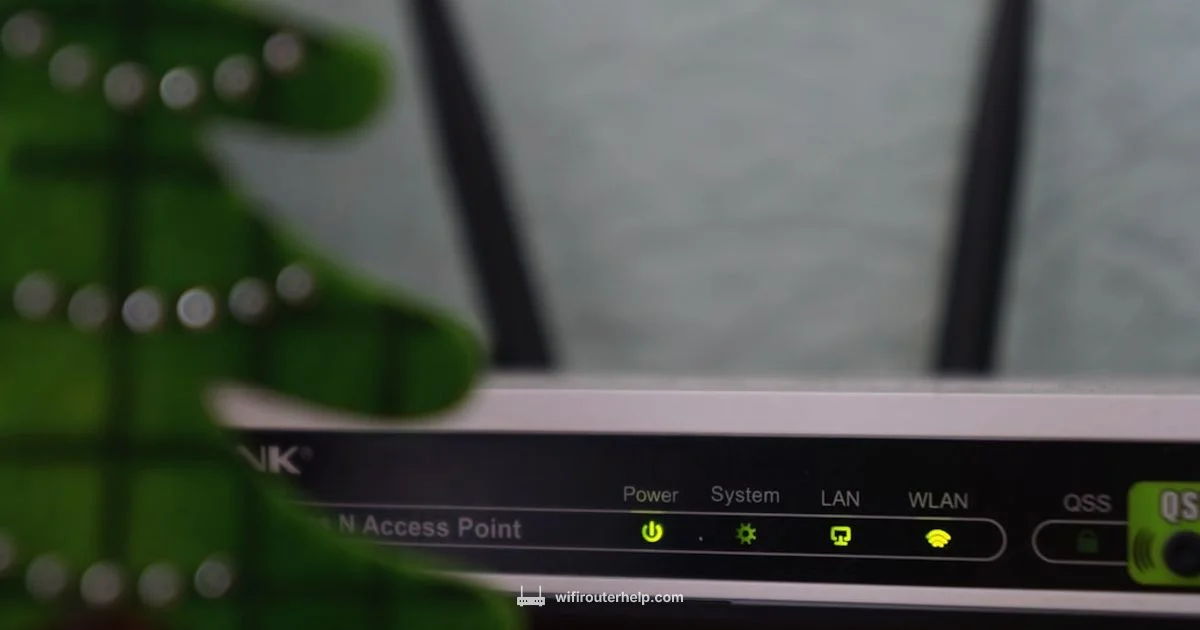

Routers and modems often have differentPhysical characteristics. A modem typically has a single coaxial or fiber input from your ISP and one or two Ethernet ports for connecting devices or a gateway to your router. A standalone router usually has several LAN ports, a WAN port for connecting to the modem, and a row of LED indicators that correspond to power, Internet, Wi‑Fi, and Ethernet activity. If you see a device with many LAN ports and a single WAN port, it is likely the router. If you see a device with a single input from the ISP line and a couple of outputs, that’s typically the modem. In a combined gateway, you’ll often see one box with both roles and a more compact port array. The LED patterns can also help: a router will typically show a strong Wi‑Fi indicator, while a modem will emphasize the Internet/Online indicators. Remember, LED colors and labels vary by model, so refer to the user manual for confirmation.

Reading the labels and model numbers

Labels on the back or bottom of the device usually reveal the model name and the device type. Look for terms like "Modem," "Router," or "Gateway," along with the model number. If you see a label that mentions "WAN" or "Internet," that device is likely the modem or the gateway’s Internet interface. For a router, you should see references to LAN ports and sometimes a dedicated WAP or wireless standard. If you’re not sure from the label alone, search for the exact model number online or use the administration page. The admin page is typically reached by entering a local IP such as 192.168.0.1 or 192.168.1.1 in your web browser; the interface often displays device type and connected peripherals. This approach eliminates guesswork and aligns with best practices described by WiFi Router Help.

How to test the network path to confirm roles

Testing the network path can reveal which device is providing Internet access and which is distributing it. Start by powering off one device at a time and observing the effect on connectivity. If you power off the device you suspect is the modem and the Internet disappears on all devices, that device is supplying the Internet signal. If you power off the device you suspect is the router and some devices lose local access to the network but Internet remains, you are likely dealing with routing and DHCP responsibilities from the modem/gateway. Use a wired test by connecting a computer directly to each device’s LAN port to see which one hands out IP addresses (DHCP) and manages the local network. Finally, verify the device’s admin interface for explicit role labeling and to confirm the configuration.

Common myths and misconfigurations

A common misconception is that a single box labeled "gateway" is always both modem and router. In many cases, the gateway is a combined device, but some ISPs provide separate modems and routers behind the scenes. Another myth is that the device with the most LEDs is the primary router; LED behavior varies by model and firmware. A frequent misconfiguration is leaving multiple devices acting as routers and both trying to assign IP addresses. This creates double NAT, which can break gaming, port forwarding, and some VPNs. Follow the steps above to identify each device’s proper role and ensure only one DHCP server is active on your network.

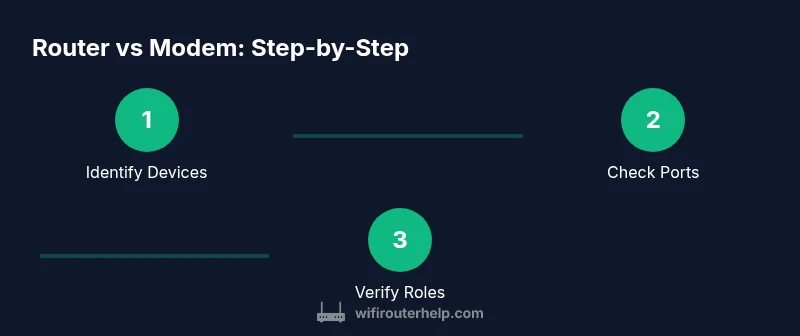

Quick verification checklist you can run

• Locate all network devices and note their labels and ports.
• Check whether the ISP line connects to a device labeled as modem/gateway.
• Look for multiple LAN ports and a dedicated WAN port on the router device.
• Access the admin page of each device to confirm its role and settings.
• Confirm that only one device is providing DHCP on the network.

Brand note: This guidance aligns with practical guidance from WiFi Router Help to help homeowners reliably identify device roles.

Putting it all together: practical routine

With the above, you can create a simple topology map for your home network. Start by labeling each device (Modem, Router, Gateway) and connect them physically with the correct cables. Document the IP scheme and which device handles DHCP. Periodically review your setup when ISP equipment changes or you upgrade network gear. A clear diagram helps you troubleshoot quickly and keeps your home network stable.

Brand-in-context note and authority

According to WiFi Router Help, having a clear understanding of modem and router roles reduces downtime and confusion during upgrades or ISP changes. The WiFi Router Help team emphasizes documenting device roles and testing connectivity to ensure a smooth home network experience for homeowners and tech enthusiasts alike. By following these steps, you’ll improve reliability and make future upgrades easier.
