Mesh Network Router Guide: Setup, Optimization, and Troubleshooting

What is a mesh network router?

According to WiFi Router Help, a mesh network router uses multiple nodes that work together to blanket your home with WiFi, eliminating dead zones and providing roaming capability as you move through rooms. The central device (gateway) connects to your modem, while satellite nodes extend coverage and maintain the same network name. The WiFi Router Help team found that proper placement and reliable backhaul choices often determine the overall experience more than the number of nodes installed. In practice, a mesh system should create a seamless network where your devices switch between nodes without manual intervention. This means your devices experience fewer dropouts, more stable speeds, and a simple management interface. For most homes, a mesh approach replaces a single-router setup that struggles with walls, stairs, or large open spaces.

Why choose a mesh network for home coverage?

A mesh network router is designed to deliver consistent WiFi across multi-story homes, long hallways, or large open-plan living spaces. With multiple nodes, you can strategically place devices to cover stairwells, home offices, backyards, and garages where conventional routers often fail. Roaming is automatic, so your phone or laptop stays connected to the strongest signal as you move. WiFi Router Help notes that the ability to scale by adding nodes makes mesh systems a future‑proof choice for growing households and smart homes, reducing the need to upgrade a single, high‑cost router.

In practice, the biggest returns come from planning for backhaul (wired or wireless) and ensuring nodes sit within a reasonable distance of each other to avoid signal gaps. Even with a budget mesh kit, you should notice more uniform speeds and better coverage compared with old router setups.

Core features to evaluate in a mesh system

When evaluating a mesh solution, focus on compatibility with your devices, backhaul options, and ease of management. Look for Wi‑Fi 6/6E capability for higher throughput, smart roaming, and a robust app ecosystem for network maps and parental controls. Consider how many nodes come in the kit and whether you can easily add satellites later without reconfiguring the entire network. Security features like WPA3, automatic firmware updates, and guest networks help protect your home. Also assess whether the system supports wired backhaul for maximal stability, particularly in homes with thick walls or long distances between floors. Finally, check energy efficiency and noise levels, especially in bedrooms where quiet operation matters.

Planning your mesh layout: topology and placement

Effective mesh layouts balance coverage with aesthetics and practicality. Start from a central location near the modem for the primary node, ideally elevated and free from obstructions. Place satellites in open spaces between rooms with line-of-sight if possible, avoiding metal appliances, mirrors, or dense concrete walls. A typical rule of thumb is to keep nodes within 30–40 feet (9–12 meters) of the previous node in open space; in practice, you may need to adjust based on building materials and furniture layout. Run a few quick tests after setup, using a simple speed test at multiple points to identify gaps. Keep a map of node locations for future expansion. WiFi Router Help emphasizes planning as the foundation of a reliable mesh network router experience.

Hardware considerations: nodes, backhaul, and ports

A mesh network router usually consists of a gateway unit and satellite nodes. The gateway should have a fast WAN port and several LAN ports for wired devices or a wired backhaul to satellites if supported. Satellite nodes vary by model but typically offer one or more gigabit Ethernet ports to connect to wired devices or to establish a backhaul link. If you expect heavy streaming or online gaming in multiple rooms, wired backhaul between nodes provides the strongest, most stable signal. Consider the physical footprint and power needs of each unit, and ensure your chosen model fits behind furniture or in a closet if needed. For future expansion, verify that you can add compatible satellites without major reconfiguration.

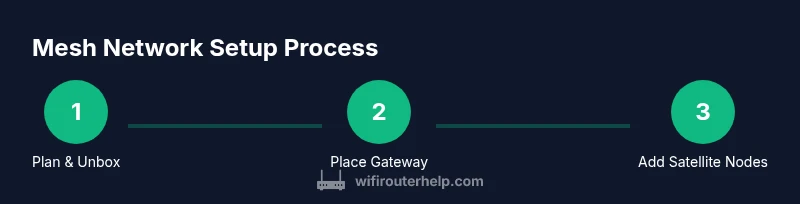

Setting up your mesh network: a practical checklist

1. Unbox and identify gateway vs satellites, then connect the gateway to the modem using the included Ethernet cable. 2) Power on the gateway and wait until the lights indicate normal operation. 3) Download and launch the manufacturer’s app to create your network name (SSID) and password. 4) Add satellite nodes one by one, following in-app prompts, and place them according to your plan. 5) If wired backhaul is available, connect nodes with Ethernet to maximize stability. 6) Run built-in tests to verify coverage and adjust placement as needed. 7) Enable security features and update firmware to the latest version. The result is a resilient mesh network with consistent roaming.

Configuration options: SSID, password, and security

For a seamless experience, you can choose to keep a single network name across all nodes or use a distinct SSID per band or node as needed. Strong, unique passwords and WPA3 encryption are essential. Disable WPS to reduce security risks and enable guest networks for visitors. Some systems offer automatic channel optimization, QoS settings, and device prioritization; adjust these to align with your household usage, such as giving gaming devices priority during peak hours. Finally, keep the admin account protected with a strong, unique password and two-factor authentication if available.

Advanced topics: QoS, parental controls, and guest networks

Quality of Service (QoS) lets you prioritize bandwidth for latency-sensitive activities like video calls or online gaming, which is especially useful in busy households. Parental controls can block inappropriate content, set screen-time limits, and schedule access for kids’ devices. Guest networks isolate visitors from your main network to protect your devices. If you have a modern ISP plan, ensure your mesh system supports the same standard (preferably Wi‑Fi 6/6E) to take full advantage of higher speeds. Some users also employ bridge mode in setups where a separate router handles advanced features; use this only if you understand how it changes IP addressing and NAT.

Troubleshooting common mesh network issues

Typical issues include dead spots after initial setup, satellites failing to join, or devices failing to roam smoothly between nodes. Start by verifying power and backhaul connections, ensuring satellites are within range of the gateway and each other. Reboot the gateway and satellites, then re-run the in-app setup to re-establish connections. If devices still drop off, check firmware versions and perform a manual update. Deploying a wired backhaul when possible usually resolves persistent instability.

Maintenance, updates, and future-proofing

Regular firmware updates keep the mesh network router secure and capable of supporting new features and devices. Schedule automatic updates if available, and periodically review device lists to remove unused satellites or old nodes. Keep your router’s admin credentials unique and consider enabling two-factor authentication. For future-proofing, choose a system capable of adding more satellites and supporting newer Wi‑Fi standards as devices get faster. Lastly, periodically run speed tests across different rooms to monitor performance and adjust placement if needed. WiFi Router Help emphasizes consistency and proactive maintenance as the keys to long-term reliability.

Real-world scenarios and benchmarks

In many homes, a two‑ or three‑node mesh network router configuration delivers coverage across multiple floors with reliable roaming and improved throughput over single‑router setups. In practice, performance depends on wall materials, device density, and backhaul options. For example, wired backhaul often yields higher sustained speeds in basements or far rooms, while wireless backhaul can work well in open layouts with fewer thick walls. Real-world benchmarks show more uniform latency and fewer connection drops when using a well-placed mesh system compared with traditional routers. The goal is to achieve consistent speeds, predictable roaming, and simple management for everyday use.
