Why Router Bits Burn Wood? A Troubleshooting Guide
Learn why router bits burn wood and how to fix it fast with sharpening, proper feed rates, and safe routing. Practical steps to prevent heat and scorch marks for woodworkers.
Why do router bits burn wood? The most common causes are excessive chip load, high spindle speed, dull bits, or cutting too deeply. Start with a slower feed and lower RPM, check the bit for sharpness, and ensure it is properly mounted. If smoke persists, reduce depth of cut and inspect the collet and bearings.
Why router bits burn wood: overview
According to WiFi Router Help, a well-run operation follows simple, methodical checks. The question why do router bits burn wood often comes down to heat from friction, especially when the bit is dull, the feed rate is too aggressive, or the cut is too deep. In this guide, you’ll learn practical checks and fixes to prevent scorching and ensure cleaner cuts across common woods and materials.
Common causes at a glance
WiFi Router Help analysis shows that heat buildup is typically the result of: a dull or damaged bit, too aggressive chip load, or cutting too deeply in a single pass. Dense hardwoods, poor bit geometry for the task, or an unsteady setup (loose collet, loose fence, or poor clamping) can also push heat into the wood and leave burn marks. Understanding these factors helps you pick the right bit and technique before you start.
Practical checks you can perform today
Begin with the simplest fixes and work toward more involved adjustments. Inspect the bit for nicks or dull edges and replace if needed. Confirm the bit is properly mounted and the collet is tight. Set the router to a conservative speed range for the bit size, and start with light passes. Clamp the workpiece securely and connect a dust extraction system to minimize heat from accumulated chips. If you still see scorching, proceed to adjust feed rate and depth gradually, testing on a scrap piece each time.
How to choose the right router bit for clean cuts
Selecting the right bit involves considering wood type, cut direction, and chip load. For softwoods, standard carbide upcut bits with moderate helix work well at mid speeds. For hardwoods, use lower feed rates and shallower passes with a sharp bit. Downcut bits can reduce tear-out, but heat management remains essential. Always match bit diameter and cutter length to the groove depth you intend to cut and ensure compatibility with your router’s collet.
Safety and maintenance to prevent overheating
Always wear eye and ear protection, ensure good ventilation, and use dust extraction. Regularly inspect bits for wear and replace promptly. Keep the router and collet area clean of chips, and periodically check the bearings and spindle runout. Avoid forcing the tool; if the bit struggles, reduce depth and feed rate and test on scrap.
Real-world tips and test cuts
Before committing to a final pass, run a test cut on scrap stock to confirm heat levels and edge quality. Document settings that work for each wood type and bit size so you can replicate successful results. If you notice persistent burning, re-evaluate bit selection, feed rate, and rotation speed, then gradually reintroduce a full-depth cut.
Steps
Estimated time: 30-60 minutes
- 1
Inspect the bit for wear
Power off the router, remove the bit, and inspect the edge for chips or dullness. If damaged, replace with a sharp, appropriate size. Compare with a known-good bit to confirm condition.
Tip: Use a proper bit gauge to assess sharpness. - 2
Check mounting and collet
Reinsert the bit and tighten the collet firmly. Spin by hand to ensure no wobble and verify the bit is fully seated.
Tip: A loose collet causes heat and vibration. - 3
Set safe speeds
Consult the bit manufacturer’s recommended RPM for your bit diameter and material. Start at a lower end of the range and test.
Tip: Never exceed the recommended RPM for a given bit. - 4
Adjust feed depth
Begin with shallow passes and increase gradually. If you see smoke, stop and back off depth and feed rate.
Tip: Multiple light passes beat a single deep cut. - 5
Check workholding and dust collection
Secure the workpiece and ensure a clear dust path to minimize heat from blocked chips. Clean the collet area before continuing.
Tip: Dust extraction reduces heat buildup. - 6
Test and document
Run a scrap test to verify heat and edge quality. Record the settings that worked for future reference.
Tip: Keep a notebook of successful parameters.
Diagnosis: Router bit smoking or burning wood during operation
Possible Causes
- highDull or damaged router bit
- highToo high feed rate for material or chip load
- mediumSpindle speed set too high for bit size
- mediumBit not properly mounted or loose collet
- lowPoor dust extraction or clogged vacuum
- lowRouting very dense hardwood with deep passes
Fixes
- easySharpen or replace the bit; check for chips and breakage
- easyReduce feed rate and depth of cut; test on scrap
- easyLower spindle speed to match bit size and material
- easyTighten the collet and ensure proper mounting
- easyImprove dust collection and ensure workpiece is firmly clamped
- mediumIf issues persist, inspect bearings and router spindle for play
People Also Ask
What causes router bits to burn wood?
Burning is typically caused by heat from friction due to a dull bit, too aggressive feed rate, or cutting too deeply in a single pass. Ensure sharp bits, moderate chip load, and proper setup to prevent scorching.
Burning usually comes from heat due to a dull bit or too-aggressive cuts. Use sharp bits and proper parameters.
Can dust buildup cause burning?
Yes. Clogged or restricted dust extraction increases friction and heat. Clean the router, bit, and dust ports before continuing.
Dust buildup can cause extra heat; clean the router and dust ports first.
How can I tell if a router bit is dull?
A dull bit leaves torn fibers and burn marks and requires more force. Inspect the edge and compare with a new bit on scrap.
Dull bits torn fibers and burn; check the edge on scrap.
Should I climb-cut or conventional-cut to avoid burning?
Both can work with proper settings, but burning is usually mitigated by adjusting speed, feed, and depth first before changing cutting direction.
Adjust speed and feed first; cutting direction is secondary.
What feed rate should I use for hardwoods?
Start at the manufacturer’s recommended rate for the bit and wood, then test on scrap and adjust gradually.
Start with the recommended rate and test on scrap to fine-tune.
When should I replace a router bit?
Replace if the edge is chipped, glazing occurs, or burning persists despite adjustments.
Replace it if it’s chipped or burns repeatedly.
Are coatings or carbide grades important for heat?
Carbide grade affects wear resistance; coatings may offer slight heat reduction, but technique matters most.
Carbide helps wear; technique matters more for heat.
Watch Video

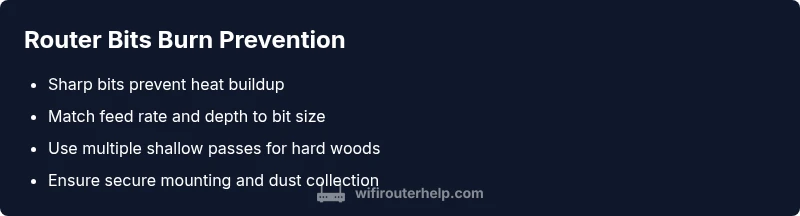

What to Remember
- Sharpen or replace dull bits before cutting.
- Match feed rate and depth to the bit and wood.
- Use dust extraction to reduce heat from chips.
- Test on scrap before final passes.
- Document successful settings for future projects.
