Best Router Settings for Gaming
Learn router settings to reduce latency and stabilize gaming: QoS, UPnP, MTU, channel selection, and wired vs wireless tweaks with practical steps for home networks.
The best router settings for gaming aim for low latency and steady throughput. Key steps include enabling QoS to prioritize gaming traffic, using a dedicated gaming profile or device-priority, enabling UPnP for automatic port mapping, setting a stable MTU (common defaults around 1500 but many games perform better with 1473–1492), and choosing the 5 GHz band on a clear channel. Disable unnecessary features that add overhead.
Why Gaming Demands Smart Router Settings
Online gaming demands predictable, low-latency performance. The WiFi Router Help team notes that even a fast broadband connection can feel sluggish if the router introduces jitter or buffering. In practice, the most noticeable differences come from how traffic is prioritized, how devices share bandwidth, and how the router handles queue management. A well-tuned router reduces the variability that makes games lag during intense moments. According to WiFi Router Help, begin with a clear baseline: check firmware, confirm security settings, and test changes with a few sample matches or timed latency tests. The goal is to move from general speed to reliable, consistent responsiveness across your gaming devices.
Core Settings That Impact Gaming Latency
In gaming, latency and jitter matter more than raw download speeds. The core levers you should tune are Quality of Service (QoS), device prioritization, and network address translation (NAT) behavior. Start by enabling QoS and create a dedicated gaming profile if your router supports it. Assign your primary gaming console or PC to the highest priority, then define a lower tier for background devices. Turn on UPnP for automatic port mapping so game servers can open necessary ports without manual configuration. Finally, adjust MTU to reduce packet fragmentation; many routers perform well with default values around 1500, but some titles benefit from a slightly lower MTU, tested with ping and traceroute.
Wireless Channel and Bandwidth Tweaks
Most competitive gaming happens on the 5 GHz band, which is typically less congested than 2.4 GHz. If your devices are far from the router or walls block the signal, you may still use 2.4 GHz for coverage but prefer 5 GHz for gaming when possible. Set channel width to 80 MHz for 5 GHz in busy homes only if devices reliably support it; otherwise use 40 MHz or 20 MHz to minimize interference. Use a Wi‑Fi analyzer app or your router’s built-in survey tool to pick the least congested channel. If you enable beamforming, ensure your devices support it and test the effect on latency, as some older devices can perform worse with certain features enabled.
Using UPnP, NAT, and Port Forwarding Effectively
Universal Plug and Play (UPnP) allows games to open ports automatically, reducing setup friction. While convenient, UPnP can introduce security risks if not monitored. If you’re cautious, keep UPnP enabled but review open ports periodically. NAT behavior matters: a strict NAT can restrict peer-to-peer connections and matchmaking. If your router offers a 'Open' or 'Moderate' NAT option, test gaming performance with both settings. When a game requires specific ports, you can add port-forward rules for TCP and UDP on those ports, but document every rule to avoid confusion later.
Wired vs Wireless: When to Run an Ethernet Cable
Wired Ethernet is the most consistent way to minimize latency and jitter in online games. If you can run a cable directly to your PC or console, you will often notice smoother input response and fewer disconnects. If wiring isn’t feasible, use a high-quality Ethernet over powerline adapter as a fallback, and keep gaming devices on the same floor as the router to improve signal. For wireless, maintain line of sight when possible and limit interference from cordless phones or neighbors’ networks by choosing a clean channel.
Real-World Testing and Fine-Tuning
After applying settings, test with real games and synthetic latency tests. Use ping tests to the game server, measure jitter, and notice if latency spikes occur during intense moments. WiFi Router Help suggests recording the data for at least 24 hours if possible to capture fluctuations. If you see buffering or inconsistent pings, revisit QoS rules, MTU, and 5 GHz channel choices. Adjust one variable at a time and re-test, so you can attribute improvements to specific changes.
Common Pitfalls and Quick Fixes
Don’t over-enable features that add overhead; for example, disable WMM if your devices don’t support it well, and avoid enabling multiple QoS schemes at once. Some routers offer 'gaming mode' or 'network boost' presets; test these with and without to ensure you’re not sacrificing stability for a nominal speed increase. If devices randomly lag, check for background downloads or peer-to-peer apps; pausing these tasks yields immediate improvement. Finally, ensure your router firmware is up to date to patch performance issues and security gaps.
Tools & Materials
- Router with admin access (login credentials)(Required to apply changes)
- Computer or smartphone connected to the router(For admin UI and tests)
- Ethernet cable (Cat 5e or better)(Useful for wired tests)
- WiFi analyzer app or built-in router survey tool(Helps pick best channels)
- Notebook or digital log for changes and test results(Track settings and outcomes)
- Speaker or headset for game audio tests(Optional for live testing)

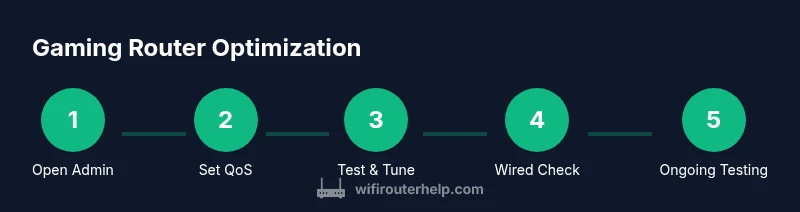

Steps
Estimated time: 60-90 minutes
- 1
Open router admin page
Launch a web browser or mobile app and log in to the router’s admin interface using administrator credentials. This is the gateway to applying QoS, NAT, and wireless adjustments. Do not use a guest account for changes to avoid permission issues.
Tip: Write down the current settings before changing anything so you can revert if needed. - 2
Verify baseline speeds and latency
From a wired or stable wireless device, perform a brief speed test and ping a well-known server to establish a baseline. Record ping, jitter, and packet loss for later comparison. Baseline data is essential for measuring improvement after changes.
Tip: Use consistent test conditions (same device, time of day) for valid comparisons. - 3
Enable QoS and create gaming priority
Turn on QoS in the router and create a dedicated rule for your gaming device or game traffic. Set this rule to the highest priority while giving background devices a lower tier. This helps ensure gaming packets get prioritized when the network is busy.
Tip: If your router supports a predefined 'gaming' profile, start there and customize as needed. - 4
Enable UPnP and review NAT behavior
Enable UPnP to allow automatic port mapping for games. Test performance with UPnP enabled and with it temporarily disabled to assess security/performance trade-offs. Check NAT type and switch between Open/Moderate if available and test matchmaking quality.
Tip: Document any ports you manually forward if UPnP is insufficient. - 5
Set a stable MTU value
MTU affects how large a single packet can be without fragmentation. Start with the default (around 1500) and test with a few pings to game servers. If you notice fragmentation or higher latency, try a slightly lower MTU in small increments (e.g., 1473).
Tip: Make only one MTU change at a time to clearly attribute improvements. - 6
Configure a dedicated 5 GHz gaming path
If you have multiple bands, assign gaming devices to the 5 GHz network. Ensure the 5 GHz SSID is separate if possible so QoS rules can target the exact device. Test connection stability after moving devices.
Tip: Avoid combining devices on dual-band with mixed capabilities if instability appears. - 7
Tune channel width and select a clean channel
On 5 GHz, set channel width to 80 MHz if devices support it and interference is low; otherwise use 40 MHz or 20 MHz. Use a WiFi analyzer to pick the least congested channel. Re-test latency after the channel switch.
Tip: Document the chosen channel and width for future reference. - 8
Test with a live game and adjust as needed
Play a few matches or run game-specific latency tests. Look for reduced ping and fewer spikes. If latency remains high, revisit QoS rules and channel settings, making one adjustment at a time.
Tip: Keep a log of results per change to correlate actions with improvements. - 9
If possible, connect gaming device via Ethernet
A direct wired connection minimizes jitter and packet loss. If wiring is impractical, optimize wireless as described and consider a high-quality powerline alternative only as a last resort.
Tip: Even partial network rewiring can yield meaningful gains in competitive games.
People Also Ask
What is the most important setting for gaming on a router?
Quality of Service (QoS) is typically the most impactful setting for gaming because it prioritizes gaming traffic over other network activity. Pair QoS with device-specific rules and a stable NAT configuration for best results.
QoS is usually the biggest game changer for lag reduction, especially when many devices share the network.
Should I enable UPnP for gaming?
UPnP simplifies port mapping for games, but it can introduce security risks if left unchecked. Enable it temporarily during gaming sessions and review open ports regularly.
UPnP helps games open necessary ports automatically, but monitor security risk and adjust as needed.
Is wired Ethernet always better for gaming than WiFi?
In most cases, yes. A wired Ethernet connection provides the most stable latency and the least jitter, which is especially important in competitive gaming.
Wired usually beats wireless for latency and stability, if you can run the cable.
How can I choose the best 5 GHz channel?
Use a WiFi analyzer or your router’s survey tool to identify the least congested 5 GHz channel. Then test performance after switching to that channel.
Find the least crowded 5 GHz channel with a tool, then test the impact on latency.
Does changing MTU help gaming?
MTU tuning can reduce fragmentation and improve latency in some setups. Start from the default (around 1500) and adjust cautiously while testing.
MTU tuning can help in some networks; adjust slowly and test.
How long should I test after changing router settings?
Test for at least several gaming sessions or 20-30 minutes per change to observe consistency and avoid random fluctuations.
Test each change across multiple sessions to ensure reliable results.
What if gaming lag persists after optimizations?
Revisit QoS rules, MTU, and channel width. Consider reducing background traffic and ensuring firmware is up to date.
If lag remains, recheck settings one at a time and update firmware.
Watch Video
What to Remember
- Prioritize QoS and gaming device rules to reduce latency
- Prefer 5 GHz and a clear channel for gaming traffic
- Use UPnP carefully and verify NAT type for matchmaking
- Wired connections offer the best stability when possible
- Test changes one at a time and log results for future tuning
