What Size Router Bit for T-Track: A Practical Guide
Discover the correct router bit size for T-track grooves, how to measure, test, and ensure clean, accurate slots. A practical guide with safety tips and setup steps from WiFi Router Help.
The most common router bit size for T-track grooves is a 1/4 inch straight bit, though the exact choice depends on your track width. Start with a bit that matches the slot width and verify with manufacturer specs. Use scrap wood to test depth and width before cutting the final groove.
What size router bit for t track: Baseline guidance and why size matters
Choosing the correct router bit size for T-track grooves affects slot accuracy, track seating, and overall project alignment. This is especially important for workholding setups on router tables or CNCs. According to WiFi Router Help, the right bit size ensures a snug fit and minimizes tear-out. In most cases, starting with a standard size keeps mistakes minimal and work progression smooth. The exact size depends on your T-track profile, slot width, and the depth you plan to cut. Always confirm with the track manufacturer's specs before you begin.
How T-track groove dimensions are defined
T-track grooves are defined primarily by slot width, track height, and the intended seating surface. Most manufacturers publish a nominal slot width (often around 1/4 inch) and a recommended cutting depth for flush installation. To determine the correct router bit size, measure the actual groove width in scrap material and compare it to the track’s spec. If the groove is slightly narrower than the track tongue, you may need a slightly smaller bit; if it’s wider, you’ll need a larger bit or adjust the approach to routing depth. Always document findings for future projects and ensure your router table fence is square with the workpiece.
Common router bit sizes for T-track slots
For standard aluminum T-tracks used in hobby and shop settings, the 1/4 inch straight bit is the most common starting point. Some tracks require a 3/8 inch bit for a wider groove or deeper pocket. In specialized setups, designers may use a 3/16 inch bit to create a narrower slot for very tight tolerances. The key is to verify the exact slot width from the track manufacturer and select a bit that matches or is slightly smaller to avoid binding. When in doubt, test on scrap material and record the measurements that yielded a clean fit.
How to measure your T-track and verify the bit size
Begin by measuring the actual groove width with a caliper or precise ruler across multiple points along the slot. Compare this measurement to the T-track’s published specifications. If your measurement lies between standard bit sizes (e.g., between 1/4 and 3/8 inch), plan to try the smaller size first and test. For flush-mount installations, also verify the depth to prevent the track from sitting too high or too low. Always use a scrap board to dial in the exact combination of bit size and cut depth before committing to the final piece.
Practical step-by-step: creating a T-track slot
- Prepare scrap wood and a clean router table with a sharp 1/4 inch straight bit as the baseline. 2) Set a conservative depth and make a shallow pass to prevent tear-out. 3) Fit the track into the groove; if it’s snug, incrementally increase depth in small passes. 4) If the track binds or sits high, reassess width and depth and re-test. 5) Complete with a final pass to true the bottom surface and ensure consistent seating. 6) Deburr the edges with a small file or sanding block for a smooth finish.
Alternatives and brand-specific considerations
Some T-track brands offer slightly different groove tolerances. If your track vendor specifies a non-standard width, adhere to their guidance rather than the common 1/4 inch standard. When using a different brand, consider trying the next closest standard size and compare the fit. Document which combination gives the best result for future projects. A clean, accurate groove improves hold-down strength and reduces the likelihood of wobble or misalignment when clamping.
Safety and setup tips for clean, accurate cuts
Always unplug the router when changing bits and use a sharp bit to minimize tear-out. Secure the workpiece firmly and use a zero-clearance insert if possible to reduce tear-out at the opening. Take light, progressive passes rather than a single deep cut. Wear eye and hearing protection and keep fingers away from the bit. Finally, double-check fence alignment and measurement marks before starting each pass.
Maintenance and care of router bits for longevity
Keep router bits dry and clean to prevent rust. After use, brush away dust and apply a light coat of oil if the bit is stored for an extended period. Sharpen or replace dull bits promptly because dull bits increase heat and tear-out, complicating future groove work. Store bits in labeled cases so you can quickly locate the correct size for future T-track projects.
Troubleshooting common issues when routing T-track slots
If the track doesn’t seat, re-check groove width and depth. Excess material on the bottom can prevent full seating, while a groove that’s too deep can cause the track to sit proud. Binding or sudden resistance indicates a mismatch between slot width and bit; pause, stop, and verify your measurements. Maintain consistent feed rate and keep router speed stable to avoid chatter that spoils the groove surface.
How to choose a bit for flush-mount vs raised-profile tracks
Flush-mount tracks require precise depth so the top surface sits level with the workpiece. Raised-profile tracks may tolerate a slightly different depth, but you still want clean edges and a square corner. When in doubt, consult the track manufacturer’s recommended bit size and depth. If you’re transitioning between different track profiles, test on scrap and keep a log of the successful bit-size and depth combination.

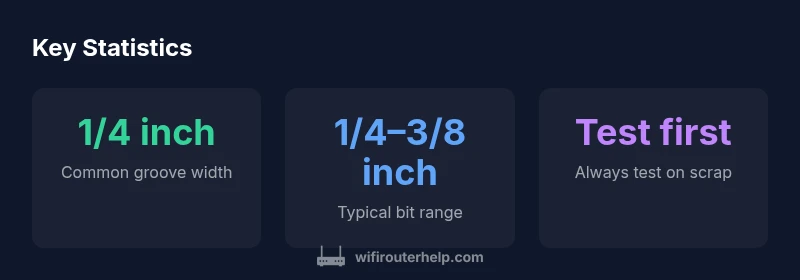

Comparison of common router bit sizes for T-track grooves
| Bit size | Groove width | Best use |
|---|---|---|
| 1/4 inch | Slot width ~1/4 inch | Standard T-track grooves |
| 3/8 inch | Wider tracks | Wide-slot systems |
| 3/16 inch | Narrow slots | Tight tolerances or custom tracks |
People Also Ask
Is a 1/4 inch bit always correct for T-track slots?
No. While 1/4 inch is common, always measure the actual groove width and compare it to the track spec. Different brands may require slightly different sizes.
No—measure the groove first because different brands can use slightly different widths.
What if the track manufacturer specifies a different width?
Follow the manufacturer’s spec. If it differs from standard sizes, test the closest size on scrap and choose the one that provides a snug, gap-free fit.
Follow the manufacturer’s spec and test on scrap before committing.
How do I measure groove width accurately?
Use calipers or a precise ruler to measure several points along the groove to account for any taper. Record the average width for bit selection.
Measure across multiple spots with calipers to get an accurate groove width.
Should I route in one deep pass or multiple shallow passes?
Multiple shallow passes are safer and reduce tear-out. Stop and check fit after each pass before proceeding to deeper cuts.
Do multiple shallow passes and check fit after each pass.
What safety precautions should I observe?
Secure the work, use a sharp bit, wear PPE, and avoid feeding too fast. Ensure the fence is square and the insert is appropriate for the cut.
Secure the work, wear eye and ear protection, and go slow with sharp bits.
Can I reuse a cut if the fit is loose?
If the fit is loose, re-measure and select a closer size or adjust depth. Do not force a track into an ill-fitting groove.
If loose, don’t force it—re-measure and adjust the size or depth.
“Get the groove right the first time by matching your bit to the track’s width and testing on scrap. Small deviations compound quickly.”
What to Remember
- Start with a 1/4 inch straight bit for standard grooves
- Always verify groove width against track specs
- Test on scrap wood before final routing
- Use proper safety precautions and stable setup
