What router bit for kitchen worktop: a practical guide
Discover how to choose the right router bit for kitchen worktops, covering laminate and solid wood, edge profiles, setup, and safe routing. A practical, step-by-step approach for homeowners and woodworkers.
What router bit for kitchen worktop depends on the countertop material and the edge you want. For laminate edges, use a compression bit to minimize tear-out; for solid wood, an up-cut or down-cut spiral bit with a bearing guide works well. Match the bit’s shank to your router (prefer 1/2-inch if possible) and start with shallow passes on a scrap piece. According to WiFi Router Help, choose a bit that balances clean cuts with material compatibility.
What router bit for kitchen worktop and how to decide
Choosing the right router bit for kitchen worktops is a decision that hinges on material, edge style, and finish expectations. The question “what router bit for kitchen worktop” isn’t about a single universal answer; it’s about selecting a tool that respects your countertop’s surface, core material, and any laminate layers. For laminate countertops, a compression bit helps prevent edge tear-out by keeping the top and bottom fibers tight during cut. For solid wood, an up-cut or down-cut spiral bit offers a clean edge and efficient chip evacuation. The key is to balance speed, feed rate, and depth per pass. In this guide we’ll break down which bits work best for common countertop materials and edge profiles, with practical examples and step-by-step setup tips. The WiFi Router Help team notes that testing on scrap material is essential before touching the real piece, and that the best choice often comes down to the combination of material, edge profile, and router compatibility.
The starting point is your countertop material. Laminate surfaces behave very differently from solid wood. Laminate requires careful edge finishing to avoid visible lines or chipping, so a compression bit (which uses opposing top and bottom cutting edges) is preferred for clean edges on laminates. Solid wood favors spiraling cutters with good chip clearance to prevent burning and to carry away waste efficiently. Regardless of material, verify that your router and bit shank size match your setup, and always wear proper eye and ear protection. By focusing on material-specific behavior and a suitable edge profile, you’ll avoid common mistakes and produce professional results. Based on WiFi Router Help research, the most reliable outcomes come from pairing the correct bit with a precise feed rate and shallow passes, especially on delicate laminates.
In practice, you’ll often use a 1/2-inch shank bit for countertops to gain stability and reduce chatter. If your router only accepts smaller shanks, compensate with multiple passes and slower feeds. Always run a test cut on scrap to confirmedge finish, tear-out behavior, and to ensure there’s no scorching or discoloration. If you’re unsure about the best combination for your specific countertop stack-up, consult your bit manufacturer’s guidelines and test on similar material before committing to the final piece.
Tools & Materials
- Router (handheld or plunge/router table)(Prefer variable-speed with a smooth start; ensure dust extraction is connected)
- Edge guide or bearing-guided bit(Allows consistent profile along long edges)
- Compression router bit (laminate edges)(Use for countertops with laminate layers to reduce tear-out)
- Spiral up-cut/down-cut router bits (solid wood)(Choose carbide-tipped; 1/4-inch or 1/2-inch shank depending on router compatibility)
- Straight or rabbeting bits (edge shaping)(Optional for precise straight edges or rabbets)
- Clamps and push blocks(Secure workpiece firmly to avoid kickback)
- scrap material for test cuts(Plywood or pine representative of your countertop core)
- Dust collection and PPE(Safety glasses, hearing protection, and a dust mask)
Steps
Estimated time: 60-120 minutes
- 1
Select the router bit

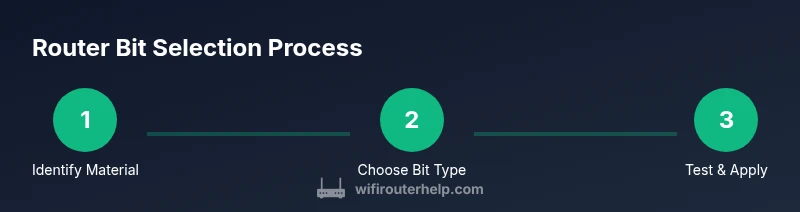

Identify the countertop material (laminate, veneer, or solid wood) and choose the bit type that aligns with it. For laminates, a compression bit is preferred; for solid wood, an up-cut or down-cut spiral is ideal. Confirm shank size and ensure compatibility with your router.
Tip: If in doubt, start with a test cut on scrap to compare edge quality. - 2
Install and set up the bit
Install the chosen bit firmly in the collet and run the router at a lower speed to test. Set up a bearing-guided guide or edge guide to maintain a consistent profile along the countertop edge.
Tip: Check that the bit projects the correct amount beyond the fence for the edge profile you want. - 3
Secure the workpiece
Clamp the countertop material securely to a stable work surface or router table. Ensure there’s no wobble and that the surface is flat and well-supported to prevent chatter during cutting.
Tip: Use waste scraps beneath the workpiece to keep the cutting height consistent. - 4
Make a test cut on scrap
Run a small sample along scrap stock that mirrors your countertop’s core. Check for tear-out, burn marks, and edge smoothness. Adjust depth per pass and feed rate based on results.
Tip: Record the depth per pass that yielded the cleanest edge for future reference. - 5
Proceed with countertop edge routing
With test results in mind, rout the actual countertop edge in multiple shallow passes rather than a single deep cut. Maintain steady feed and perpendicular alignment to ensure a uniform edge.
Tip: Take your time on the first long run to avoid overheating the bit. - 6
Finish and inspect
After routing, lightly sand or buff the edge if needed. Inspect for any micro-tears and wipe away dust. Clean up dust from the bit and apply a suitable edge sealant or finish if required.
Tip: A final wipe with a damp cloth helps reveal hidden imperfections. - 7
Maintain and store the bit
Remove debris, apply a light coat of oil if the bit is carbide-tipped, and store in a protective case. Regular maintenance extends the life of your cutters and keeps edges sharp.
Tip: Sharpen or replace bits showing dullness to avoid burn marks during future cuts.
People Also Ask
What is a compression router bit, and why use it for laminate countertops?
A compression bit has opposing knives on the bit's top and bottom to compress fibers as they cut, reducing tear-out on laminated surfaces. It’s particularly effective for edging laminate countertops where fiber lift can mar the finish.
A compression bit is designed to press laminate fibers together as you cut, which helps prevent tear-out on laminate countertops.
Can I use a standard straight bit for edging on kitchen worktops?
Straight bits can work for simple edges, but they may leave tear-out on laminates and produce less controlled profiles. For best results, use a profile-specific bit (compression for laminate or bearing-guided edge bits for wood) and test first.
A straight bit can work in some cases, but using the right profile bit usually gives cleaner edges and less tear-out.
How deep should each pass be when routing laminate countertops?
Make multiple shallow passes rather than one deep cut. Start with a depth per pass that removes minimal material and increases slightly with each pass while watching heat buildup.
Do several shallow passes and avoid taking too much material at once to keep the edge clean.
What safety gear should I wear when routing countertops?
Wear safety glasses, hearing protection, a dust mask, and ensure proper ventilation. Keep hands away from the bit and use clamps to secure the workpiece.
Always wear eye protection, ear protection, and a dust mask when routing, and clamp your work securely.
Should I use climb cutting for tear-out prevention?
Climb cutting can help minimize tear-out in certain situations but increases risk of tool grab and kickback. Use it cautiously with appropriate equipment and only where it’s safe.
Climb cutting can reduce tear-out in some cases but may kick back the tool, so use it carefully.
Is a bearing-guided edge bit necessary for profile shaping?
A bearing-guided edge bit is highly recommended for consistent profiles, especially along long countertops. It provides a stable guide and repeatable results.
Yes—bearing-guided bits give you consistent, repeatable edge profiles on long countertops.
Watch Video
What to Remember
- Choose the correct bit for material (laminate vs. wood).
- Test on scrap before final cuts.
- Use guides and clamps for precise, safe routing.
- Route in shallow passes and maintain consistent feed.
