What Router Bit for Juice Groove: A Practical Guide
Discover the best router bit to create a juice groove, with guidance on bit selection, setup, feed direction, passes, and finishing to achieve clean, drip-free results on cutting boards.
To create a clean juice groove, use a carbide-tipped straight router bit matched to your stock and groove width. A guided setup—via a bearing or edge guide—helps you start, stop, and repeat exactly. Start with shallow passes and test on scrap to avoid tear-out, then dial in depth and width for a precise, drip-free groove.
Understanding the juice groove and router bits
A juice groove is a shallow channel routed along the edge of a cutting board to collect juices and prevent spills from running over the counter. When choosing a router bit for this task, you’re balancing groove width, bottom quality, and the stability of the stock. The keyword what router bit for juice groove is common for hobbyists and professionals alike; the right bit makes the difference between a tidy groove and a ragged trench. In practice, most woodworkers use a carbide-tipped straight bit or a dedicated groove-cutting bit with a guide bearing. Carbide bits stay sharp longer on end grain or dense hardwoods, while high-speed steel bits can be more affordable for softer woods. If you regularly work with thin boards, you may prefer a small-diameter bit with a precision guide to minimize tear-out on entry and exit. Always ensure your router bit is sized to match your router’s shank (usually 1/4" or 1/2") and that your stock can be safely clamped and supported along the entire cut. The setup should minimize vibration and keep the bit aligned with your layout marks. A guided setup—via a bearing or edge guide—helps you start, stop, and repeat exactly.
Choosing the right router bit
Selecting the right router bit starts with understanding the groove you want and the material you’re working with. For juice grooves, a carbide-tipped straight bit is the workhorse choice due to its clean edge and long life, especially on dense hardwoods. The diameter controls the groove width; most hobbyists work in the 1/4" to 3/8" range. Shank size matters for stability: 1/4" shank bits are common for lighter boards, while 1/2" shanks handle tougher stock with less deflection. A guide bearing or a template edge guide lets you maintain consistent depth and alignment along the board’s edge. Spiral bits—either up-cut or down-cut—can be used for different tear-out outcomes, but for a clean bottom you’ll typically favor a straight bit or a light-upcut spiral with a bearing guide. Always ensure you have the correct bit rotation direction for your router and the intended cut. A compact, well-supported setup yields repeatable grooves and reduces tear-out on exit.
Preparation and setup considerations
Before cutting, prepare the stock by flattening the reference face, ensuring the board is square, and marking the groove location with precise layout lines. Use a stable work surface and clamps that minimize vibration. If you’re using a template guide, install it securely and test-fit the template against scrap blocks to confirm alignment. Double-check your bit’s diameter, shank size, and the router’s speed setting. Begin with a shallow test pass on scrap stock to verify depth progression and groove width. Make notes on how many passes you’ll need to reach the final depth, then switch to the actual workpiece. Finally, confirm that the groove will accommodate any additional materials or finishes you plan to apply to your cutting board.

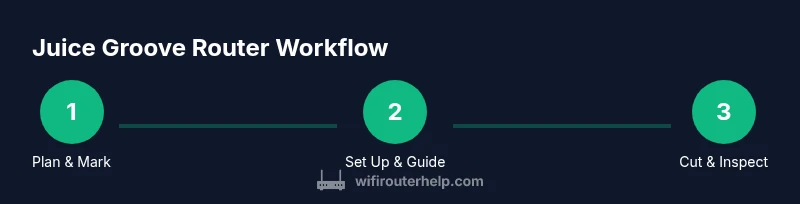

Step-by-step workflow overview
A well-planned workflow reduces waste and helps you achieve repeatable results. Start with a dry-run using scrap material to confirm alignment and groove dimensions. If you’re using a bearing-guided bit, ensure the bearing rolls smoothly along your guide. When you’re ready to cut, use measured, incremental passes—shallow first, then deeper as needed—so you don’t overload the bit or tear-out the wood. After each pass, inspect the cut for chatter, tear-out, or wandering. If you observe any deviation, stop, reset, and re-check your alignment before continuing. Finally, clean the groove sides with a light pass to remove dust and burn marks, then test-fit the board with its planned finish to verify the groove remains functional.
Safety and technique tips
Safety comes first when routing grooves that are critical to a cutting board’s function. Always unplug the router when changing bits or adjusting the guide. Wear eye protection and a dust mask, and keep both hands well clear of the bit path. Use clamps or a sturdy jig to hold the workpiece; never rely on your hand to prevent movement. Maintain a firm, controlled feed and avoid forcing the bit; let the bit do the work. If you’re new to juice grooves, practice on inexpensive scrap stock to build confidence before committing to your finished board. Keep your work area clean and organized to minimize distractions and potential mistakes.
Common mistakes and troubleshooting tips
Tear-out at the entry and exit is common when cutting across end grain or dense hardwoods. To minimize this, apply masking tape along the cut line before routing, and consider using a sharper bit or a support block under the entry edge. If the groove appears undersized, inspect the guide alignment and the bit’s diameter; small misalignments compound quickly over longer runs. Backing chips away at the groove’s bottom can indicate a dull bit or too aggressive a feed rate. Slow down, take lighter passes, and verify the bit is still sharp. Finally, avoid cutting more than your planned depth in a single pass; multiple shallow passes yield a cleaner bottom and straighter sides.
Finishing and maintenance of bits and boards
After routing, lightly sand the groove bottom with a tiny hand block or micro-sanding sponges to remove any edge burrs. Finish the edges of the board as desired; a clean, rounded edge near the groove can prevent chips from catching. Clean the bit with a soft brush to remove accumulated wood dust, and apply a drop of mineral oil to prevent rust on uncoated bits if you store them for longer periods. Regularly inspect the guide bearings and replace them if they show excessive wear. Proper storage, sharp bits, and a stable setup will prolong the life of your bits and improve future results.
Quick comparison: bit types for juice grooves
- Straight carbide-tipped bits (most common): clean bottom, stable cut, good longevity.
- Spiral up-cut bits: faster chip evacuation; may leave a smoother entry on soft woods but can lift fibers on hard woods.
- Template-guide systems: increase repeatability and alignment, especially for multiple identical grooves.
- Down-cut bits: reduce tear-out on the top surface when the groove starts near a surface with brittle fibers.
- Specialty groove bits: designed specifically for groove widths; may require a dedicated setup but offer precise, consistent results.
Tools & Materials
- Router with appropriate shank (1/4" or 1/2" compatible)(Ensure speed control and a stable base; use a router that can handle the bit diameter)
- Carbide-tipped straight router bit (width 1/4"–3/8", compatible with your stock)(Choose a bit with at least a 1/4" shank; longer flute length helps with deeper grooves)
- Bearing-guided bit or template-edge guide(Allows consistent alignment along the edge or template)
- Template or straightedge / edge guide(Use for precise location and repeatability)
- Clamps and a flat work surface(Keeps stock secure and reduces vibration)
- Safety gear (eye protection, dust mask or respirator)(Always protect yourself during routing)
- Measuring tools (ruler, caliper)(Check groove width and depth; ensure consistency)
- Push blocks or featherboards(Helps maintain gentle, controlled feed)
- Dust extraction or vacuum(Keeps the work area clean and improves visibility)
Steps
Estimated time: 45-75 minutes
- 1
Prepare stock and mark groove
Flatten the reference face, ensure board is square, and mark the groove location along the edge with precise layout lines. Use a sharp pencil or a marking knife for durability. Confirm the groove length will align with the board’s width and desired tea-jug capacity. This planning minimizes miscuts and ensures repeatable results.
Tip: Double-check both ends of the groove line; a misaligned start ruins the entire run. - 2
Install bit and guide
Install the carbide-tipped straight bit with the chosen shank size and attach the bearing guide or template edge guide. Make a practice cut on scrap to confirm the guide tracks true and the bit depth aligns with your target groove depth. Tighten all fasteners and verify there is no bit wobble.
Tip: Do a dry-run with a sacrificial scrap board to avoid damaging the actual piece. - 3
Set depth in incremental passes
Start with a shallow cut and move through several passes to reach the final depth. For each pass, measure the groove width and bottom cleanliness. A sequence of light passes minimizes tear-out and ensures a crisp bottom surface.
Tip: Limit each pass to a small fraction of the final depth to control tear-out. - 4
Rout with consistent feed
Feed the router steadily along the edge with even pressure. Do not rush; let the bit do the work. If you feel resistance, stop and inspect for alignment or dullness. Use a stop block to prevent accidental overcuts.
Tip: Maintain a balanced stance and keep hands clear of the spinning bit. - 5
Inspect and adjust
After the final pass, inspect the groove for even depth and width. If needed, perform a light final pass to clean up the bottom. Check that the groove will accept the intended finish and will hold liquid without leakage.
Tip: A scrap test board helps confirm real-world fit before final assembly. - 6
Finish and clean up
Lightly sand the groove bottom and edges to remove tool marks. Wipe away dust and oil the bit to prevent corrosion if storing. Confirm there are no burrs that could catch and weaken the finished piece.
Tip: Use very fine grit to avoid rounding the groove bottom.
People Also Ask
What router bit is best for juice grooves?
A carbide-tipped straight router bit is the standard choice for juice grooves due to its durability and clean bottom edge. Pair it with a guide bearing or template edge guide for consistent results.
A carbide straight bit with a guide is your best bet for clean, repeatable juice grooves.
Should I route from top to bottom or bottom to top?
For most juice grooves, route with the grain and maintain a conventional feed direction to reduce tear-out. Avoid climbing cuts on large boards unless you are experienced.
Use conventional routing with the grain for the best edge and fewer chatter issues.
How deep should the juice groove be?
Depth is typically shallow to accommodate the liquid without weakening the board. Start with a light depth and make multiple passes to reach the final depth, testing on scrap first.
Start shallow and build depth with multiple passes, testing on scrap.
Can I use a standard straight bit without a guide?
A guide is highly recommended for precision. Without one, you risk wandering and an uneven groove. A template edge guide can greatly improve repeatability.
Yes, but a guide keeps your groove straight and consistent.
What safety precautions should I take?
Wear eye protection and a dust mask, clamp stock securely, and unplug the router when changing bits. Keep hands away from the bit path at all times.
Protect yourself with goggles and a mask, clamp the piece, and never reach near the spinning bit.
How can I prevent tear-out on entry and exit?
Use masking tape along the cut line, choose the right bit type, and perform multiple shallow passes. A sharp bit and steady feed rate also help minimize tear-out.
Masking tape and careful passes help reduce tearing at the start and end of the groove.
Watch Video
What to Remember
- Choose a carbide-tipped straight bit for clean bottoms.
- Use guide bearings or templates for repeatable grooves.
- Plan with fixtures and scrap stock before cutting the final board.
- Progress with shallow passes to minimize tear-out and misalignment.
