Router with Coax Input: A Practical Guide for Home Networks

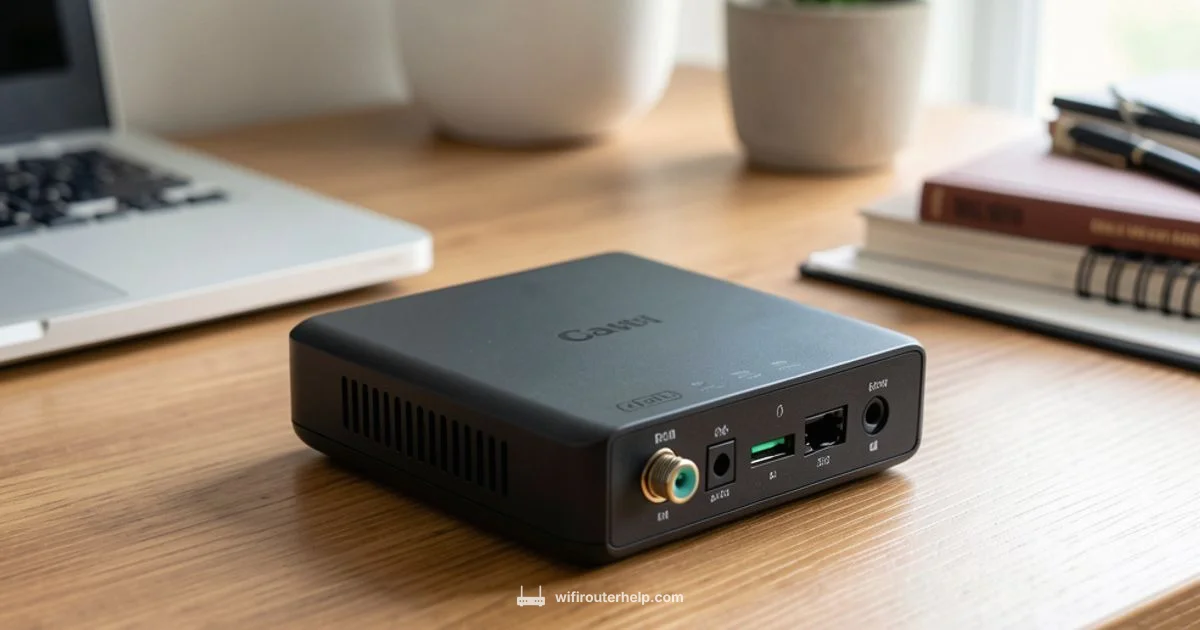

What is a router with coax input?

A router with coax input is a gateway device that uses a coaxial cable to connect to your Internet Service Provider. It typically combines a modem (often DOCSIS) and a router in a single box, delivering WiFi to your home and providing wired Ethernet as needed. In practice, you will have a coax outlet at the wall, a single cable running to the device, and you will manage your network settings through a web UI or mobile app. The term is widely used to describe devices that service households with cable broadband rather than fiber or DSL. According to WiFi Router Help, this arrangement can simplify installation for many homes, especially if your ISP provides a gateway device. When you buy a router with coax input, you are essentially buying a turnkey solution that handles both the connection to the internet and the distribution of that connection to your devices. This can be convenient for renters or homeowners who want minimal setup steps.

How coax input fits into home networks

Coax input networks use the same coaxial cables that deliver cable TV service. A gateway with coax input typically includes a modem to decode the cable signal and a router to distribute internet via WiFi and Ethernet. Some devices offer MoCA compatibility, allowing your home’s existing coax wiring to act as a high speed backhaul between rooms. This means you can place access points or devices in remote areas without laying new Ethernet cables. For many households, a coax input router acts as an all‑in‑one solution, reducing the number of devices and cables you need to manage. WiFi Router Help notes that MoCA backed backhaul can improve reliability in thick-wauge layouts where wireless signals struggle through walls.

Built in modem vs standalone router: What to expect

A coax input router can be either a true gateway with a built in modem or a router that relies on an external modem supplied by the ISP. Built in modem gateways simplify setup and reduce clutter, but upgrading the modem portion might require replacing the whole device in the future. Standalone routers paired with a separate modem offer more flexibility and can be upgraded incrementally, which is appealing for users who want to future‑proof or customize advanced features. In either case, expect the device to perform DHCP, NAT, Wi‑Fi, and firewall duties, with some models offering guest networks, parental controls, and QoS settings. The choice often comes down to cost, ISP compatibility, and how comfortable you are with swapping components later on.

Key features to look for in coax input routers

When evaluating a coax input router, prioritize these features:

• Built in DOCSIS modem with support for the latest standard (3.0 or 3.1) depending on your service.
• Dual band or tri‑band Wi‑Fi with strong coverage, ideally with at least 4–6 antennas in total.
• Gigabit Ethernet ports and the option for a trusted wired backhaul.
• MoCA support for coax backhaul or a dedicated MoCA adapter kit compatibility.
• Robust security features such as WPA3, automatic firmware updates, and a secure guest network.
• Manageable parental controls and QoS options for gaming or streaming.
• Good device cooling and a user friendly admin interface.

WiFi Router Help recommends confirming the ISP’s approved device list to avoid compatibility issues and surprise outages.

Setup steps for a coax input router

Setting up a coax input router can be straightforward if you follow these steps:

1. Verify service type with your ISP and confirm the device supports your plan.
2. Locate the wall coax outlet and connect the provided coax cable to the gateway’s coax port.
3. Connect the device to power and wait for the modem and router to boot. The status LEDs will indicate readiness.
4. Use the built in setup wizard or a web browser app to configure your admin credentials, Wi‑Fi name (SSID), and password.
5. Run the automatic firmware update if prompted and perform a manual check after installation.
6. Connect devices via Ethernet or Wi‑Fi and run a speed test to verify performance.
7. Enable security features, create a strong password, and configure any parental controls or QoS rules you need.

If your ISP requires a specific modem model, ensure it is supported by your coax input gateway to avoid service interruptions.

Performance optimization and MoCA considerations

Performance with coax input routers depends on multiple factors including the DOCSIS standard, Wi‑Fi technology, and backhaul quality. In homes with thick walls or many devices, enabling a dedicated backhaul via MoCA can dramatically improve stability and speeds in hard‑to‑reach rooms. If your device supports MoCA, enable it and ensure your coax network is properly bonded and free of splitters that degrade signal.

For Wi‑Fi optimization, position the router centrally, away from kitchens and metal appliances, and use a high‑quality mounting location. Consider enabling a guest network for visitors and turning on WPA3 security for maximum protection. Regular firmware updates help protect against new threats and can improve performance with newer features.

When to choose separate modem and router

A separate modem and router setup offers the most upgrade flexibility. If you anticipate needing more bandwidth in the future, or if you want to deploy a mesh system and keep your modem separate, this approach makes upgrading easier. It also allows you to replace only the router as your needs evolve, while leaving the modem connection intact. In homes with multi‑story layouts, you can install a primary router and additional access points or a mesh system for better coverage, while using a dedicated modem to maintain compatibility with ISPs that frequently update DOCSIS standards.

Troubleshooting common issues

If you encounter issues with a coax input router, start with basic checks:

• Confirm the coax cable is firmly connected and the outlet is active. Check the wall outlet’s signal strength using the admin interface or a dedicated app.
• Reboot the gateway and any connected devices to re‑establish sessions.
• Update firmware and verify that the hardware can support your current ISP plan.
• If Wi‑Fi is weak in certain rooms, move the router or add a MoCA adapter or mesh nodes to extend coverage.
• Disable any conflicting VPNs or firewalls that might block traffic during troubleshooting.

For persistent problems, contact your ISP to verify there is no service issue on their end and consult the device manual for advanced diagnostics.

Real world scenarios and a quick checklist

For households with cable Internet and mixed device usage, a coax input gateway offers a simple and reliable setup. If you stream 4K video, game online, and work from home, ensure your gateway can support multiple simultaneous connections and has QoS features to prioritize traffic. A quick checklist: confirm DOCSIS support, enable MoCA if available, secure the network with WPA3, test speeds in peak hours, and keep firmware updated regularly.
