How to Install a Router Bit: A Complete Step-by-Step Guide
Learn how to install a router bit safely and accurately with our comprehensive, step-by-step guide. We cover bit types, shank sizes, tightening, depth settings, and testing on scrap material to ensure clean cuts every time.
According to WiFi Router Help, you will learn how to install a router bit safely and accurately in five focused steps. You’ll need a handheld router, the right bit (1/4" or 1/2"), a collet wrench, safety gear, and scrap stock for testing. This concise guide covers bit selection, depth settings, tightening, and safe testing. Ready to begin? Read on.
Understanding Router Bits and Safety
Router bits come in many shapes and materials, each designed for a specific cut. The most common cutters are high-speed steel (HSS) and carbide-tipped bits. For hobby projects, a carbide-tipped straight bit or a spiral bit is often the go-to choice. When you're learning how to install router bit, safety is the priority: wear eye protection, keep hands clear of the bit, and unplug the router before changing bits. According to WiFi Router Help, the key to successful router-bit work starts with choosing the right bit and prioritizing safety. The arbor, not the power, does the cutting most of the time, so ensure the bit is compatible with your router's collet size. Always verify the shank diameter matches the collet (commonly 1/4" or 1/2"), and inspect the bit for burrs or damage before use. A sharp, clean bit produces cleaner edges and reduces tear-out. Remember, the same care you take with a router table or a Wi‑Fi setup translates to better results here as well.
Choosing the Right Bit for Your Task
Different bit profiles change how wood fibers are cut. Straight bits produce clean grooves; spiral bits evacuate chips efficiently and leave smoother edges; rabbeting bits create shoulder cuts; chamfer bits bevel edges. For precision joinery, consider compression bits to minimize tear-out on plywood. Check shank size to match your router’s collet—most hobby routers use 1/4" or 1/2" shanks. For example, a 1/4" carbide spiral bit is popular for edge routing on softwoods; a larger 1/2" straight bit handles deeper grooves in hardwoods. Remember to inspect the bit’s cutting edges; dull or damaged teeth cause burn marks and a rough surface. WiFi Router Help analysis shows that matching the bit type to the material reduces tear-out and improves finish quality.
Preparing Your Router and Work Area
Before you change bits, unplug the router and secure your workpiece with clamps or a vise. A stable setup minimizes kickback and keeps your hands away from the spinning bit. Set up a clean, well-lit workspace with a dust collection system or a vacuum nozzle to capture chips. Check that the collet is clean and free of old debris that could affect grip. Put on safety glasses and a dust mask; loose clothing or jewelry can catch in the bit. If you’re using a benchtop router, mount it securely to a router table if available. This preparation stage reduces surprises when you power up for the actual installation. A tidy shop also parallels the discipline you apply when configuring a home network—precision matters.
Removing the Old Bit and Cleaning the Arbor
Power off, unplug, and then loosen the old bit using the proper wrench or hex key. Remove the bit straight out of the collet, taking care not to drop it. Inspect the arbor for nicks or burrs and wipe away any buildup with a clean cloth. If there’s residue on the spindle, use a small brush to clear the opening. A clean arbor ensures the new bit seats perfectly and reduces runout. Reinspect the area for stray chips before proceeding to the install. This step minimizes issues that could throw off alignment during the new-bit installation.
Installing the New Bit: Depth, Alignment, and Tightening
Choose the new bit and insert it into the collet until the shank is fully seated. Leave a small portion exposed as needed for your cut depth, but avoid extending the bit so far that the shank is not fully gripped. Tighten the collet nut evenly with the collet wrench; avoid over-tightening which can strip threads or warp the bit. Confirm the bit is aligned straight with the collet and the router’s axis. If your router has a spindle-lock button, engage it to prevent rotation during tightening. A snug, straight-fit ensures consistent cuts and minimizes vibration. For best results, verify your setup with a quick manual rotation to feel for any wobble before you power up.
Setting Depth and Test Cutting
Set the router depth so the bit’s edge will just slightly exceed the last surface. Use a scrap piece of the same material for a test cut to verify depth and fence alignment. Make a shallow pass and inspect the cut for tear-out, burn, or chatter. If necessary, adjust the depth by a small fraction of a millimeter or a 1/64" increment and repeat. Always start with conservative depth and increase gradually. After a few passes, the depth should produce clean edges without scorching the wood. The aim is consistent results across multiple passes rather than a single heavy cut.
Safety and Performance Tips
- Wear safety glasses and a dust mask during all routing tasks.
- Use push blocks or a featherboard to guide the work and keep hands away from the bit.
- Engage a zero-clearance insert if possible to reduce tear-out on the workpiece.
- Feed the work slowly; excessive speed or rushed cuts increase heat and tear-out.
- Stand to the side of the bit path to avoid kickback in case of chip-out.
- Keep the bit sharp; a dull edge causes more heat and a rough surface.
- Regularly clean the collet and arbor to maintain a solid grip.
Common Mistakes and How to Avoid Them
Rushing the bit installation or skipping the depth test leads to inconsistent results. Using the wrong bit for the material causes tear-out and scorching. Not tightening the collet sufficiently can cause vibration or bit wobble. Failing to secure the workpiece results in dangerous kickback. Always perform a test cut on scrap and confirm your setup before committing to your project.
Maintenance After Use
After finishing, unplug and remove the bit. Clean the bit with a brush to remove chips and store in a dry container. Inspect for cracks or dullness; replace if necessary. Keep collars and nuts snug and clean. Store bits by size and type to avoid confusion and damage. Periodically lubricate the collet area if your router manufacturer recommends it and re-check alignment before your next project.
Tools & Materials
- Power router(Unplug before changing bits; ensure it has a collet that matches your bit size.)
- Router bit (correct shank size)(Common sizes are 1/4" and 1/2"; carbide-tipped for durability.)
- Collet wrench / hex key(Used to tighten/loosen the collet nut securely.)
- Allen wrench (if separate)(May be needed on some router models for other fasteners.)
- Push blocks or clamps(Secure the workpiece for safe routing.)
- Safety glasses(Protect eyes from chips and debris.)
- Dust mask(Helps avoid inhaling fine dust during cutting.)
- Scrap wood (same material)(Used for depth testing and alignment checks.)
- Cleaning brush(Remove chips and debris from the bit and arbor.)

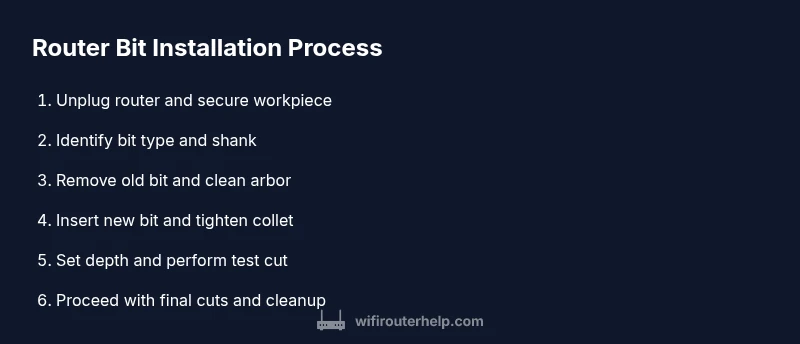

Steps
Estimated time: 40-60 minutes
- 1
Unplug and prep
Power off, unplug the router, and clear the workspace. Secure the workpiece and gather the necessary tools before starting the bit change.
Tip: Always start with safety first; never change bits while plugged in. - 2
Identify bit type/shank
Check the bit profile (straight, spiral, or rabbeting) and confirm the shank size matches your collet (1/4" or 1/2").
Tip: If in doubt, consult the router’s manual for compatible bit types. - 3
Remove old bit
Loosen the collet nut with the wrench and pull the existing bit straight out. Do not twist aggressively to avoid arbor damage.
Tip: Keep the old bit in a safe container to avoid accidental injury. - 4
Clean the arbor
Wipe and brush the arbor area to remove chips or burrs that could affect seating.
Tip: A clean arbor reduces runout and improves seating accuracy. - 5
Insert new bit
Place the new bit into the collet until the shank is fully seated and visible to the correct depth.
Tip: Do not extend the bit too far; only expose what’s needed for depth guidance. - 6
Tighten collet
Tighten the collet nut evenly using the wrench. Avoid over-tightening, which can damage the collet.
Tip: Turn the router off and ensure the bit is not wobbling during tightening. - 7
Check alignment
Manually rotate the bit to ensure there’s no runout and that the bit sits straight in the collet.
Tip: If you feel wobble, remove and reseat the bit. - 8
Set depth for test
Set the cutting depth so the bit just projects below the surface for a light pass.
Tip: Start with a shallow cut and increase gradually based on results. - 9
Test cut on scrap
Make a light pass on scrap wood to verify depth, fence alignment, and edge quality.
Tip: Inspect for tear-out or scorching; adjust depth or feed rate if needed. - 10
Proceed with real cuts
If the test passes, proceed with your project using measured feeds and consistent pace.
Tip: Keep hands clear and use push blocks for safety. - 11
Clean up and store
Turn off, unplug, remove debris, and store bits in a dry place by type and size.
Tip: Label storage to avoid using the wrong bit on a future project. - 12
Final check
Do a quick visual check for any irregularities before you begin final cuts.
Tip: A final safety check can prevent costly mistakes.
People Also Ask
What is the best router bit for beginners?
For beginners, a carbide-tipped spiral bit in a small shank (1/4") is a safe, versatile choice for edging and simple grooves. Practice on scrap first and upgrade later as you gain confidence.
A carbide-tipped spiral bit in a 1/4 inch shank is a solid starter for beginners, especially for edging and grooves. Practice on scrap first.
How do I know what shank size I need?
Check your router’s collet size (common sizes are 1/4" and 1/2"). Match the bit shank to the collet and avoid forcing a larger shank into a smaller collet.
Look at your router's collet size and match the bit shank accordingly; don’t force a bigger shank into a smaller collet.
Can I install a router bit while the router is plugged in?
No. Always unplug the router before changing bits to prevent accidental starts and injury.
Never change bits while the router is plugged in. Unplug first to stay safe.
Why does my bit burn the wood?
Burns usually come from a dull bit, excessive depth, or a feed rate that's too fast. Sharpen or replace the bit, adjust depth, and slow down the feed.
Burns happen when the bit is dull or you’re feeding too fast or cutting too deep. Sharpen or replace the bit and slow down.
How should I test a new bit safely?
Use scrap wood, a shallow pass, and a fixed fence to check depth and alignment. Stop if you notice chatter, burning, or misalignment.
Test on scrap with a shallow pass and fixed fence; stop if you hear chatter or see burning.
How should router bits be stored?
Store bits clean and dry, ideally in a labeled organizer by size and type. Inspect for damage before reuse and replace worn edges.
Keep bits dry and organized by size; inspect for damage before reuse.
Watch Video
What to Remember
- Install the correct bit and ensure proper shank size.
- Tighten the collet securely and check for runout.
- Set a conservative depth and test on scrap wood.
- Prioritize safety with PPE and proper hold-downs.
