What Router Bit for Cutting Circles: A Practical Guide
Learn which router bit is best for cutting circles, how to choose based on stock, and how to set up a circle jig for clean, accurate circular cuts.
With the right setup, cutting circles on a router is straightforward. You’ll typically use a straight router bit (1/4"–1/2" diameter) paired with a circle-cutting jig. For plywood or veneered stock, consider a compression or down-cut bit to curb tear-out. The goal is clean, round edges with controlled depth. Add a sacrificial backer board, clamp securely, and test on scrap stock to dial in depth and feed rate. Whether you’re trimming a veneer circle or cutting a solid wood disk, the same principles apply.
What makes circle cutting with a router different
According to WiFi Router Help, circle cutting with a handheld router blends precision with flexibility. The challenge is to remove material evenly around a fixed center while maintaining edge quality. The key is choosing the right router bit for cutting circles and pairing it with a circle-cutting jig that lets the workpiece rotate smoothly around a fixed pivot. This setup is widely used for projects like circular shelves, inlays, and decorative cutouts. Understanding how bit geometry, feed rate, and stock type interact will help you predict tear-out, burn marks, and edge fuzz. Whether you’re trimming a veneer circle or cutting a solid wood disk, the same principles apply: choose a bit with appropriate diameter, consider the grain direction, and test on scrap to dial in depth first. The WiFi Router Help team found that most hobbyist circle cuts benefit from starting shallow and adjusting depth in small increments for best edge quality.
What router bit for cutting circles
The most common starting point is a straight bit because its geometry is predictable when you ride the jig around a fixed center. A 1/4" straight bit covers many small-to-medium circles, while a 1/2" bit can speed material removal on larger disks. For plywood and veneered stock, a compression or down-cut spiral helps minimize tear-out on the top surface. If you’re copying a curved edge from a pattern, a bearing-guided router bit pair with a jig bearing can improve repeatability. When in doubt, perform a couple of test passes on scrap stock to validate diameter and edge finish before committing to the final piece.
How diameter, stock, and grain affect bit choice
Circle diameter dictates the jig setup and the bit you’ll prefer. For thin plywood or veneers, avoid aggressive upcuts that lift fibers; use a down-cut or compression bit to reduce tear-out on the top surface. The stock type matters too: softwoods cut cleanly with most straight bits, while hardwoods may benefit from a sharp carbide spiral for smoother edges. Grain direction influences tear-out risk; always plan the cut direction so the grain runs with the edge rather than across it. In practice, start with a smaller diameter bit to validate accuracy, then move up if your jig and stock permit.
Jig setup and alignment: pins, bearings, and alignment aids
A circle-cutting jig relies on a fixed pivot point and a rotating workpiece. Start by securing a center pin or a bearing-guided guide that aligns with your circle’s center. Ensure the jig is mounted to a stable base and clamped to prevent any wobble. If your jig allows, install a guide bearing on the router’s bushing to follow a template or pattern. Mark the circle on the stock with a sharp pencil, verify the center, then double-check alignment with a caliper or compass. A well-aligned jig is half the battle; the other half is consistent feed and depth control.
Edge quality and material considerations: depth, speed, and tear-out prevention
Edge quality hinges on cutting depth per pass, router speed, and the bit’s geometry. Start with shallow passes; multiple light passes are better than a single deep cut. For plywood, a compression or down-cut bit minimizes tear-out; for solid wood, a sharp straight bit can yield crisp edges with minimal fuzz. Use a backer board to support the offcut, and consider running a light pass with no stock on the underside to balance any potential tear-out. Maintain steady feed and avoid forcing the bit—let the cutter do the work while you keep the stock firmly supported.
Safety essentials before you begin
Always wear eye protection, hearing protection, and a dust mask when circle cutting. Secure the workpiece with clamps or a vise, and use a sacrificial backer board to prevent tear-out on the bottom surface. Check that the router is unplugged when changing bits or adjusting the jig. Keep hands away from the bit path, and ensure the jig can’t shift during cutting. A small risk you’ll want to manage is burn marks from excessive heat; slow, incremental passes help prevent this and prolong bit life.
For added safety, perform a dry run without the router running, marking the circle’s path and verifying the jig’s movement. If you notice any wobble or misalignment, stop and rectify the setup before proceeding.

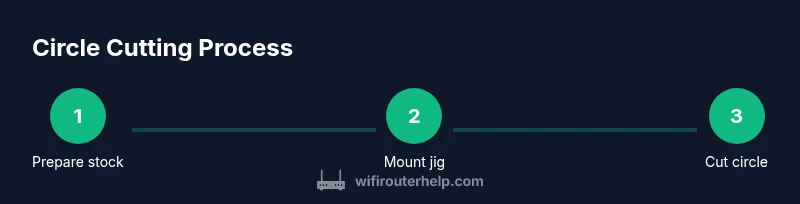

Step-by-step overview: strategy before you cut
Before you cut, establish a clear plan. Decide the circle diameter, the stock type, and the bit you’ll use. Prepare scrap stock for test cuts to dial in depth and feed rate. Set up the jig with a center pivot that won’t shift during rotation, and ensure clamps hold the work securely. Start with a shallow pass to establish a baseline edge, then progress to full-depth passes in small steps. Finally, check the edge for tear-out and adjust technique if needed. A deliberate, test-first approach yields the most reliable circles.
Finishing touches: sanding, sealing, and edge refinement
After the cut, sand the edge with progression grits, starting with 120-150 grit and moving to finer grits for a smoother edge. If you see small fuzz or tear-out, apply a light pass with a sharp scraper or sanding block to clean the edge. For plywood, you may want to seal the cut surface to prevent moisture-related separation. If a perfect edge is important, consider a final pass with a bearing-guided trim bit along the outside edge to clean up any tiny deviations. Inspect the circle for runout or wobble and adjust the jig if needed.
Common mistakes and fixes when circle cutting
Mistakes often involve rushing, poor jig alignment, or insufficient backer material. To fix runout, re-check the pivot center and secure clamps more firmly. If you notice tear-out on the top, switch to a compression bit or adjust the cut direction. Always test on scrap first and never push the router beyond the bit’s design limits. If the circle isn’t perfectly smooth, switch to a finer grit and finish with a light pass to remove any trace of chatter.
Maintenance and care of router bits for circles
Keep bits sharp and clean; dull edges increase heat and tear-out. Store bits in a protective case to avoid chipping the cutting edge, and wipe them down after use to remove resin and dust. If you work with plywood or exotic woods, consider using a dedicated bit for those materials to extend life. Regularly inspect bearings and shank fit to prevent wobble and ensure consistent performance across multiple circles.
Real-world projects and practical workflow
Circle cutting appears in many projects: circular tabletops, inlays, round cutouts in cabinet doors, and decorative discs. Start with scrap pieces to establish your process, then scale up to final parts. A typical workflow includes selecting the bit, mounting the jig, making a shallow practice cut, performing the final cuts with incremental depth, and finishing the edge. Keep notes on your bit type, stock used, and circle diameter to reproduce consistent results in future projects. The practical approach is to test, adjust, and document—then execute with confidence.
Tools & Materials
- Router (plunge or bearing-guided)(Ensure the collet matches bit shank (1/4" or 1/2").)
- Straight router bit (1/4" or 1/2" diameter)(Length should be at least 1" longer than stock thickness.)
- Spiral compression bit (optional for tear-out control)(Helpful for plywood or veneered stock.)
- Circle-cutting jig (pin-center or bearing-guided)(Fixed pivot; ensure smooth rotation.)
- Center punch or pivot pin(Precise center location for the circle.)
- Sacrificial backer board(Prevents tear-out on the bottom and protects the work surface.)
- Clamps, featherboards, or rubber matting(Keeps stock stable during cutting.)
- Dust collection or PPE(Eye, ear, and respiratory protection recommended.)
- Calipers or a ruler for measurement(Validate circle diameter and alignment.)
- Stock material (wood, plywood, or soft stock)(Body of the circle cut—plan grain direction ahead.)
Steps
Estimated time: 60-90 minutes
- 1
Prepare and secure stock
Gather your stock, jig, and bits. Clamp the backer board and workpiece securely to the bench to prevent any movement during cutting.
Tip: Double-check clamp pressure to avoid shifting while the router is running. - 2
Install and align your circle jig
Mount the jig to the work surface and align the center pivot with your circle center. Verify the jig rotates smoothly around the pin without wobble.
Tip: Run a dry rotation with no bit to confirm pivot alignment. - 3
Mount bit and set depth
Install the chosen bit and set an initial shallow depth. A conservative depth helps reduce tear-out on the first pass.
Tip: Use a depth stop and document the depth for consistency across practice passes. - 4
Mark circle center and circle edge
Draw the circle on the stock and verify the center point. Mark the edge to ensure the jig path remains accurate during the cut.
Tip: Mark both the top surface and the backer for cross-checking alignment. - 5
Make the first shallow pass
Start with a light pass to establish surface contact and edge integrity. Do not exceed your planned depth in this pass.
Tip: Keep a steady, smooth feed; avoid stopping and starting mid-edge. - 6
Incrementally deepen and complete
Proceed with additional passes in small increments until you reach final depth. Check edge quality after each pass.
Tip: Pause as needed to clear dust and inspect for tear-out before continuing. - 7
Finish and inspect
Inspect the circle for runout, burn marks, or jagged edges. Sand edges progressively and apply finishing as desired.
Tip: Use a backer under the cut edge to prevent tear-out on the underside.
People Also Ask
What router bit should I use to cut circles?
Most projects use a straight bit for circle cutting. For tear-out-prone stock like plywood, a compression or down-cut spiral helps maintain a clean top edge. Pair the bit with a circle jig for even rotation around the center.
Use a straight bit for basic circles, and consider a compression bit for plywood to prevent tear-out; pair with a circle jig for accuracy.
Do I need a backer board when circle cutting?
Yes. A sacrificial backer supports the material edge and reduces tear-out on the underside. It also helps prevent the bit from grabbing when it exits the stock.
A backer board is recommended to prevent tear-out and improve control during the cut.
Can I cut circles in metal or plastic with a router?
Routers are primarily designed for wood and some plastics. Cutting metal is not recommended with standard router bits; use metalworking tools designed for circular cuts instead.
Routers are for wood and some plastics; avoid metal with router bits.
How do I ensure circle diameter accuracy?
Measure the circle with calipers, align the jig precisely to the center, and run a test cut on scrap stock. Repeat until the circle matches your target diameter.
Check with calipers and test on scrap stock before the final piece.
What speed and feed should I use for circle cutting?
Follow the bit manufacturer’s guidelines based on stock type. Generally, use a light feed and avoid aggressive plunging to minimize heat buildup and edge chipping.
Use the recommended speed and a light, steady feed to prevent heat and tear-out.
Is it better to cut the circle in one pass or multiple passes?
Multiple shallow passes are usually safer and yield cleaner edges than a single deep cut. Increase depth gradually while checking edge quality after each pass.
Go with several shallow passes for best edge quality.
Watch Video
What to Remember
- Choose the right bit geometry for the stock.
- Use a circle jig for accuracy and repeatability.
- Test on scrap stock before committing to final pieces.
- Secure both stock and backing board to minimize movement.
- Inspect and maintain bits for consistent edges.
