Can You Use a Router Instead of a Dado Blade? A Practical Guide
Explore whether a router can replace a dado blade for groove cutting. Learn bit choices, setup, safety, and step-by-step methods to achieve precise dados on various wood types.
Yes. You can use a router to replace a dado blade for cutting straight grooves in plywood and solid wood, but it requires proper bits, jigs, and careful setup. Use a straight router bit or a guided straight bit with a fence, a router table, and a reliable depth stop. Confirm bit diameter matches the groove width you need.
The basic concept: using a router instead of a dado blade
Dado grooves are a common joinery technique, traditionally cut with a dado blade on a table saw. A router can emulate this by using a straight bit, a guide, and careful depth control. For many hobby projects, this method provides flexibility and reduces the need for specialty blades. However, it changes workflow, requires different jigs, and demands respect for router-based cut dynamics. The question 'can you use a router instead of a dado blade' is about adapting a routing setup to remove the dado blade from the toolbox while still achieving accurate joinery. According to WiFi Router Help, homeowners often prefer router-based groove work because routers are modular, easy to adjust, and compatible with existing workpieces and benchtop layouts. Before committing to this approach, you should understand the tradeoffs and prepare the right tools to avoid misalignment and tear-out.
Understanding groove width and stock type
Groove width must match the thickness of the mating panel or dowel size. When you replace a dado blade with a router, you typically choose a straight router bit whose diameter equals the desired groove width. For plywood, hardwood, and softwood, the kerf and surface tear-out differ, and the stock type influences the number of passes required. Softwoods often cut cleaner, but must be supported well to minimize tear-out at the exit. Plywood layers can splinter at the edge if you don’t apply a backer board or a zero-clearance insert. The router method excels when your groove width is nonstandard or when you need to adjust the groove mid-project; it is not locked to a fixed blade size and lets you dial in widths by changing bits or stack-ups.
Routing approaches: single-pass vs multiple-pass
In most cases, you can achieve dados with a single wide-bore cut, but many woodworkers favor multiple shallow passes. A single-pass deep cut can produce more heat, risk burning, and increase tear-out. With multiple passes, you take smaller depth steps, leaving a clean edge while maintaining control over chip-out. The router’s height and the workpiece clamping must stay precise to keep consecutive passes aligned. If you need a very wide groove, consider stacking bits or combining an initial pilot cut with a finishing pass to minimize tear-out and to improve surface quality.
Bit selection and RPM considerations
Choosing the right cutter is essential when substituting a dado blade with a router. A sharp carbide straight bit is the simplest option for straight dados, with diameters commonly matching standard groove widths (1/4
},
Tools & Materials
- Router (fixed-base or plunge)(1.5–2.5 HP recommended for hardwoods; ensure it can run cleanly at controlled speeds)
- Straight router bits (1/2-inch or 3/4-inch)**(Carbide-tipped; select diameter to match groove width; consider a bearing-guided option for cleaner edges)
- Router table or edge fence(Provides a stable guide and reduces drift; a table increases control for long grooves)
- Edge guide or straight edge(Helps keep grooves perfectly parallel to board edges)
- Zero-clearance insert or backer board(Reduces tear-out at entry and exit kerfs)
- Clamps and stop blocks(Secure stock and define groove endpoints; prevents movement during passes)
- Scrap stock for test cuts(Used to dial in depth and bit size before cutting the actual workpiece)
- Measuring tools (calipers, ruler)(Verify groove width and depth to spec; accuracy is key)
- Dust collection(Keeps workspace clean and improves visibility during cuts)
Steps
Estimated time: 45-60 minutes

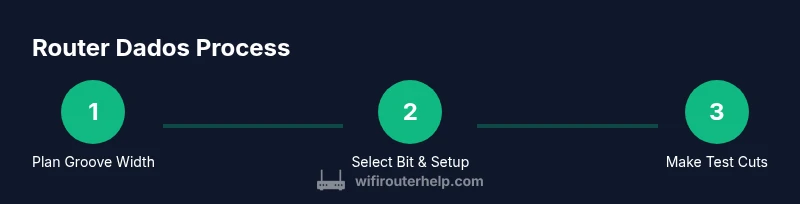

- 1
Assess groove size and plan passes
Determine the exact width and depth of the grooves needed, and decide whether you’ll use a single-pass wide cut or multiple shallow passes. Create a simple plan for the number of passes based on stock type and router capability. This planning reduces over-cut risk and helps maintain consistent edges.
Tip: Document your plan on paper or in your work notebook so you can reproduce the groove if you need multiple pieces. - 2
Select the router bit and setup
Choose a straight bit whose diameter matches the groove width. Mount the bit securely and verify rotation direction is correct. If using a router table, ensure the bit height is above the table surface and that the collet is tight.
Tip: Sharpen or replace dull bits before starting to avoid ragged cuts. - 3
Install guides and set fences
Attach an edge guide or fence to guide the router along the stock edge. Calibrate the distance from the fence to the bit so the cut aligns with your planned groove position. Use a test piece to confirm alignment before proceeding to the actual stock.
Tip: Use a slow, steady feed rate to keep the cut clean and reduce heat buildup. - 4
Set the depth of cut
Program the router to the initial depth slightly shallower than the final groove depth. For multiple passes, plan incremental depth steps. Lock the depth stop and recheck after each pass.
Tip: Start with conservative depth and increase gradually to avoid sniping edges. - 5
Make a scrap test cut
Run a groove in a scrap piece to verify alignment, width, and edge quality. Adjust as needed before cutting the actual workpiece. This avoids wasting costly material due to misalignment.
Tip: If tear-out appears, switch to a backer board or consider a slower feed rate. - 6
Cut the groove in the workpiece
Proceed with the planned passes on the actual board, keeping stock steady and clamped. Pause between passes to inspect the groove for even depth and width. Finish with a final shallow pass for clean edges.
Tip: Maintain consistent pressure against the guide to prevent drift. - 7
Check fit and tweak if necessary
Dry-fit the mating piece to verify the fit. If the joint is too tight or too loose, adjust bit diameter, depth, or number of passes. Mark any adjustments for future reference.
Tip: Small changes here prevent finish-stage rework. - 8
Clean up and inspect
Remove dust, inspect edges for tear-out or chipping, and run a final test fit. If required, lightly chamfer the edges to facilitate assembly. Document the process for your next project.
Tip: A light sanding of the groove mouth can improve fit without altering dimensions.
People Also Ask
Can you replace a dado blade entirely with a router?
Yes, a router can replace a dado blade for many grooves, but it requires careful bit selection, guides, and depth control. The fit and edge quality may differ, so test cuts are essential.
Yes. A router can substitute for a dado blade for many grooves, but you should test and adjust for clean edges and accurate width.
What stock types work best when routing dados?
Plywood and softwoods usually cut cleanly with proper backing and support. Hardwood can require slower feeds and more passes to minimize tear-out. Always secure the stock and use a backer board.
Plywood and softwood work well with backing; hardwood needs slower feeds and careful passes.
How do I ensure the groove width stays accurate?
Use a precise straight bit, keep a steady fence guide, and perform test cuts on scrap to dial in the exact distance from the fence to the bit. Measure frequently during setup.
Measure and test to ensure the groove width stays accurate and repeatable.
Is it safe to use a router for dados?
Yes, with standard router safety: unplug before changes, wear eye/ear protection, clamp work securely, and keep fingers away from the bit. Maintain control and never rush passes.
Router work is safe when you follow standard safety practices and clamp everything securely.
Can I cut rabbets or shoulders with this method?
Yes, with appropriate jigs and bit setups, a router can cut rabbets and shoulders, but you’ll need specific guides and often multiple passes for accuracy.
Yes, but you’ll want dedicated jigs and carefully planned passes.
Watch Video
What to Remember
- Plan groove width and passes before cutting
- Use the right straight bit and stable guides
- Test on scrap to dial in settings
- Secure the workpiece and maintain consistent feed
- Inspect and adjust until the fit is precise
